Flexi-Beam Plus Sports Flooring System - Sprung Area Elastic Sports Floor

Verified by manufacturer 4 months ago

DYNAMIK Sports Flooring Third party certifications:
  • FSC

    FSC

    Certificate type

Sprung area elastic sports floor that can be packed and levelled to take out variations in the subfloor, thus removing the need for a levelling screed. Ideal for both sport and non-sports activities.

Jump to:
BOS
+44 (0)117 301 5120 Website

Application

Suited to both sport and non-sporting activities.

Description

A sprung area elastic sports floor that can be packed and levelled to take out variations in the subfloor, thus removing the need for a levelling screed. With a range of solid synthetic finishes, it is ideal for both sport and non-sporting activities.


Features and benefits:

  • 25-year warranty.
  • Sport England compliant.
  • Packed and levelled construction.
  • Meets the requirements of EN 14904.
  • Suited to both sport and non-sport activities.
  • Underfloor heating compatible.
  • Durable and easy to maintain.
  • Low maintenance costs.
  • It incorporates elastic beams that support a counter floor and load distribution panel to accommodate a range of solid synthetic finishes including Sport Vinyl, Sport Linoleum, Sport Polyurethane and Sport Rubber.
  • The structure of the Flexi-Beam Plus system allows for underfloor heating and insulation to be incorporated between the beams.

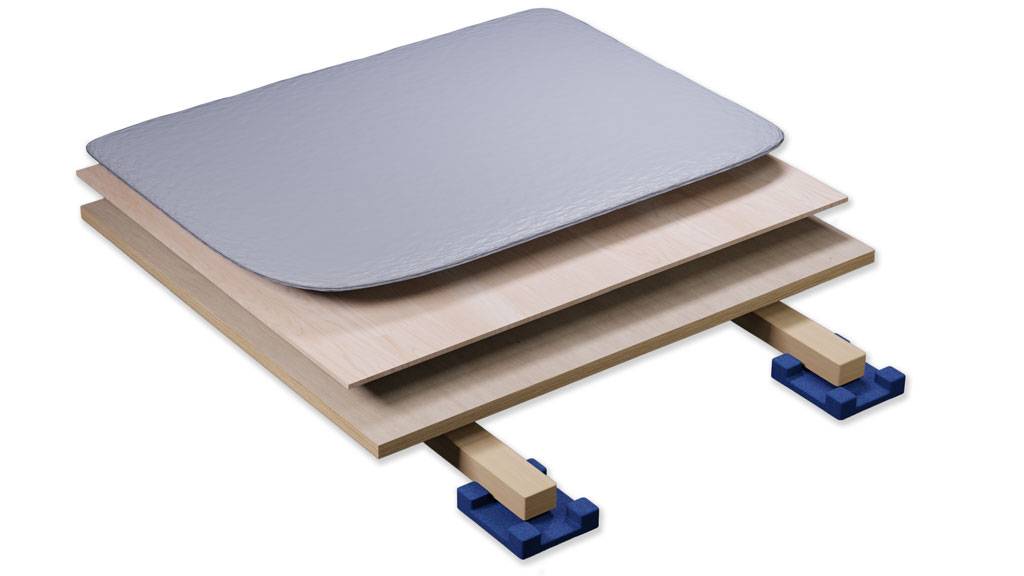

System includes:

  • Playing surface (as specified).
  • 6 mm load distribution board- plywood.
  • 18 mm counter floor - plywood.
  • 24 mm elastic Flexi-beam - plywood.
  • 27 mm elastic Flexi-beam - plywood.
  • 10 mm sports cradle. Thickness of cradles/ beams can vary dependent on void depth up to 100 mm. For a greater void than 100 mm, cradle-base packers can be used.
  • Levelling shims (to suit void).
  • 61 mm minimum construction height (excluding levelling shims and playing surface).
  • 58 mm minimum construction height (excluding levelling shims and playing surface).


Related products:

  • Can be used in conjunction with DYNAMIK's Acoustic Sports Wall Panel and Solid Sports Wall Panel products (each specified separately).

General information

Color

-

Manufacturer guidance

Range of playing surface colours available.

Material

Vinyl

Guidance for specification option:

Solid sport vinyl.

Plywood

Linoleum

Guidance for specification option:

Sport linoleum.

Polyurethane

Guidance for specification option:

Sport polyurethane.

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Rubber sports cradle.

Width

mm

Guidance for specification option:

Rubber sports cradle.

Height

6 mm

Guidance for specification option:

Load distribution panel.

10 mm

Guidance for specification option:

Rubber sports cradle.

18 mm

Guidance for specification option:

Counter Floor (T+G Modular panel).

24 mm

Guidance for specification option:

Flexi-Beam.

58 mm

Guidance for specification option:

Minimum construction height (excluding levelling shims and playing surface).

Show more

Manufacturer guidance

Thickness.

Warranty description

25 year

Guidance for specification option:

For the sprung undercarriage.

Ten year

Guidance for specification option:

For the playing surface.

Uniclass

Ss_30_20_90_95 Wood block flooring systemsPrimary

CAWS

M50/20 Sheeting

M50/150 Sheeting

K11/295 Floating floor system

K21/140 Battened wood laminate flooring

K21/111 Wood floating floor

K21/130 Battened wood floating floor

Specification data - Wood block flooring systems

System accessories

None.

Apparatus covers/ frames.

Damp proof membrane.

Giant Carpet Tile Floor Protection.

Hockey skirting.

Movement/ expansion joints.

Solid skirting.

Sports line marking.

Ventilated skirting.

Vapour control layer

Visqueen polyethylene sheet.

Board type

Synthetic playing surface.

Flooring jointing

Dependant on chosen type.

Standards

Certified to EN 14904: Class A3; Class A4.

Ball rebound

≥90%.

Slip resistance

80–110.

Rolling load

<1500 N.

Sustainability data

Country of material origin

United Kingdom

Material

Vinyl

Guidance for specification option:

Solid sport vinyl.

Plywood

Linoleum

Guidance for specification option:

Sport linoleum.

Polyurethane

Guidance for specification option:

Sport polyurethane.
