Verified by manufacturer 4 days ago

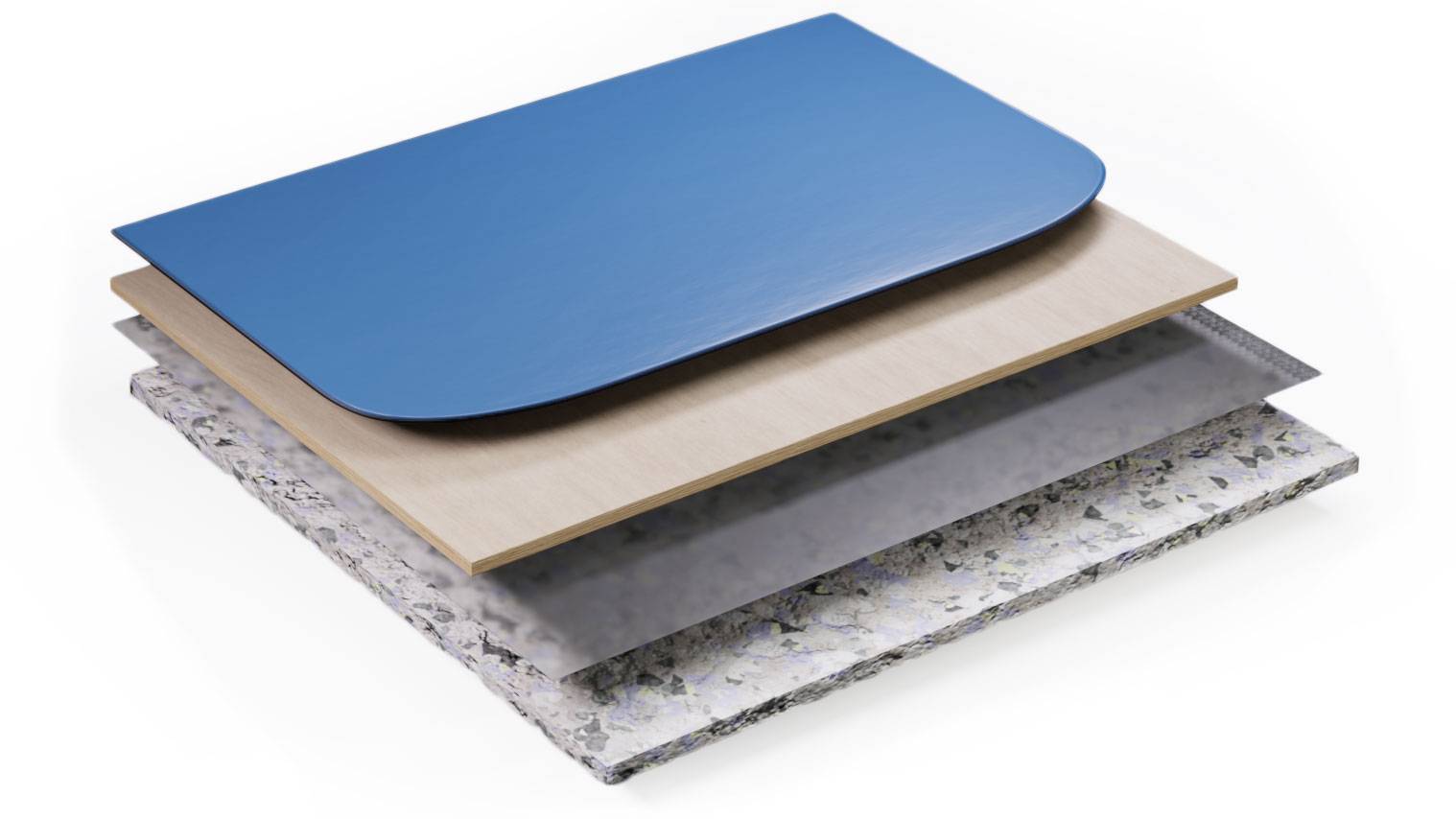

Ultra low profile sprung area elastic sports floor.
The product is designed to be installed onto a level SR1 screed (±3 mm over 2 m) to accommodate a variety of solid synthetic playing surfaces including Sport Vinyl, Sport Linoleum, Sport Polyurethane and Sport Rubber.
Features and benefits:
System includes:
Related products:
Color | Manufacturer guidanceRange of colours available, consult manufacturer for details. |
Finish | Manufacturer guidance
|
Material | Foam Guidance for specification option: Elastic foam comfort layer. Plywood Guidance for specification option: Interlocking birch plywood panel system finished in a solid synthetic playing surface. |
Shape | Rectangle |
Height | 0.03 mm Guidance for specification option: Noise reduction layer. 2 mm Guidance for specification option: Interlocking plywood panel system. 10 mm Guidance for specification option: Comfort based foam elastic layer. 22.03 mm Guidance for specification option: Minimum construction height (excluding playing surface). Manufacturer guidanceThickness. |
Warranty description | 25 year Guidance for specification option: For the sprung undercarriage. Ten year Guidance for specification option: For the playing surface. |
Uniclass | |
CAWS | M50/20 Sheeting M50/150 Sheeting K11/295 Floating floor system K21/140 Battened wood laminate flooring K21/111 Wood floating floor K21/130 Battened wood floating floor M12/10 Resin flooring M12/110 Resin flooring |
Classification data | |
System accessories | None. Apparatus covers/ frames. Damp proof membrane. Giant Carpet Tile floor protection. Hockey skirting. Movement/ expansion joints. Solid skirting. Sports line marking. Ventilated skirting. |
Subfloor Preparation layer | Floating system. |
Underlay | Foam Elastic Comfort Later. |
Board type | Birch Plywood finished in a choice of solid synthetic playing surfaces. |
Flooring jointing | Tongue and groove. |
Standards | Certified to EN 14904: Class A3 and A4 Area Elastic. |
Ball rebound | ≥90%. |
Slip resistance | 80–110. |
Rolling load | <1500 N. |
Finishes | Sport Linoleum. Sport Polyurethane. Sport Rubber. Sport Vinyl. |
Country of material origin | United Kingdom |
Material | Foam Guidance for specification option: Elastic foam comfort layer. Plywood Guidance for specification option: Interlocking birch plywood panel system finished in a solid synthetic playing surface. |
