Verified by manufacturer 3 months ago
9 x 2.5 mm

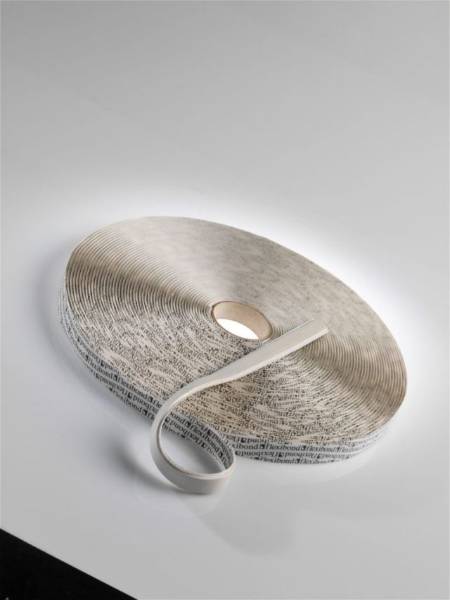

A butyl glazing strip used for installing double glazed units, laminated glass and single glass into windows and doors in exterior and interior situations.
A load-bearing security glazing strip used for installing double glazed units, laminated glass and single glass into windows and doors in exterior and interior situations. Combining good performance, durability, security and ease of use with a neat and an instantly over paintable finish.
Features and benefits:
Approvals:
Color | Black White Guidance for specification option: Off-white. Other Guidance for specification option: Mahogany. |
Material | Butyl |
Uniclass | |
CAWS | L40/530 Internal tape glazing L40/90 Internal tape glazing |
Product range |
Core | |
Material | Butyl. |
Size | 9 x 2.5 mm (19 m) x 24 reels. |
Colour | Mahogany.Off-white. |
Standard | In accordance with BS 8000-7, BS 6375, BS 7950. |
Adhesion | Excellent (to glass, primed or base stained wood, and steel). |
Compression component | Compression to seal: Positive compression; Force to compress by 20%: 1.1 kg/cm². |
Density | 1.6 g/cm³. |
Elongation at break | >250%. |
Movement | ±10% (accommodation). |
Moisture vapour transmission rate | 0.25 g/m²/24hr/mm. |
Shrinkage | <1%. |
TensileStrength | 1.4 kg/cm². |
ThermalConductivity | 0.436 W/m·K at +10°C. |
Application temperature range | +5 to +30°C. |
Service temperature range | -40 to +70°C. |
UV resistance | Excellent. |
