FloSet29

Verified by manufacturer 5 months ago

FloSet29 DN15

FLOCONTROL LTD Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Statement of compliance

    Certificate type

Fully BSRIA BG 29/21 compliant FCU PICV Valve Set with FMD and flush/drain points in flow & return.

Jump to:
+44 1282 564425 Website

Application

Fan Coil Units. Small Terminal Units.

Description

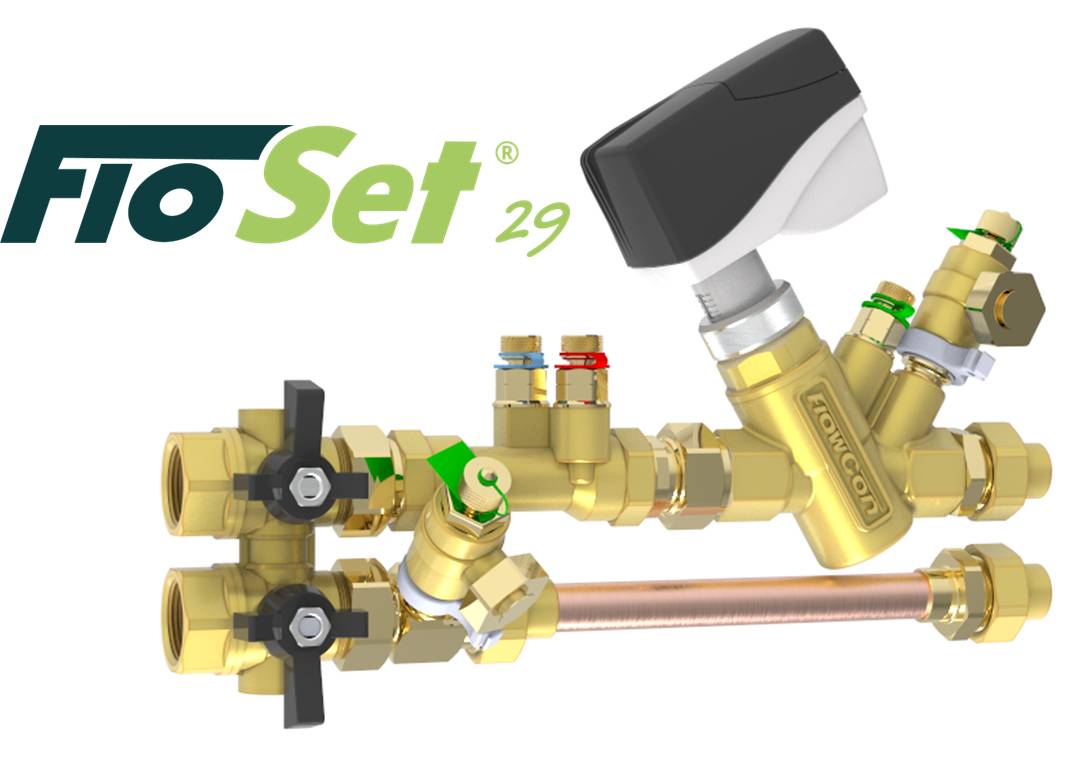

A compact pre-assembled FCU PICV Valve Set to mount directly onto fan coil units from any manufacturer. PICV Valve Arrangements available with a variety of system connections and features including strainers, automatic air vents, flushing valves and drain, fully compliant with BRSRIA BG29/21.

All FCU PICV Valve Set arrangements are built and tested in the UK. The pre-assembled FCU PICV Valve Set increases the efficiency and reduces complexity on-site. The PICV Valve Set from FloControl is available through most UK Fan Coil Manufacturers or directly from FloControl.

The PICV Valve Arrangement includes the innovative 3 in 1 FlowCon PICV and actuator, designed to use full stroke control with 41 maximum flow rate settings per valve type, altogether covering flow rates from 0.00482 – 0.736 l/s, suitable for heating and cooling applications [-20°C to +120°C].


Features and benefits:

  • Flushing By-Pass assembly on 40 mm centres to fit over extended drip tray.
  • Vertically or horizontally configured.
  • Blank cap for flushing through the assembly.
  • PT Plug & Combined PT Plug & Drain on PICV to aide system balancing.
  • Removable PICV Insert for flushing and easy replacement.
  • FCU connections included as standard.
  • A wide selection of system and flexible hose connections available.
  • Union connections at all joints for easy valve alignment and removal.
  • Strainer, Flow Measurement, Union Drain valves off the shelf.
  • Wide range of Electric and Thermal Actuators.
  • Labelled, cross-referenced to the schedule, terminal unit and location in the building.

General information

Color

Gold

Finish

Brass

Material

Brass

Shape

Other

Length

290 mm

Width

85 mm

Height

188 mm

Warranty description

18 months

Uniclass

Pr_65_54_95_63 Pressure-independent control valvesPrimary

CAWS

S90/650 Flow reducing/ servicing valves

S90/650 Flow-reducing/ servicing valves

Product range

FloSet

Specification data - Pressure-independent control valves

Temperature range

Heating and cooling applications [-20°C to +120°C].

Connections

FCU connections included as standard.

Actuator

Electric.

Thermal.

Accessories

Strainer, Flow Measurement, Union Drain valves

Type:

Px.3.15-xR.15I.S.0

Sustainability data

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FN/FH Actuator Range UKCA Certificate

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FNP Actuator UKCA Certificate

Statement of compliance

Statement of compliance

FlowCon Green PICV PED Certificate

Statement of compliance

Statement of compliance

FlowCon GreEQ PICV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Metering Station PED Certificate

Statement of compliance

Statement of compliance

FlowCon Mini Flushing Bypass 40mm Centres PED Certificate

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

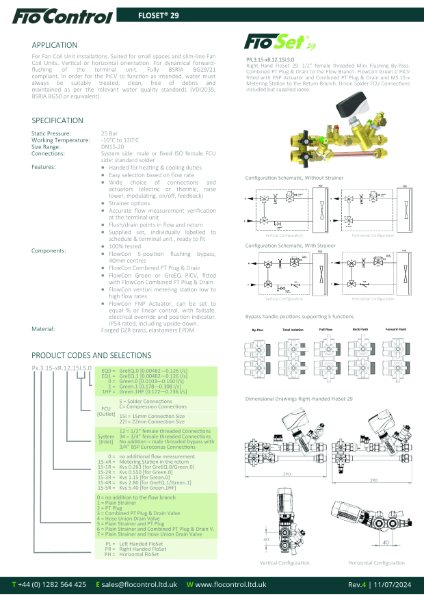

FloSet Brochure
