Flotex Planks Box-cross - Carpet plank
Verified by manufacturer 2 months ago
QA Certificate
Certificate type
HPDC Certification
Certificate type
EPD
Certificate type
Certificate of Conformity
Certificate type
Electrostatically flocked carpet planks.
Application
Internal use, all busy commercial and public sector locations.
Description

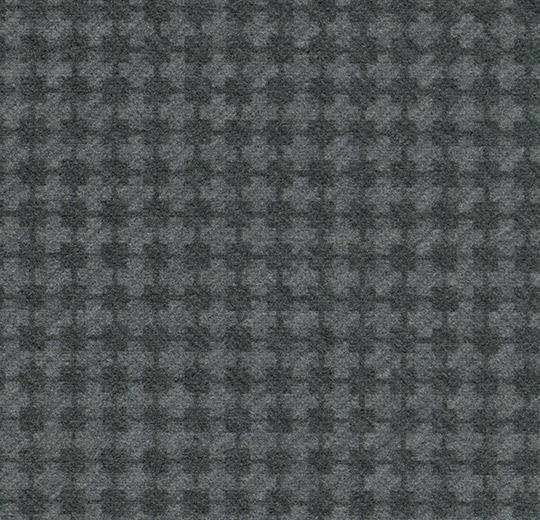

Electrostatically flocked carpet planks with box-cross pattern.
Features and benefits:
- Every plank is unique, containing a pattern that subtly changes from cross to box, fading one into the other along the length of the plank whilst a diagonal texture plays across the width, blending the planks together.
- The unique construction of Flotex allows it to release soiling like no other textile flooring. The smooth, straight fibres of Flotex do not trap particles of soil, allowing them to be removed without difficulty during cleaning.
- Nylon 6.6 pile with a resilient waterproof backing.
Adhesive:
For use with 542 Eurofix Tack Plus very low VOC emission PVC tackifier release system.
Method of laying:
Half-drop or random drop installation .
General information
Color | Grey Turquoise Red Black Brown Manufacturer guidanceRange of colour available. |
Finish | Other Guidance for specification option: Flocked pile carpet. |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile. PVC Guidance for specification option: With PVC backing. |
Shape | Rectangle |
Length | 250 mm |
Width | 1000 mm |
Height | 5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Flocked. |
Material | Nylon. |
Classification | |
Standard | To BS EN 1307. |
Third-party certification | Allergy UK approved. |
Level of use class | Class 33.Guidance for specification option: Heavy contract. |
Recycled content | 49%. |
Size | 1000 x 250 mm. |
Colour and pattern | 133002 Pearl.133004 Biscuit.133005 Linen.133007 Granite.133008 Blueberry.133009 Petrol.133010 Seal.133011 Anthracite.133016 Crimson. |
Total thickness to ISO1765 | 5 mm. |
Total weight (to ISO 8543) | 4.8 kg/m². |
Dimensional stability to ISO 2551 / EN 986 | < 0.1%. |
Light fastness to EN-ISO 105-B02 | ≥5. |
Slip resistance to UKSRG pendulum test | Dry- Very low slip risk; Wet- low slip risk. |
Impact sound to EN-ISO 717-2 | ΔLw = ≥19 dB. |
Sound absorption to ISO 354 | 0.1. |
Water impermeability to EN 1307 annex G | Pass. |
Reaction to fire to EN 13501 | Bfl-s1. |
Slip resistance (to EN 13893) | μ ≥0.30. |
Body voltage to ISO 6356 | < 2 kV. |
Method of laying | Half drop. Random drop. |
Adhesive | Not required. Eurocol 542 Eurofix Tack Plus. Guidance for specification option: Very low emission tackifier release system. |
Thermal resistance to EN 12524 | 0.06 m2 K/ W. |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: PVC. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile. PVC Guidance for specification option: With PVC backing. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.80 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 62 % |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
British Allergy Foundation: Seal of Approval for Flotex
HPDC Certification
Flotex Tile Health Product Declaration
EPD
Flotex Tile and Plank Environmental Product Declaration
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Product Portfolio 2022
Forbo Adhesive Guide
Forbo Flotex Planks LRV and DSDC Accreditation Overview
