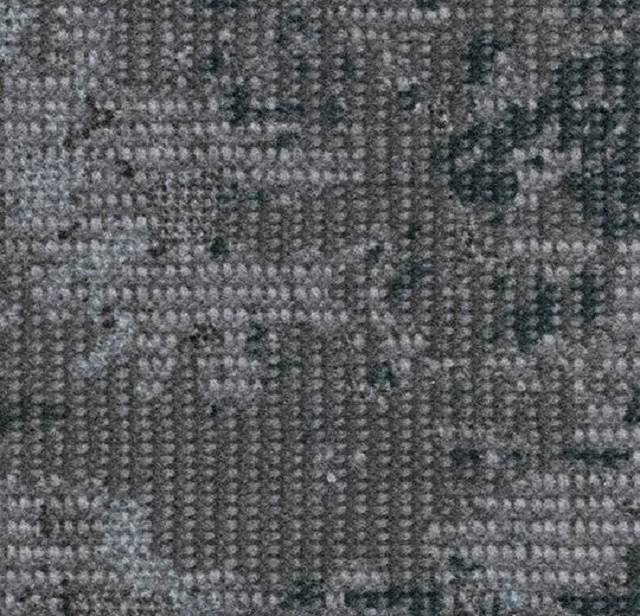

Electrostatically flocked carpet planks.
Application
Internal use, all busy commercial and public sector locations.
Description
Electrostatically flocked carpet planks with elegant and contemporary design created through the build-up of layers of blended and structural elements.
Features and benefits:
- Colours can easily be combined to create beautiful designs or can be installed alongside the co-ordinating Ombre colourways for a contrast in textures within a space.
- The unique construction of Flotex allows it to release soiling like no other textile flooring. The smooth, straight fibres of Flotex do not trap particles of soil, allowing them to be removed with standard cleaning appliances.
- Compliant with BS EN 651.
- Nylon 6.6 pile with a resilient waterproof backing.
Adhesive:
For use with 542 Eurofix Tack Plus, or Eurocol 640 Eurostar Special for permanent fixture.
Method of laying:
Half-drop, herringbone, double herringbone and weave installations.
General information
Color | Blue Green Grey |
Finish | Other |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile with PVC backing. PVC |
Shape | Rectangle |
Length | 250 mm |
Width | 1000 mm |
Height | 5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Flocked. |
Material | Nylon. |
Classification | |
Standard | To BS EN 1307. |
Third-party certification | Allergy UK approved. |
Level of use class | Class 33 . |
Recycled content | 49%. |
Size | 1000 x 250 mm. |
Colour and pattern | 147001 boreal147002 horizon147003 tropic147004 moraine147005 estuary147006 glacier147007 arctic147008 tundra |
Total thickness to ISO1765 | 5 mm. |
Total weight (to ISO 8543) | 4.8 kg/m². |
Dimensional stability to ISO 2551 / EN 986 | < 0.1%. |
Light fastness to EN-ISO 105-B02 | ≥5. |
Slip resistance to UKSRG pendulum test | Dry- Very low slip risk; Wet- low slip risk. |
Impact sound to EN-ISO 717-2 | ΔLw = ≥19 dB. |
Sound absorption to ISO 354 | 0.1. |
Water impermeability to EN 1307 annex G | Pass. |
Reaction to fire to EN 13501 | Bfl-s1. |
Slip resistance (to EN 13893) | μ ≥0.30. |
Body voltage to ISO 6356 | < 2 kV. |
Thermal resistance to EN 12524 | 0.06 m2 K/ W. |
Method of laying | Half-drop. Herringbone. Double herringbone. Weave. |
Adhesive | Not required Eurocol 542 Eurofix Tack Plus. Guidance for specification option: Very low emission tackifier release system. |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile with PVC backing. PVC |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.80 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 62 % |
