FlowCon EVS Fixed Flow Automatic Balancing And Temperature Control Valve

Verified by manufacturer 5 months ago

DN15 EVS.x.01.B

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Fixed flow automatic balancing and temperature control valve.

Jump to:
+44 1282 564425 Website

Application

Temperature control and dynamic balancing in cooling ceilings and fan coil units or as zone valve in heating systems.

Description

FlowCon EVS valves are designed for indoor comfort. The valves will provide on/off or analog temperature control and self balancing flow control for use with fan coil units in air-conditioning and cooling ceilings or as zone valve in heating systems.


Features and benefits:

  • Static pressure: 25 Bar.
  • Size range: 1/2", 3/4" and 1".
  • Temperature range: -20°C to +120°C.
  • Connections: Standard female threaded or union options.
  • Body Material: Forged Brass ASTM CuZn40Pb2.
  • Insert: AISI Type 304 Stainless Steel.
  • Elastomers: EPDM.
  • Flow rate range: 0.0210 – 0.631 l/s.
  • Automatic balancing, the correct flow rate for each circuit is achieved automatically.
  • The correct flow rate is maintained as each valve compensates for pressure fluctuations in the system.
  • Easily accessible insert for flow rate adjustment or maintenance.
  • Pressure/temperature measurement plugs for verifying operating pressure differential range.

General information

Color

Gold

Finish

Brass

Material

Brass

Stainless steel

Rubber

Shape

Other

Length

81 mm

Width

36.14 mm

Height

147.6 mm

Warranty description

18 months

Uniclass

Pr_65_54_95_22 Constant flow valvesPrimary

CAWS

S90/650 Flow-reducing/ servicing valves

S14/490 Water metering valves

Specification data - Constant flow valves

Pressure rating

25 Bar.

Temperature range

0°C to +60°C.

Flow rate

0.0210 – 0.631 L/s.

Material

Body Material: Forged Brass ASTM B584 and POM. Insert: AISI Type 304 Stainless Steel. Elastomers: EPDM.

Size

DN15.

Accessories

ACC00113.

Guidance for specification option:

P/t plugs.

ACC1B03000.

Guidance for specification option:

Plugs and gaskets.

EVS.0.0.1.

Guidance for specification option:

Spare part, black composite part.

Recycled content

70%.

NominalStaticPressure

2500 kPa.

CloseOffRating

400 kPa.

Guidance for specification option:

Maximum.

Sustainability data

Country of product manufacture

Denmark

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Statement of compliance

Statement of compliance

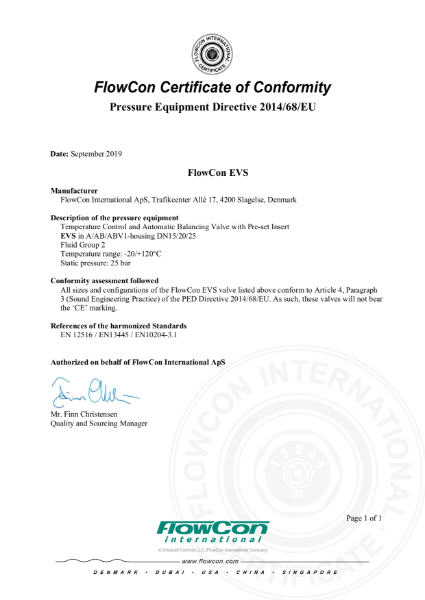

FlowCon EVS TCV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

FlowCon Actuator Selection Matrix

FlowCon Actuator Selection Matrix

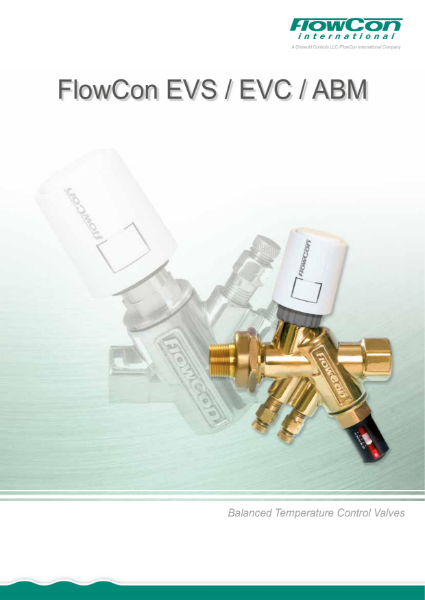

FlowCon EVS Balanced Temperature Control Valves

FlowCon EVS Balanced Temperature Control Valves

FlowCon Fixed Flow Automatic Balancing and Temperature Control Valve

FlowCon Fixed Flow Automatic Balancing and Temperature Control Valve

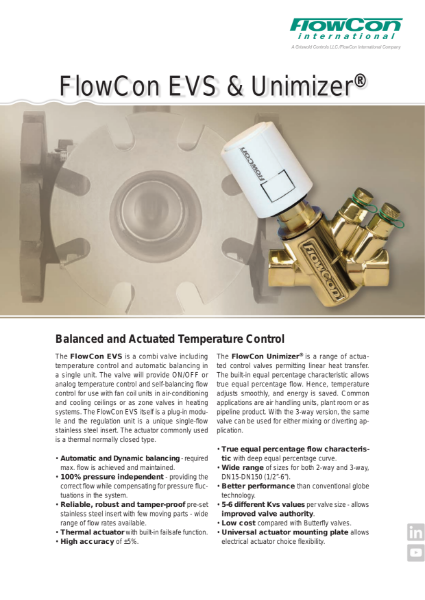

FlowCon EVS & Unimizer

FlowCon EVS & Unimizer
