FlowCon Fit Flanged Energy Valve 50–250 mm

Verified by manufacturer 5 months ago

Fit. 3 DN50/65/80

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Pressure-independent control valves.

Jump to:
+44 1282 564425 Website

Application

Pressure-independent control valves

Description

Smart Energy Valves are the ideal solution for efficient coil operation, monitoring and remote control. Energy valves measure the energy use, monitor coil performance and adjust the PICV Valve to deliver the design flow and temperature differential. The FlowCon Energy FIT System provides direct control of ΔT to reduce flow requirements and to heat/cool and pump less water, resulting in increased occupant comfort and energy savings. The Smart Energy Valve maintains correct flow despite pressure changes and guarantees that flow change and change in actuator position only occur when demand requirements change or ΔT is outside specification.


Readings of ΔT, ΔP, flow rate, energy and flow at valve location through Bluetooth FlowCon App or analogue to BMS via BACnet. The smart energy valve solution is compact, allows for 360° installation with no piping restrictions. The energy valves are well suited for plant room and district heating applications, new builds or retro fit.

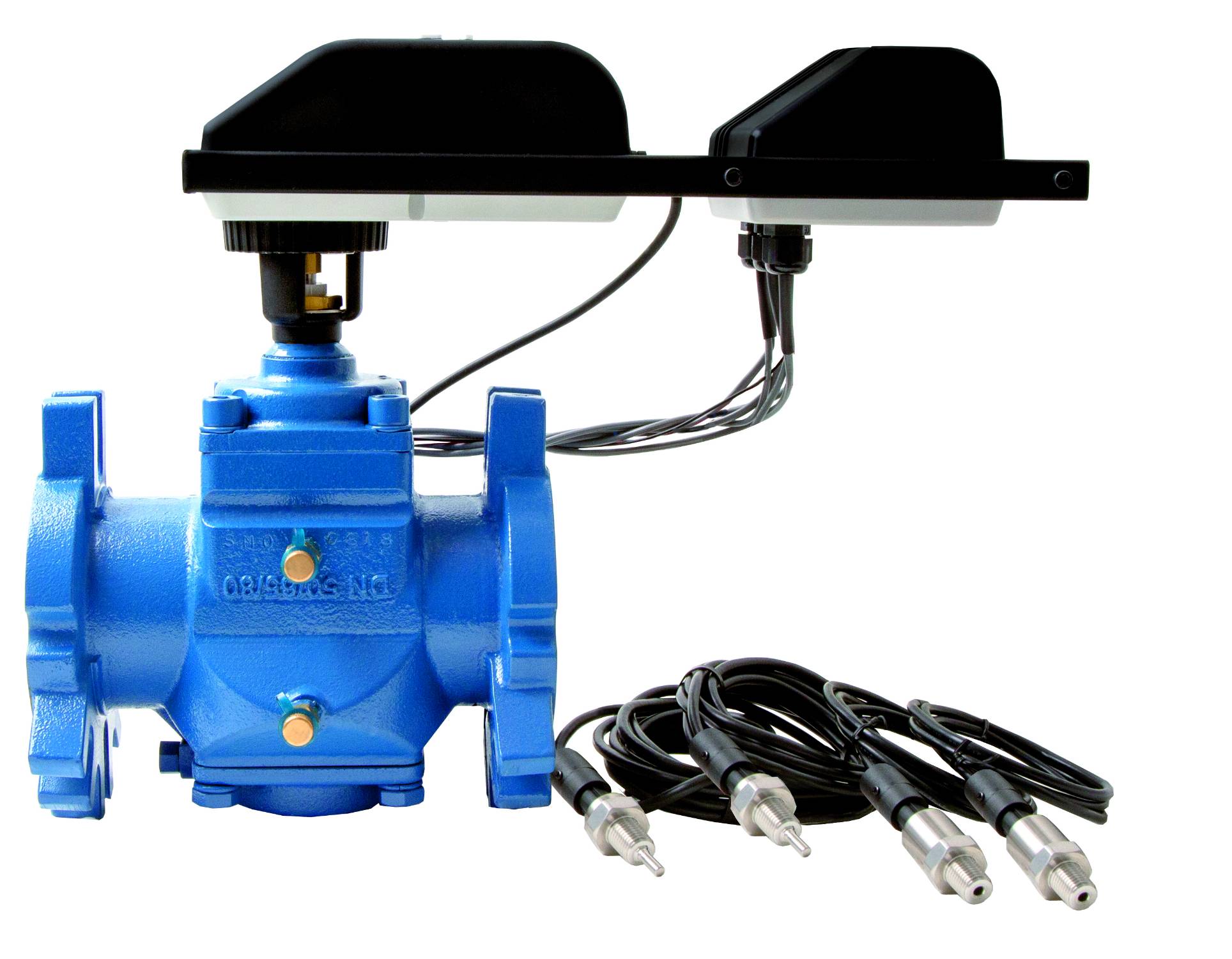

The FIT System includes:

  • A FlowCon PN40 SM PICV (50–250 mm, flanged):
  • FIT.3 = 50-80mm PN40 (1.48-9.89 l/s)
  • FIT.4 = 80-10mm PN40 (3.49-20.2 l/s)
  • FIT.5 = 125-150mm PN40 (6.48-29.5 l/s)
  • FIT.6 = 200-250mm PN40 (9.21-76.8 l/s)
  • A FlowCon SM display actuator (with or without failsafe function)
  • A sensor kit including two temperature sensors and two pressure sensors
  • The FlowCon Intelligent Interface


For smaller sizes with female threaded connections please review the FlowCon FIT G.

General information

Color

Blue

Material

Iron

Warranty description

18 months

Uniclass

Pr_65_54_95_63 Pressure-independent control valvesPrimary

Product range

FlowCon Smart Energy Valves

Specification data - Pressure-independent control valves

Pressure rating

4000 kPa/ 580 psi.

Temperature range

Media temperature: -20 to + 120°C.

Material

Ductile iron.

Connections

Universal flange connections.

Actuator

FlowCon SM.0.0.0.3 (standard).

FlowCon SM.0.0.0.4 (standard failsafe).

FlowCon SM.0.0.0.5 (BACnet).

FlowCon SM.0.0.0.6 (BACnet failsafe).

Manufacturer guidance

Electrical, bi-directional synchronous motor.

Supply voltage: 22-26 V a.c/ d.c. 50/60 Hz.

Accessories

Taps/ plugged (standard).

P/t Plugs.

Intelligent interface/ electronic unit.

Guidance for specification option:

24 V a.c/d.c. Communication standard: RS485. IP54 rated.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Denmark

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

35 %

Third party certifications

Statement of compliance

Statement of compliance

FlowCon FIT Energy Valve PED Certificate

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FN/FH Actuator Range UKCA Certificate

Statement of compliance

Statement of compliance

FlowCon SM PICV PED Certificate

Literature

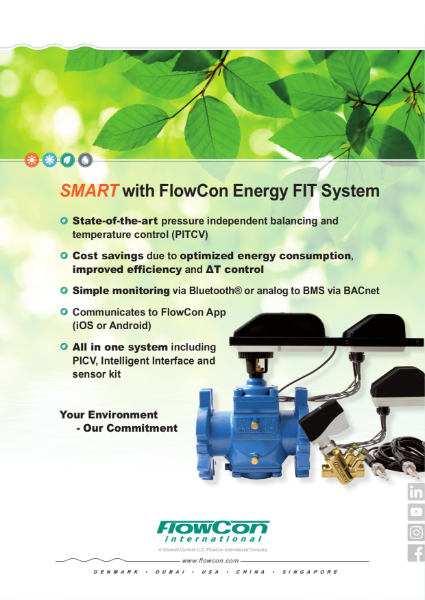

FlowCon FIT Energy Valves
