Focus™ Levels - Acoustic Panels
Verified by manufacturer 19 hours ago
Ceiling mounted
Ceiling mounted
Adhesive-fixed acoustic panel system consisting of tiles with three different thicknesses.
Application
Can be installed on ceilings and walls. Suitable for healthcare, education and office applications.
Description

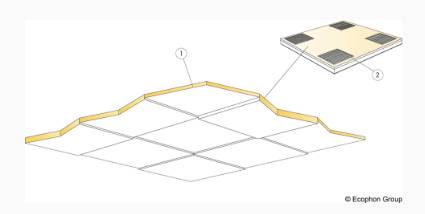

Ecophon Focus™ Levels is a creative system with different thicknesses, sizes and colours. The system is glued edge-to-edge directly to an existing soffit, ceiling or wall.
Features and benefits:
- Absorption Class B.
- Painted edges.
- Different panel thicknesses and sizes create distinctive patterns.
General information
Color | White Blue Grey Orange Pink |
Finish | Coated |
Material | Glass mineral wool |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm 300 mm |
Height | 20 mm 30 mm 40 mm |
Warranty description | Manufacturer guidanceFull warranty available upon request. |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Classification data | |
Standard | CE marked according to the European harmonized standard EN 13964:2014. |
Form | Panel. |
Rigidity | Rigid. |
Application | Ceiling mounting. |
Material | Glass wool. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | To EN ISO 11654. 20 mm system: Class C; 30 mm system: Class B; 40 mm system: Class A. |
Fire performance | |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
VOC emissions | Eurofins Indoor Air Comfort®: IAC Gold. French VOC: A+. |
Dimensions | |
Size (length x width) | 600 x 600 mm. 1200 x 300 mm. 1200 x 600 mm. |
Thickness (overall) | 20 mm. 30 mm. 40 mm. |
Profile | Linear. |
Edges | Square. |
Finish | Akutex™ FT. |
Colour | White Frost. Moonlight Sky. Highland Fog. Sunset Heat. Ocean Storm. Morning Drizzle. Peach Rose. Goji Berry. Scallop Shells. Fresh Clover. Sage Garden. Eucalyptus Leaf. Summer Forrest. Golden Field. Ruby Rock. Wet Sand. Silent Steam. Dark Diamond. Cloudy Day. Volcanic Ash. Silver Stone. Silk Slate. |
Installation | M488 - Glued installation. Guidance for specification option: Using Connect Absorber glue. |
Weight | Maximum 4.4 kg/m². Manufacturer guidanceDependent on panel thickness. Focus Levels 20 mm: 2.4 kg/m². Focus Levels 30 mm: 3.4 kg/m². Focus Levels 40 mm: 4.4 kg/m². |
Constant humidity resistance | To EN 13964:2014, Class C, relative humidity 95% and 30°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Glass mineral wool |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 58 % Guidance for specification option: Minimum (20 mm panel). |
Expected Life | 50 year |
Literature
Data Sheet - Focus Levels
