Foil-Faced Rock Fibre Duct Wrap
Verified by manufacturer 3 days ago

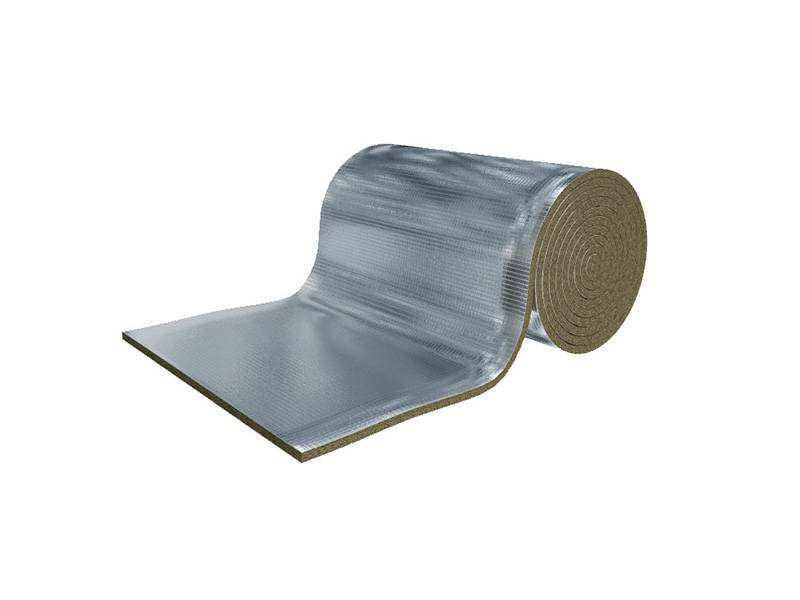

QFFDW Rockwool Foil-Faced Insulation is a lightweight, flexible roll with 45 kg/m³ density and aluminium foil facing, ideal for enhancing insulation ratings where an EI fire rating is required.
Application
Suitable for internal use, this product is wrapped around services, particularly those with a high metallic content in order to increase the fire performance insulation rating as part of a QuelStop Fire Stop System penetration seal.
Description
QFFDW Rockwool Foil-faced Rock Fibre Insulation is a lightweight, flexible insulation roll with a density of 45 kg/m³ and a reinforced aluminium foil face. It enhances insulation ratings, especially where an EI fire rating is required for services with high metallic content.
Features and benefits:
- Flexible roll.
- Rockwool insulation.
General information
Color | Silver |
Finish | Foil |
Material | Rock fibre |
Shape | Rectangle Other |
Length | 4000 mm |
Width | 1000 mm |
Height | 40 mm |
Uniclass | |
CAWS | K32/15 Duct/ wall lining panels H31/50 Mineral wool thermal insulation K32/150 Duct/ wall linings – panels and proprietary frames H31/271 Mineral wool thermal insulation H31/270 Mineral wool thermal insulation |
Specification data - Mineral wool insulation
Form | Roll. |
Density | 45 kg/m³. |
Facing | Metal foil laminate.Guidance for specification option: Reinforced aluminium foil. |
Thickness (minimum) | 40 mm. |
Width (nominal) | 1000 |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Rock fibre |
Literature
Quelfire Product Data Sheet - QFFDW Foil-Faced Rock Fibre Ductwrap
Material Safety Data Sheet (COSHH) - QFFDW Foil-faced Rock Fibre Ductwrap
