FPT MAX U6 Top Hung And Pivot Window
Verified by manufacturer 3 months ago
TopSafe and four seal system.
Application
Suitable for roofs with 15–55° pitch.
Description

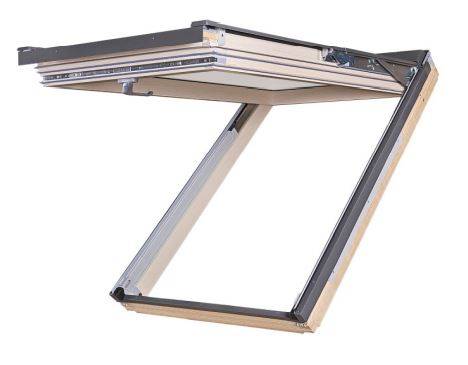

Wooden top hung and pivot window.
Features and benefits:
- Pinewood, natural colour, white NCS S0502-Y polyurethane or white acrylic.
- System TopSafe.
- Four seal system as standard.
- Universal installation system.
- Warm TGI spacer.
- Elegant handle.
General information
Color | Brown White Other |
Finish | Acrylic Varnished |
Material | Wood Pine Timber Glass |
Shape | Rectangle |
Warranty description | Ten year Guidance for specification option: For window. 20 year Guidance for specification option: For glazing. |
Uniclass | |
CAWS | L10/46 Roof windows L10/480 Roof windows |
Specification data - Wood frame roof window units
Standard | To EN 14351-1:2006+A2:2016.Guidance for specification option: Number of declaration of performance: XXX/CPR/14351/XX. Individual numbers of Declaration of Performance are to be found in the table with technical parameters. Manufacturer guidanceHarmonized standard: |
Product performance | |
Whole window U-value | 0.82 W/m²K.Guidance for specification option: Glazing heat transmittance coefficient: 0.5 W/m²K (EN 673). Manufacturer guidanceTo EN 12567-2, EN 10077. |
Frame | |
Finish as delivered | Pinewood natural colour.White NCS S0502-Y polyurethane.White acrylic.Painted.Guidance for specification option: Wooden profiles can be finished in any RAL colour or one of the five transparent colours. Insert colour code or reference; consult manufacturer for more details. |
Glazing or infill | |
Composition | Guidance for specification option: Suitable with non-standard glazing units. Consult manufacturer and insert requirements. |
Operation | |
Type | Manual. |
Fixing features | Standard.Insulation sets.Linings.Auxiliary rafters.Bands.Frame extensions. |
Accessories | Not required.Awning blinds.Roller shutters.Blackout blinds.Roller blinds.Standard roller shutters.Venetian blinds.Pleated blinds.Insect screen. |
Window size code | 02. Guidance for specification option: 547 x 981 mm. 16. Guidance for specification option: 547 x 1181 mm. AM. Guidance for specification option: 547 x 1401 mm. AN. Guidance for specification option: 547 x 1601 mm. 03. Guidance for specification option: 657 x 981 mm. |
Flashings | Standard. Special. Guidance for specification option: Consult manufacturer and insert requirements. Combination. Guidance for specification option: Consult manufacturer and insert requirements. |
External cladding finish | Not required. Required. Guidance for specification option: External cladding elements painted in any RAL colour or manufactured from other metal sheet (CU, TC). Insert colour code or additional requirements; consult manufacturer for more details. |
Mullion | Not required. Required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 64.0 Self declared |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 72 % |
Literature
FPT Data Sheet
