Galeria Balcony Roof Window (FGH V P2)
Verified by manufacturer 3 months ago
Balcony style roof window.
Application
Applicable for buildings in residential and commercial sector. Suitable for roof pitches between 35 and 55 degrees.
Description

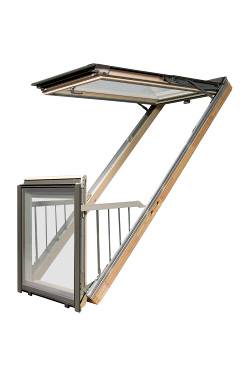

A large roof window, in which the sashes create a functional balcony in the loft. The upper sash opens upwards while the bottom sash tilts forwards to a vertical position, allowing free access to the balcony recess.
Features and benefits:
- The upper sash opens up to 45°, and is supported by an innovative auxiliary mechanism which supports the sash in any position within this range.
- The side rails are integrated into the bottom sash and extend during its opening.
- When the lower sash is closed, the balcony rails area hidden inside the window and are not visible above the roof surface.
General information
Color | Clear White |
Finish | Acrylic Varnished |
Material | Wood Timber Glass |
Shape | Rectangle |
Warranty description | Ten year 20 year |
Uniclass | |
CAWS | L10/46 Roof windows L10/480 Roof windows |
Specification data - Wood frame roof window units
Product performance | |
Whole window U-value | 1.5 W/m²K.Guidance for specification option: Glazing U-value: 1.1 W/m²K. |
Frame | |
Finish as delivered | Water based acrylic lacquer, clear.Guidance for specification option: As standard. Polyurethane varnish, white.Guidance for specification option: White. Manufacturer guidanceInternal frame and sash: |
Ventilator | V40P automatic air inlet.Guidance for specification option: The FGH- V P2 Galeria is equipped with an automatic air inlet V40P providing the optimum amount of fresh air in the room and energy savings. |
Glazing or infill | |
Composition | 4 mm toughened glass outer, 14 mm argon filled cavity, 33.2 mm laminated glass inner. |
Accessories | None.Blinds.Guidance for specification option: Consult manufacturer for options and insert requirements. |
External cladding | Aluminium, polyester powder coated RAL 7022. Guidance for specification option: Brown as standard. Aluminium, polyester powder coated, colour. Guidance for specification option: Insert RAL colour reference Copper. Titanium zinc. |
Flashings | ESV/G. Guidance for specification option: For flat roof coverings. EZV-A/G. Guidance for specification option: For profiled roof coverings. EHN-AT Thermo/G. Guidance for specification option: Thermally enhanced flashings. |
Material and finish | Aluminium with polyester varnish, RAL 7022. Guidance for specification option: Brown as standard. Aluminium with polyester varnish, colour. Guidance for specification option: Insert RAL colour reference. |
Acoustic insulation | 35 dB. Manufacturer guidanceRw: |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 61.3 kg CO₂ eq/kg Self declared |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
