FS240 - Fire Shutter
Verified by manufacturer 6 days ago
Exova Warringtonfire approved single skin steel roller shutter providing 240 minutes' fire protection.
Application
- For applications requiring fire-rated protection.

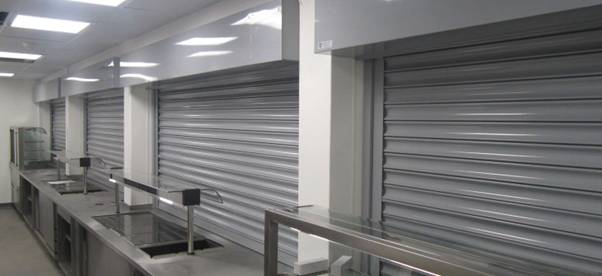

- Common uses include canteens, storage units and manufacturing premises.
Description
A fire-rated single-skin steel roller shutter with 76 mm high slats.
The fusible link and solenoid release allow the shutter to automatically descend in the event of an emergency while a battery backup ensures this function is maintained in the event of a power outage. All shutters can be integrated into a fire alarm system as required.
Features and benefits:
- Tested by WarringtonFire and certified for four hours of fire protection.
- Meets the standards BS EN 16034:2014 for fire resistance characteristics and BS EN 13241:2003 + A2 2016 for non-fire performance.
- Span up to 4 m in width and an area of up to 14.25 m².
General information
Color | Other Manufacturer guidanceOption to powder coat any RAL/ BS colour. |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | To BS EN 13241:2003+A2:2016 and BS EN 16034:2014. |
Opening sizes | 4000 x 4750 mm.Guidance for specification option: Up to 14.25 m². 4000 mm maximum width. Size limitations vary depending on motor. Insert requirements or refer to a drawing. Manufacturer guidanceEnclosure size (internal face fix): Dependent on height.
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain | |
Lath material | Single skin steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width. Bottom slat: T-shaped steel. |
Profile | Curved. |
Finish and colour | Galvanized.Guidance for specification option: Standard. Polyester powder-coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder-coated, RAL.Guidance for specification option: Insert colour requirement. Manufacturer guidanceOption to powder coat any RAL/ BS colour (surcharges apply). |
Frame and guides | |
Material | Enclosure: Steel casing and end plates. Guide channels: Steel.Guidance for specification option: Reveal fix installations are supplied with a fascia as standard. |
Finish | Galvanized.Guidance for specification option: Standard. Polyester powder-coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder-coated, RAL.Guidance for specification option: Insert colour requirement. |
Colour | Manufacturer guidanceOption to powder coat any RAL/ BS colour. Insert requirements. |
Operation | |
Mode | Ellard tubular motor, audio-visual interface panel and battery back up facility.Single phase inline chain driven motor with push button control audio-visual panel, chain override, fusible link and solenoid release.Three phase inline chain driven motor with push button control audio-visual panel, chain override, fusible link and solenoid release.Manufacturer guidanceAll Fireroll fire shutters can be connected to fire alarms and building management systems as required. |
Accessories | None.Crank handle.Manual override facility. |
Fire resistance | Four hours. |
Weight | 9.8 kg/m². |
Sustainability data
Country of product manufacture | United Kingdom |
Literature
Aluroll F240 Datasheet
