FSB 4255 Bathroom Flush Pull (HUKP-0401-35) - Privacy indicator

Verified by manufacturer 5 months ago

Hafele UK Ltd

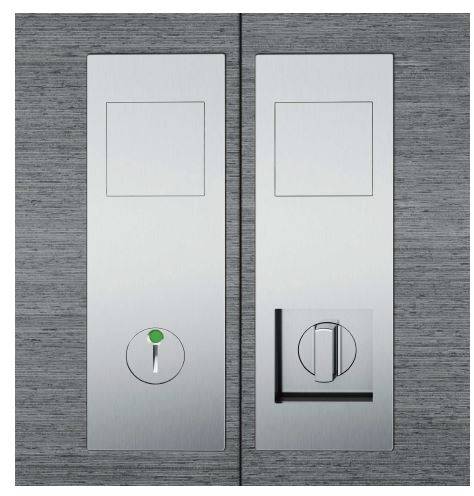

Stainless steel flush pull sliding door WC lock set

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suited for high-end interior applications.
  • Suitable for highly corrosive environments.
  • Suitable for door thickness 38-42 mm.
  • Suitable for water closet, double sliding bathroom doors.
  • Concealed fixing to suit doors from 38-42 mm thick.

Description

Stainless steel WC bathroom lock set for flush pull double sliding doors (handle pull included).


Features and benefits:

  • Includes red/ green indicator and emergency release.
  • Flush fitting 210 x 70 mm including hook bolt mortice lockset.
  • Complete with integrated sprung handle pull.
  • 72 mm mortice lockset and handle pull included.
  • Concealed fixing to suit doors from 38-42 mm thick.

General information

Color

Silver

Finish

Satin

Guidance for specification option:

Stainless steel.

Material

Stainless steel

Steel

Shape

Rectangle

Length

70 mm

Manufacturer guidance

Lock and indicator set for both doors: 2 (number).

Height

210 mm

Manufacturer guidance

Lock and indicator set for both doors: 2 (number).

Warranty description

25 year

Uniclass

Pr_30_36_59_64 Pull handlesPrimary

CAWS

P21/641 Pull handles

P21/42 Pull handles

Specification data - Pull handles

Classification grades (minimum)

-

Corrosion resistance

-

Manufacturer guidance

High corrosion resistance.

Material and finish

Stainless steel, grade 1.4301 (304).

Colour

Satin stainless steel.

Mounting

-

Manufacturer guidance

Concealed fixing to suit doors from 38-42 mm thick.

Integral accessories

72 mm mortice lockset and handle pull.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Aluminium 4.72, Stainless Steel 4.03

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium 11 %, Stainless Steel 40 %, Bronze 97 %

Literature

5. Project - Architectural Flush Pulls

5. Project - Architectural Flush Pulls
