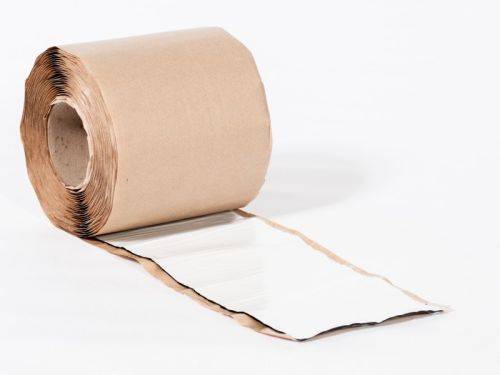

Gas Resistant Detailing Strip
Verified by manufacturer 10 months ago
A detailing strip suitable for sealing around penetrations within a membrane installation.
Application
Can be installed in both vertical and horizontal applications, above and below ground.
Description
Strip used for detailing work, when sealing a sheet membrane to penetrations e.g. steel columns, manholes and piles. It is manufactured using aluminium/polythene laminate coated on one surface, with an additional layer of self-adhesive polymer modified bitumen.
Features and benefits:
- Incorporates an aluminium foil core to provide resistance to the passage of methane, carbon dioxide and radon gases.
- Adhesion properties to primed surfaces.
- Multiple performance properties.
General information
Color | Black White |
Material | Bitumen Aluminium |
Length | 10000 mm Manufacturer guidanceRoll length. |
Width | 300 mm |
Height | 1.1 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | D21/350 Gas-retardant membrane D21/38 Gas-retardant membranes F30/360 Gas-resistant damp-proof courses/ cavity trays F30/54 Gas-resistant dpcs/ cavity trays J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/35 Loose-laid plastics or rubber gas-retardant membranes |
Specification data - Aluminium foil tapes
Bond | Self-adhesive polymer modified bitumen. |
Size | 1.1 x 300 mm wide. |
Puncture resistance | 250 N to ASTM E154. |
Adhesion, 180° peel | 2 N/mm to ASTM D1000. |
Methane gas permeability | <0.03 ml/m²/day. |
Radon diffusion | 5.0 x 10^-14 m²/s. |
Purpose | Gas retardance. |
Tensile strength (minimum) | 3 N/mm to ASTM D1000. |
Elongation to break | 40% to ASTM D1000. |
Water vapour resistance (minimum) | <0.1 g/m²/day to ASTM E96. |
PhysicalPropertiesColour | White and black. |
Weight (minimum) | 1.2 kg/m². |
Roll length (minimum) | 10 m. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Bitumen Aluminium |
Literature
Cordek VOC & Ground Gas Brochure
