Gatic Slotdrain - PaveSlot
Verified by manufacturer 19 days ago

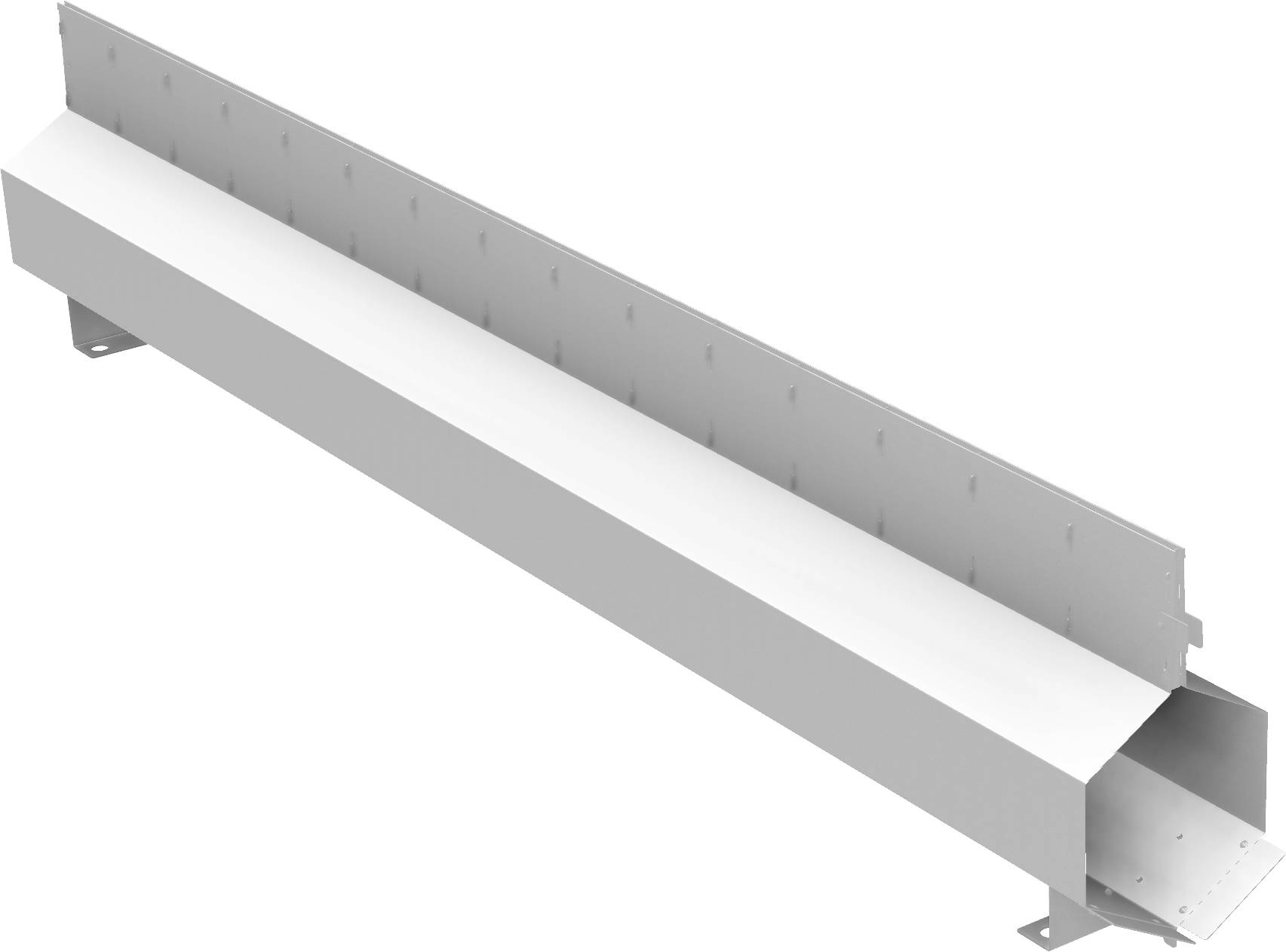

Gatic PaveSlot 100 mm
Gatic PaveSlot 100 mm
UKAS
Certificate type
PaveSlot Slot Drain For Use In Areas With Block Paving
Application
Suitable for all external pavement areas, in public and commercial projects which may be subject to occasional traffic by delivery and service vehicles
Description
PaveSlot is used to drain external hard surface areas where a neat, unobtrusive aesthetic is required. The system is used with paving units laid against the top edge of the channel.
Features and Benefits:
- Strong and durable
- Watertight
- Suitable for all paving
- Load classification: A15 to C250
- Available in a variety of channel widths from 100 to 600 mm
General information
Finish | Galvanized |
Material | Steel |
Shape | Hexagon |
Length | 500 mm 1000 mm 3000 mm |
Uniclass | |
CAWS | Q10/170 Linear slot drainage channel systems Q10/30 Linear slot drainage channel system |
Product range |
Specification data - Linear slot drainage channels
Standard | To BS EN 1433. |
Third party certification | CE Certified in accordance with BS EN 1433. |
Material | Galvanized steel. |
Slot body | |
Material | Galvanized steel. |
Upstand height | 200 mm. |
Load class (minimum) | A 15.B 125.C 250. |
Channel unit dimensions | |
Width (nominal) | 100 mm. |
Overall depth | 357 mm. |
Length | 500 mm.1000 mm.3000 mm. |
Integral accessories | Access Box.Shallow Invert Access Box.Outlet Box.Roto Modular Outlet Box.Silt Box.Roto Modular Silt Box.Drop Connector.End Cap/Outlet.Catchpit Connector.Flow Regulator.Channel Pipe. |
Capacity | 9 L/m. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Gatic Ports and Airports
Gatic Surface Water Drainage
