Wade (HCE Profile) Stainless Steel Channel
Verified by manufacturer 1 month ago
UKAS
Certificate type

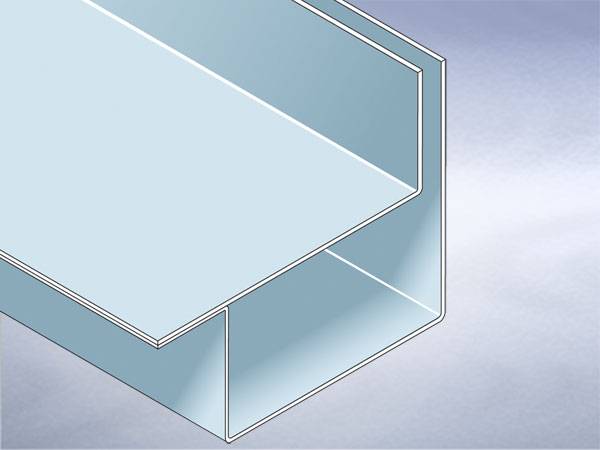

Stainless steel hidden floor drainage channel with aymmetrical slot grating.
Application
Suitable for draining large areas of screed, resin and other floor finishes, as well as block paving.
Description
Suitable for draining large areas of screed, resin and other floor finishes, as well as block paving. The hidden channel can be designed to accommodate a range of paving thicknesses and flow rate requirements. Available in a range of profiles, generally with in-built fall towards the outlets; can also be produced as curved channel.
General information
Color | Silver |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 3000 mm Guidance for specification option: Maximum. |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/30 Linear slot drainage channel system Q10/170 Linear slot drainage channel systems Q10/180 Drainage channel systems with gratings |
Product range |
Specification data - Linear slot drainage channels
Standard | To BS EN 1433. |
Material | Stainless steel, Grade 304.Stainless steel, Grade 316. |
Slot body | |
Material | Stainless steel, Grade 304.Stainless steel, Grade 316. |
Load class (minimum) | A 15/ B 125. |
Channel unit dimensions | |
Width (nominal) | Manufacturer guidanceBespoke, insert requirements. |
Overall depth | Manufacturer guidanceBespoke, insert requirements. |
Length | 3000 mm (maximum).Guidance for specification option: Bespoke, insert requirements. |
Integral accessories | Trapped Gully Body.Channel Sealing Kit.Sub Surface Drainage.Filter Bucket.Removeable Bottle Trap.Plug.Portable Funnel. |
Type | Asymmetrical Slot. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel Steel |
Recyclability | 100% |
Expected Life | 50 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
