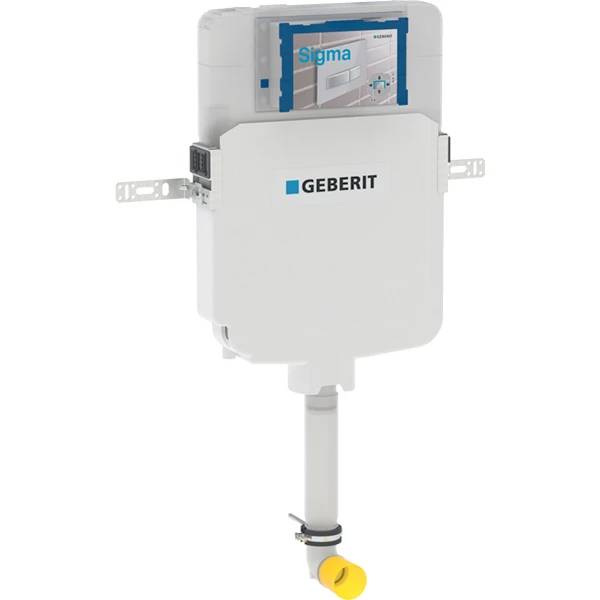

Geberit Sigma concealed cistern 8 cm, 6 / 3 litres - Concealed Cistern
Verified by manufacturer 2 days ago
Sigma concealed cistern.
Application
- For drywall construction.
- For masonry walls.
- For installation in part or room-height prewall installations.
- For floor-standing WCs.
Description
Sigma concealed cistern.
Features and benefits:
- Concealed cistern with front actuation.
- Concealed cistern, fully insulated against condensation.
- Cistern fulfils standard requirements in accordance with EN 14055, Class II.
- Immediate post flush possible with factory setting.
- Flush bend fitted.
- Tool-free installation and maintenance work on concealed cistern.
- Water supply connection on the top left.
- Protection cover box for service opening protects against moisture and dirt.
- Protection box for service opening can be cut to length, suitable for surface-even flush plates.
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first.
General information
Color | White |
Finish | Smooth |
Material | Plastic |
Shape | Rectangle |
Length | 80 mm Guidance for specification option: Excluding connections. |
Width | 410 mm Guidance for specification option: Excluding connections. |
Height | 625 mm Guidance for specification option: Excluding connections. |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | 109.792.00.1 |
Specification data - WC cisterns
Standard | To BS EN 14055, Class 2. |
Form | Concealed. |
Operation | Front actuation. |
Materials | |
Body | Plastics. |
Finish and colour | White. |
Capacity | 6/3 L. Guidance for specification option:
Manufacturer guidanceFlush valve features settings to enable either a 6 L and 3 L flush, 4.5 L and 3 L flush or 4 L and 2.6 L flush. Note: must be used with pans designed for low volume flush. |
Water supply, overflow and outlet holes | |
Water supply | Top left inlet. |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | Water supply connection R½", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel. Protection box for service opening. Flush bend 90°. Fastening for flush bend. Protection plug. Cup for flush volume reduction 4.5/ 3 L. Fastening material. Two fixing brackets. |
Pressure | Flow pressure: 0.1–10 bar. |
Operating temperature | Water, maximum: 25°C. |
Accessories | None. Geberit damming device (240.476.00.1). Guidance for specification option: For concealed cisterns (from year of manufacture 1998). Optimises the flushing process |
Sustainability data
Material | Plastic |
