GenieMat PMI - Perimeter Isolation Strip
Verified by manufacturer 4 months ago
ISO 9001 Quality Management
Certificate type

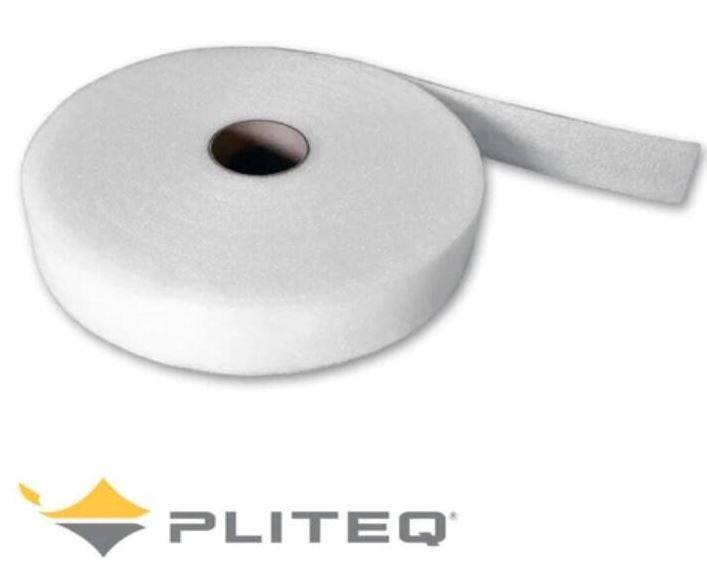

Extruded polyethylene foam perimeter isolation strip.
Application
To be attached at the base of the perimeter wall of the entire subfloor, as well as around the perimeter of any protrusions, prior to unrolling and installing GenieMat underlayment products, in order to isolate or break the vibration transmission path between the floor and the wall.
Description
Flat, resilient, extruded polyethylene foam perimeter isolation strip that is used as perimeter isolation so that no hard surface (floor covering) touches any hard vertical surface (protrusion or wall).
Features and benefits:
- Reduces noise flanking in acoustic-isolated assemblies.
- Easy to unroll, cut, and install.
- CE marked.
General information
Color | White |
Material | Polyethylene |
Shape | Rectangle |
Length | 50000 mm |
Width | 120 mm |
Height | 5 mm |
Warranty description | Lifetime Guidance for specification option: Pliteq Inc. is a corporation duly organized and validly existing under the laws of the province of Ontario. Pliteq offers a limited lifetime warranty on the GenieMat® brands of Impact Sound Insulation products against defects in material and workmanship and GenieMat® shall meet all published specifications and shall perform effectively. Pliteq warranties that during the warranty period GenieMat® shall not harden, become brittle, chip, crack, tear, or exhibit any signs of excessive deterioration except for normal wear and tear. All other warranties, including implied warranties for a particular purpose, are expressly excluded. The sole remedy against the seller will be the replacement or repair of the defective goods, or at seller's option, credit may be issued not exceeding the selling price of the defective good. Manufacturer guidanceThe recommendations for applications and installation are based on our extensive experience and on current technological practice. Our liability and responsibility in the event of damages is limited to the extent defined in our General Terms and Conditions of Business and is not in any way increased by the above recommendations or by advice given by our sales representatives or applications engineering staff. |
Uniclass | |
CAWS | K11/295 Floating floor system K11/27 Acoustic separating floor system K11/275 Acoustic separating floor system K11/25 Particleboard floating floor K11/225 Particleboard floating floor K11/20 Battened particleboard floating floor K11/125 Battened particleboard floating floor |
Specification data - Extruded polyethylene (PE) foam joint fillers
Size | |
Thickness | 5 mm. |
Width | 120 mm. |
Length | 50 m. |
Roll weight | 0.765 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Belgium |
Material | Polyethylene |
Recyclability | 100% Recyclable |
Expected Life | Lifetime |
Third party certifications
ISO 9001 Quality Management
ISO 9001-2015: Quality Management System
Literature
GenieMat FF Installation Guide
GenieMat FFNP Installation Guide
GenieMat CE DoP
GenieMat FF70/FF70LDM Installation Guide
Hoteliers Acoustic Design Guide
Mixed-Use Buildings Acoustic Design Guide
