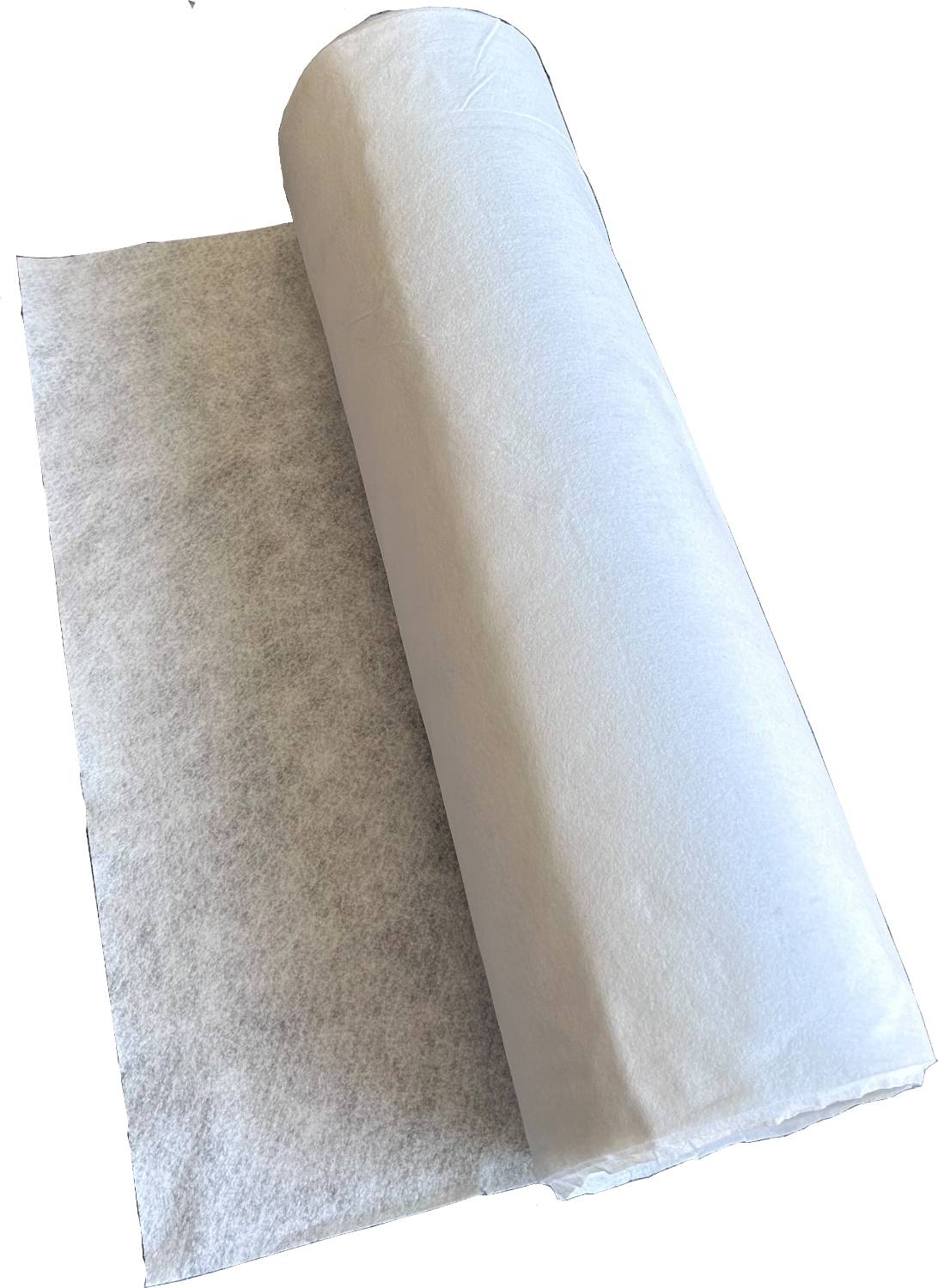

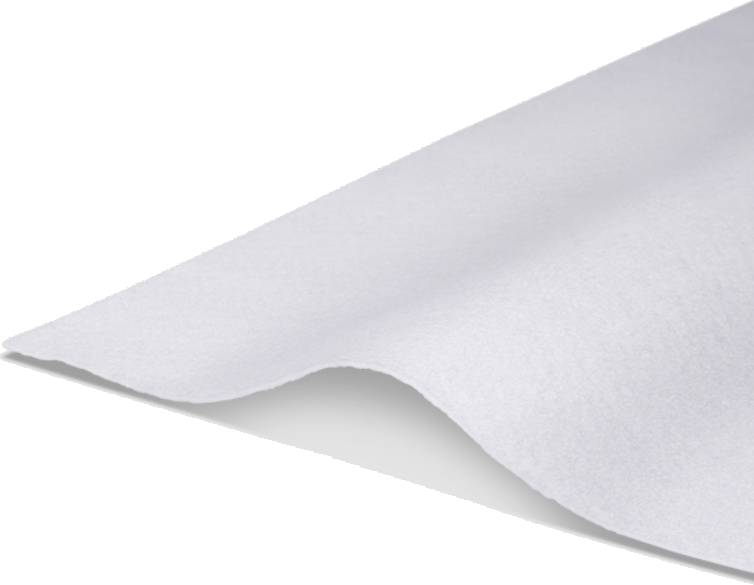

Geotextile - PPST Nonwoven Premium Virgin Polypropylene
Verified by manufacturer 3 months ago
70 g/m²
70 g/m²
ISO 9001 Quality Management
Certificate type
Nonwoven high tenacity virgin fibre polypropylene geotextile fabric. It is a premium option protection & separation membrane in roofing, including inverted waterproofing systems & heavy duty civils.
Application
It is ideal as protection & separation membrane in roofing, including inverted water
proofing systems, heavy duty civils, tunnels, landfill & reservoirs.
Description
Best quality, high tenacity virgin fibre polypropylene geotextile fabric.
Features and benefits:
- Ultra-high tensile strength.
- Superior puncture strength available from 70 to 2000 gsm.
- Needle punched & double calandered.
- Available in roll sizes from 1 to 6 m wide.
- Suitable for reservoirs, tunnels, landfills and road construction.
- Thermally bonded.
- Manufactured without glues or chemical binders
- Available in multiple thicknesses.
- suitable for all types of soil stabilization.
- Highest grade nonwoven geotextile available.
- Protection of insulation and membranes for inverted roofing systems.
General information
Color | White |
Finish | Micro-textured |
Material | Polypropylene Guidance for specification option: Virgin fibre |
Shape | Rectangle |
Length | Bespoke 50000 mm 100000 mm Manufacturer guidance50000mm, 100000mm |
Width | 1000 mm 2000 mm 3000 mm 4000 mm 5000 mm Manufacturer guidance1 and 2 metre widths are stock items. 3, 4, 5 & 6 metre available on special order (minimum quantities apply) |
Height | 0.40 mm 0.60 mm 0.65 mm 0.70 mm 0.80 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | J42/110 Warm deck roof covering J42/120 Inverted roof covering J42/130 Cold deck roof covering J42/380 Protection layer J42/383 Separating layer J42/385 Filter layer |
Product range |
Specification data - Plastics sheets
Material | Polypropylene.Guidance for specification option: Virgin fibre. |
Purpose | Filtration, separation, protection and drainage. |
Third-party certification | CE 1213-CPR-3269. |
Performance characteristics | |
Tensile strength (minimum) | To EN ISO 10319, 3.2 kN/m (MD); 3.5 kNm (CMD).Manufacturer guidanceThe tensile strength varies with g/m2. The minimum tensile strength starts at 3.2 kN/m for the 70 g/m², up to 155 kN/m for the 2000 g/m². |
Tear resistance | Dynamic puncture resistance to EN ISO 12344, >50 mm. |
Elongation to break | To EN ISO 10319, 55% (MD); 60% (CMD).Manufacturer guidanceAt maximum load. |
Recycled content | None – virgin material. |
Form | Non-woven. |
Physical properties | |
Colour | White. |
Weight (minimum) | 70 g/m². |
Dimensions | |
Thickness (minimum) | 0.40 mm.Guidance for specification option: 1500 g/m². |
Width (minimum) | 1 m.Guidance for specification option: Available up to 6000 mm for special orders. 2 m.3 m.4 m.5 m.6 m.Manufacturer guidance1 and 2 metre widths are stock items. 3, 4, 5 and 6 metre available on special order (minimum quantities apply). |
Roll length (minimum) | 50 m.Guidance for specification option: Up to 150 m. 100 m.Manufacturer guidanceStandard rolls 100 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polypropylene Guidance for specification option: Virgin fibre |
Manufacturing plant location | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 25 year |
