Geotextile - PPT Nonwoven Recycled Polypropylene
Verified by manufacturer 3 months ago
150 g/m²
150 g/m²
ISO 9001 Quality Management
Certificate type

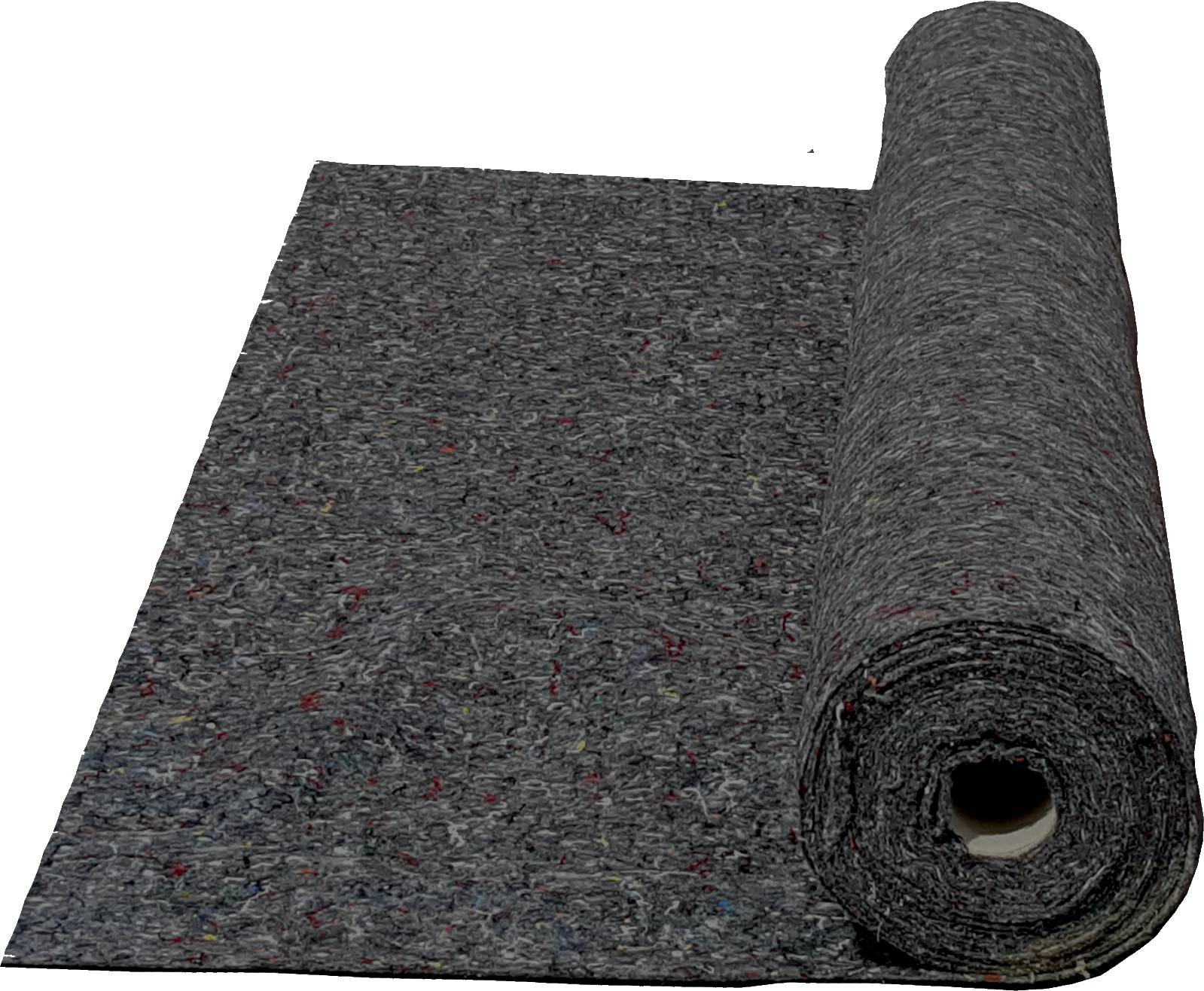

Non-woven recycled geotextile that is needle punched and calandered. Produced without using of any glues or chemical binders. Suitable as a sustainable separation, filtration or protection layer.
Application
- Filtration for roof gardens, planters and landfills.
- Separation layers.
- Sustainable option for Green Roof applications.
- Suitable option for sustainable construction practices.
- Filtration layers.
- Protection layers.
- Cushioning and separation layers which do not require high tensile strengths.
- Separation loose laid layers which are not always mechanically fixed.
Description
Recycled polyester geotextile fabric.
Features and benefits:
- 400 and 500 GSM options are particularly suitable for Green Roof applications to meet GRO code specification.
- Needle punched and calandered.
- Produced without the use of glues or chemical binders.
- Thermally bonded manufactured without staples, glues or chemicals.
- Made from sustainable recycled polyester.
- Good filtration, protection and separation properties.
- Available in a variety of thicknesses and tensile strengths.
General information
Color | Grey Other |
Finish | Micro-textured |
Material | Polypropylene |
Shape | Square Rectangle |
Length | 50000 mm |
Width | 1000 mm 2000 mm 3000 mm 4000 mm 5000 mm Manufacturer guidance1 and 2 metre width is stock item. 3, 4, 5 and 6 metre lengths are available on special order (minimum quantities apply). |
Height | 1.2 mm 1.6 mm 1.8 mm 2.0 mm 2.2 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q24/17 Permeable clay paver paving Q24/12 Permeable concrete block paving J31/130 Inverted roof coating R12/492 Geotextile membranes – filter R13/205 Filter drains with geotextile trench lining J21/150 Paving J21/10 Warm deck roof coating Q24/128 Permeable clay paver paving – no infiltration Q24/126 Permeable clay paver paving – partial infiltration Q24/124 Permeable clay paver paving – total infiltration Q24/119 Permeable concrete block paving – no infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/115 Permeable concrete block paving – total infiltration R13/625 Precast concrete soakaways J21/20 Skirtings/ Vertical work D20/58 Geotextile sheet R13/220 Filter drains with pipe and geotextile trench lining Q20/170 Geotextile filter/ separator membrane J21/180 Skirtings/ vertical work J44/280 Geotextile protective lining J21/110 Warm deck roof coating R13/215 Filter drains with geotextile-wrapped pipe J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering R13/250 Drainage blankets J41/385 Filter layer R12/67 Design – Soakaway systems R13/620 Granular fill soakaways J21/120 Inverted roof coating D45/315 Deep drainage R17/365 Geotextile membrane for septic tank drainage fields R17/362 Geotextile membrane for precast concrete soakaways R17/360 Geotextile membrane for granular fill soakaways R16/375 Geotextile membrane for groundwater pressure relief drainage Q37/360 Filter membrane Q31/515 Tree pit drainage Q31/390 Geotextile fabric lining for aquatic/ Marginal planting Q31/385 Mulch matting/ Geotextile fabric Q26/330 Sand surfacing Q26/320 Woodchip surfacing Q26/310 Bark surfacing Q24/133 Natural stone sett paving overlay Q24/130 Natural stone sett paving Q24/123 Conventional clay paver paving overlay Q24/120 Conventional clay paver paving Q24/113 Conventional concrete block paving overlay Q24/110 Conventional concrete block paving D41/240 Geotextile D20/550 Geotextile sheet Q25/365 Geotextile sheet |
Specification data - Plastics sheets
Material | Polypropylene.Guidance for specification option: PPT Geotextile is a non-woven, recycled polypropylene material |
Purpose | Filtration.Separation layer. |
Third-party certification | CE 1213-CPR-3548. |
Performance characteristics | |
Tensile strength (minimum) | To EN ISO 10319, 2.0 kN/m (MD); 2.5 kN/m (CMD). |
Elongation to break | To EN ISO 10319, 70% (MD); 70% (CMD). |
Recycled content | Fully recycled. |
Form | Non-woven. |
Physical properties | |
Colour | Grey.Manufacturer guidanceMulti-coloured strands and fibres. |
Weight (minimum) | 150 g/m². |
Dimensions | |
Thickness (minimum) | 1.2 mm. |
Width (minimum) | 1 m.2 m.3 m.4 m.5 m.6 m.Manufacturer guidance1 and 2 metre width is stock item. 3, 4, 5 and 6 metre lengths are available on special order (minimum quantities apply). |
Roll length (minimum) | 5 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Brochure - Geotextile General

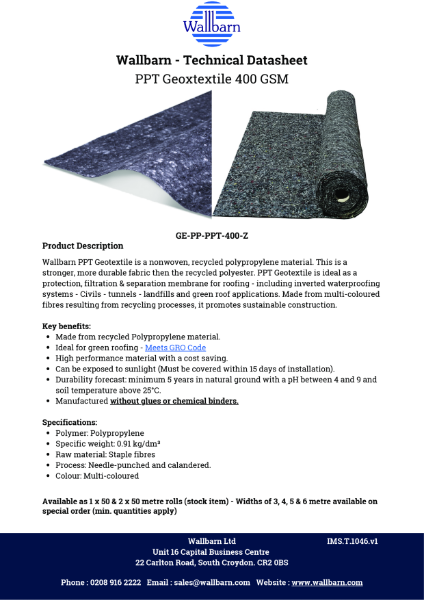

Datasheet - Geotextile PPT 400GSM

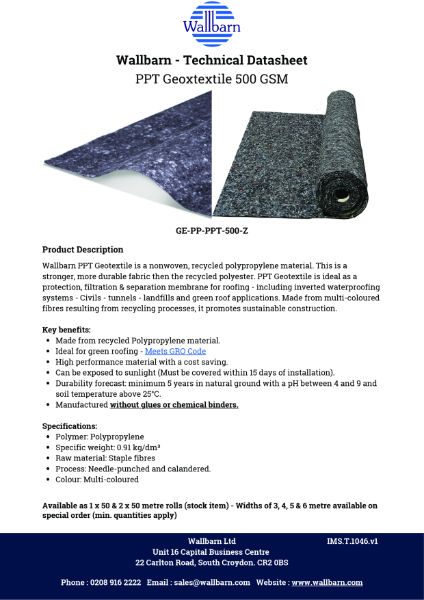

Datasheet - Geotextile PPT 500GSM

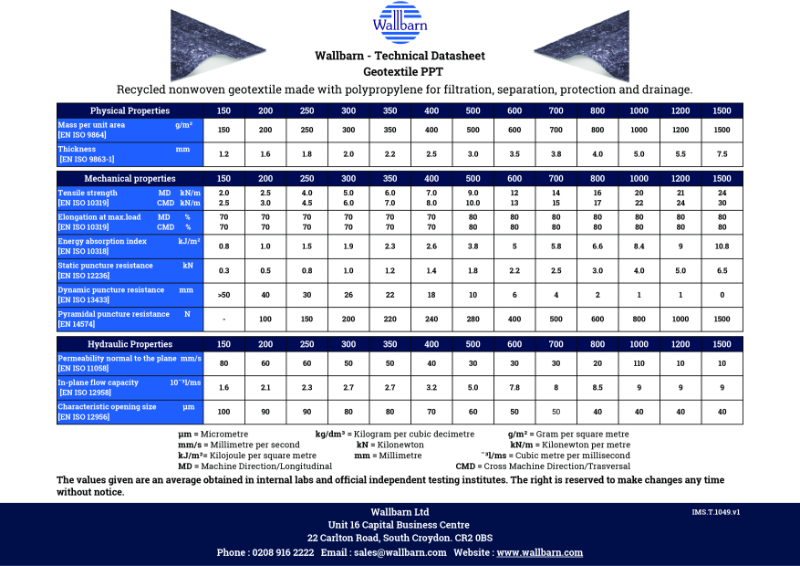

Datasheet - Geotextile PPT Nonwoven Recycled Polypropylene Full Range
