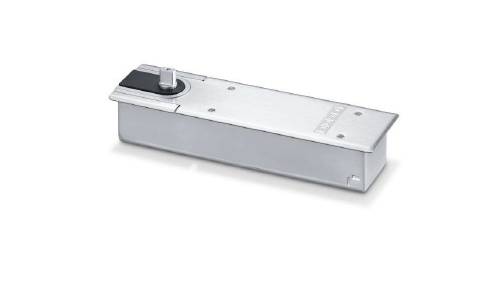

GEZE TS 500 NV Floor Spring For Single and Double Action Doors EN 1-4 (HUKP-0404-10) - Door accessories
Verified by manufacturer 2 days ago
Certifire Certificate
Certificate type
Floor spring for single and double action doors.
Application
- Suitable for both single and double action fire and smoke doors.
- For up to one hour on timber door sets.
- For steel doors and frames up to four hours' fire-resistance.
Description
Floor spring for single and double action doors.
Features and benefits:
- For single and double action frequently used doors.
- Maximum opening angle 170°.
- Fixed backcheck function.
- Closing force, speed and latch action adjustable.
- All functions adjustable from above after installation.
- Maximum door width 1100 mm and 150 kg weight.
General information
Color | Black Bronze Gold Silver Manufacturer guidanceRAL colour available to special order. |
Finish | Satin Matt Polished |
Material | Stainless steel |
Shape | Rectangle |
Length | 278 mm |
Width | 42 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/450 Floor springs P21/14 Floor springs |
Product range |
Specification data - Floor springs
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Door closer power size | 4. |
Safety | 1. |
Closer functions | Back check. |
Materials and finishes | Stainless steel.Satin.Matt.Polished. |
Colour | Satin stainless.Silver sprayed.Matt black.Light bronze.Dark bronze.Hafele black.Polished brass.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 259. |
Dimensions | 278 x 42 mm. Guidance for specification option: Length x width. |
Maximum weight | 150 kg. Guidance for specification option: Maximum door weight. |
Opening | 170°. |
Third party certifications
