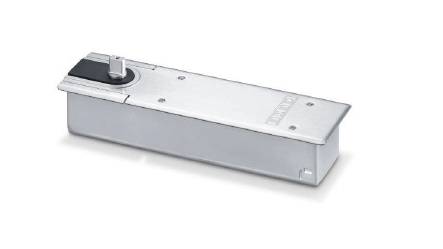

GEZE TS 550NV F-P Floor Spring For Double Action Doors EN 3-6 (HUKP-0404-12) - Door accessories

Verified by manufacturer 2 months ago

Hafele UK Ltd

Floor spring for double action doors.

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suitable for double action doors.
  • For one hour on timber door sets.
  • For steel doors and frames up to four hours' fire-resistance.

Description

Floor spring for double action doors.


Features and benefits:

  • For double action, frequently used doors.
  • For fire and smoke protection doors in double action.
  • Delayed closing adjustable up to 80° opening angle.
  • Closing force, speed and latch action adjustable.
  • All functions adjustable from above after installation.
  • Maximum door width 1400 mm and 300 kg weight.

General information

Color

Black

Bronze

Gold

Silver

Manufacturer guidance

RAL colour available to special order.

Finish

Satin

Matt

Polished

Material

Stainless steel

Shape

Rectangle

Length

342 mm

Width

54 mm

Manufacturer guidance

150 mm width when cover is applied.

Warranty description

Ten year

Uniclass

Pr_30_36_36_29 Floor springsPrimary

CAWS

P21/14 Floor springs

P21/450 Floor springs

Product range

Floor springs
Door closers

Specification data - Floor springs

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

3.

Safety

1.

Closer functions

Delayed closing.

Materials and finishes

Stainless steel.

Satin.

Matt.

Polished.

Colour

Satin stainless.

Silver sprayed.

Matt black.

Light bronze.

Dark bronze.

Hafele black.

Polished brass.

Satin brass.

RAL colour.

Manufacturer guidance

Other finishes available to special order.

Maximum weight

300 kg.

Guidance for specification option:

Maximum door weight.

Opening

170°.

Dimensions

342 x 54 mm

Guidance for specification option:

Length x width.

Third-party certification

CE marked and Certifire approved CF 259.
