GSM Communicator - Alerting Unit

Verified by manufacturer 3 months ago

Andel Ltd

Compact industrial unit for alerting, monitoring and control. Ability to send unlimited SMS and email messages.

Jump to:
+44 (0)1484 845000 Website

Application

Wall-mounted.

Description

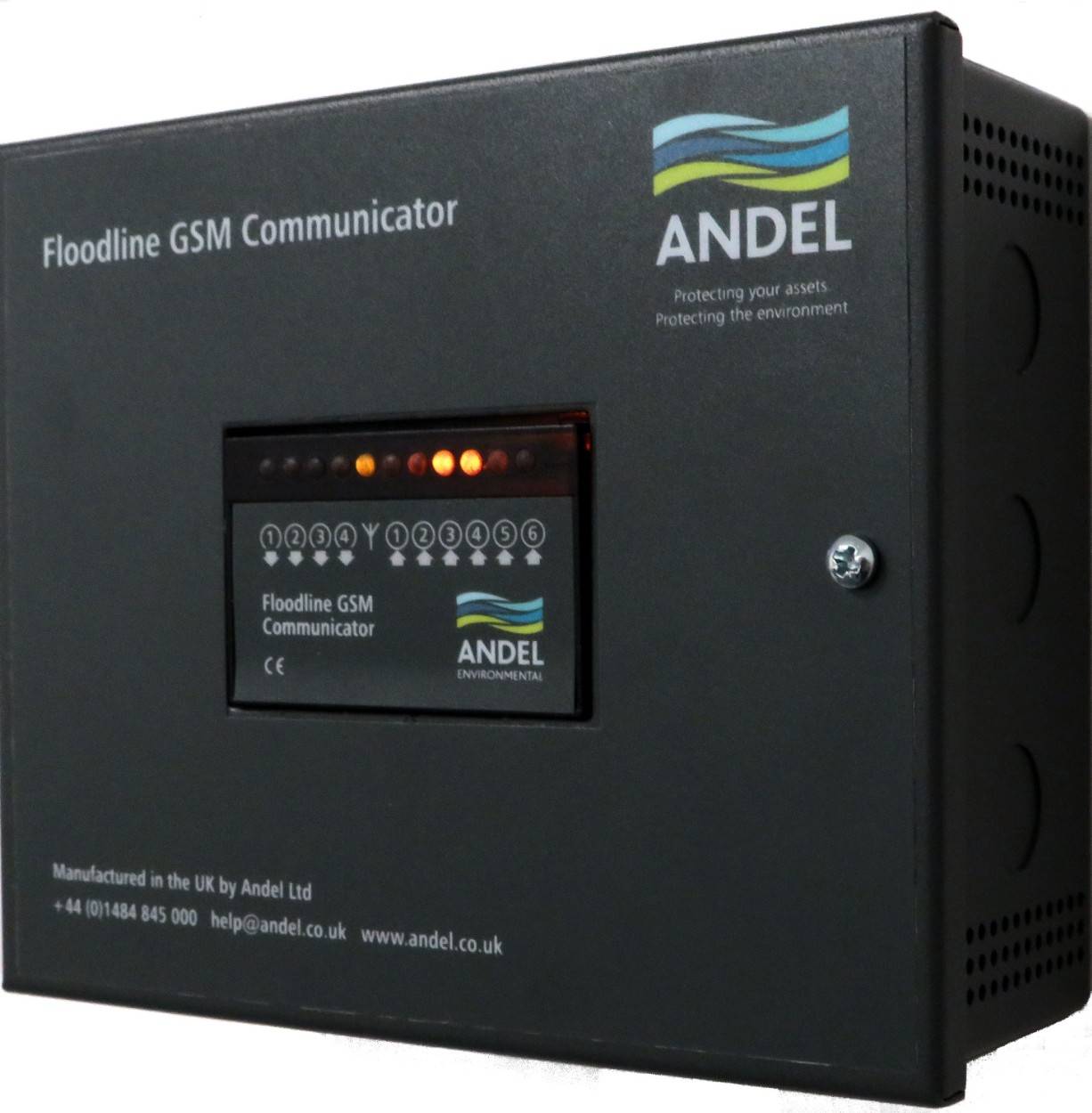

The Floodline GSM Communicator is a compact industrial alerting unit for alerting, monitoring and control through Wi-Fi and mobile networks.


The unit can be simply configured to send custom alert messages when inputs trigger, analogue values change, timers have elapsed or at scheduled times. The GSM communicator allows remote monitoring to any Andel/ Floodline control panel and react quickly when an event occurs. There are options for remote and local control and everything is programmable by means of simple behavioural rules.


Features and benefits:

  • 4G and Wi-Fi communications.
  • Six digital inputs including pulse and time counter features.
  • Four software configurable analogue inputs.
  • Rule based alerts and actions.
  • Multiple message recipients
  • Send a mix of SMS, email, chat alerts messages.
  • Four dry contact relay outputs for remote control.
  • Modbus TCP and Wiegand interface.
  • Local and remote expandability.
  • Backup battery with monitoring and working time counter.
  • Power fail alerts.
  • Optional SD card interface up to 32 GB.
  • Optional SD card based local WebServer.
  • Upgrade over the air (command).

General information

Color

Black

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

65 mm

Manufacturer guidance

Depth.

Width

181 mm

Height

150 mm

Warranty description

Ten year

Uniclass

Pr_75_50_18_48 Liquid presence detection programmable control unitsPrimary

Specification data - Liquid presence detection programmable control units

Nominal voltage

230 V a.c.

Controls

-

Display type

Status LEDs.

Display the following information

Zone where the leak has occurred.

Features

Rule-based alerts and actions.
Multiple message recipients.
Power fail alerts.

Battery backup capacity

-

Manufacturer guidance

Consult manufacturer for details.

Communications

-

Outputs

Four relays 3 A at 240 V a.c.

Network protocols

Caller ID call, custom SMS, email, chat, HTTP Post and schedule.

Enclosure

-

Exposure limits

-20℃ to +60℃.

Security

Lockable with key.

Mounting method

Suitable for walls.

Accessories

Not required.

SD card interface up to 32 GB.

SD card based local webserver.

Dimensions

150 x 181 x 65 mm.

Manufacturer guidance

Height x width x depth.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

GSM Communicator

GSM Communicator
