Gustafs Lamellow+ Walls

Verified by manufacturer 28 days ago

Linear

LSA Projects Ltd Variant:
Third party certifications:
  • FSC

    FSC

    Certificate type

  • EPD

    EPD

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Acoustic linear panels for walls.

Jump to:
+44 (0)1376 501199 Website

Application

Suitable for commercial, education, leisure and transport environments.

Description

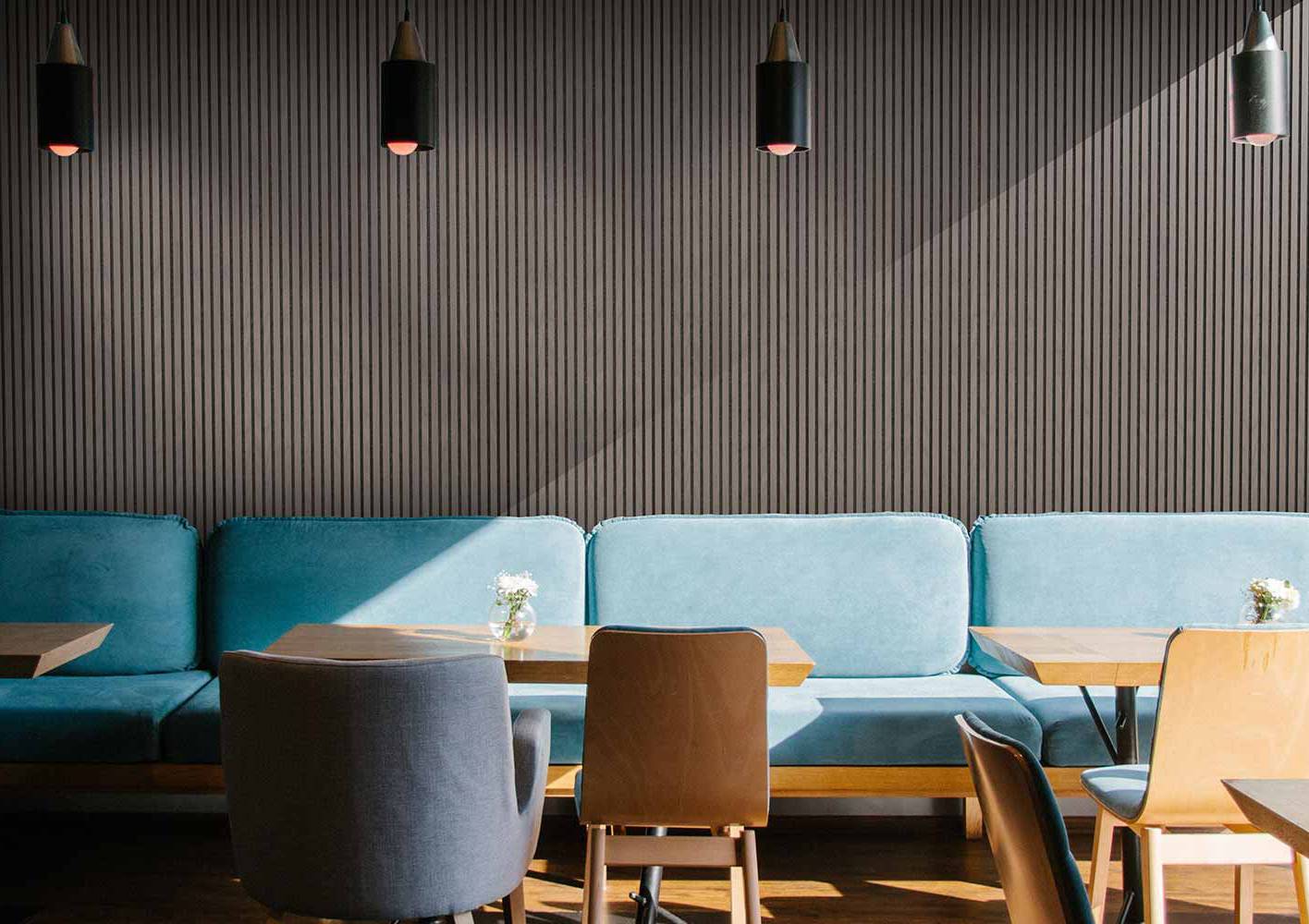

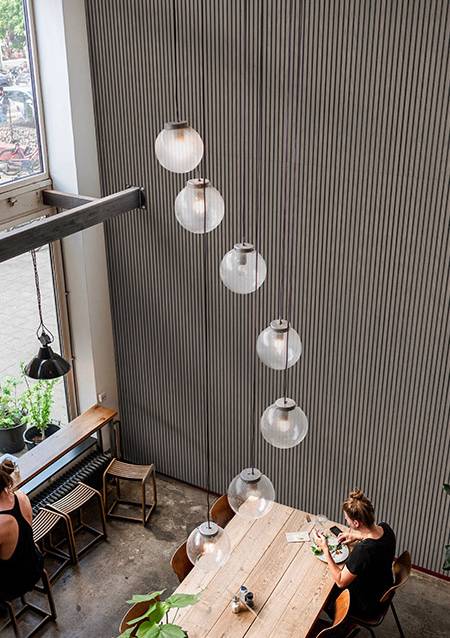

Gustafs Lamellow+ Walls is a panelized linear wall system with up to Class A acoustic control built into the panels with no need for addition acoustic lining materials.


Lamellow+ is built from a rigid acoustic fleece board in a choice of light or anthracite grey and faced with gypsum core ribs with natural veneer to the front edge. The complete panel construction and installation achieves Euroclass B-s1,d0 for resistance to fire and can be delivered with FSC certified veneer.


Lamellow+ Barcode/Linear is built in rectangular modules of 2400 x 600 mm and is designed to suit most floor to ceiling spans with options for matching veneer wrapped or felt framing profiles for exposed edges and corners.


The Puzzle panels are available in four designs and modules of 2400 x 600 mm, 1200 x 600 mm and 600 x 600 mm.


Lamellow+ panels can be installed to curved surfaces down to a radius of 1000 mm and the system eliminates the need for additional Capax installation profiles. Panels are installed using black screws disguised at regular intervals between the ribs.


BREEAM marked and VOC regulated.

General information

Color

Black

Brown

Beige

Grey

Finish

Veneered

Material

Gypsum

Wood

Shape

Rectangle

Length

600 mm

1200 mm

2400 mm

Width

600 mm

Height

22 mm

Warranty description

Two year

Uniclass

Ss_25_25_75_95 Wood veneered panel lining systemsPrimary
Ss_25_25_45_47 Linear wall lining systems
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/160 Proprietary

K13/160 Proprietary

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

K13/120 Wood-veneered panel lining

K13/120 Wood-veneered panel lining

Specification data - Wood veneered panel lining systems

Panels

Veneered gypsum particleboard ribs with acoustic felt backing.

Fasteners

Screws.

Guidance for specification option:

15 screws in the felt, between the ribs.

Nails.

Guidance for specification option:

15 nails in the felt, between the ribs.

Glue.

Guidance for specification option:

15 gluing points per panel.

Manufacturer guidance

Panels can be used for convex curved installation at minimum 1000 mm radius. The Lamellow+ panels are installed with imbricated, hidden joints.

Finish

Veneered.

System accessories

Not required.

Lamellow+ framing profiles in matching veneer.

Felt joining strips.

Reaction to fire

To EN 13501-1, Euroclass B-s1, d0.

Panel facing

Veneer - Wild oak smoked.

Guidance for specification option:

Felt - Anthracite.

Veneer - Wild oak grey.

Guidance for specification option:

Felt - Anthracite.

Veneer - Knotty oak.

Guidance for specification option:

Available with Anthracite felt or Wool grey felt, insert requirements.

Veneer - American oak.

Guidance for specification option:

Available with Anthracite felt or Wool grey felt, insert requirements.

Veneer - Walnut.

Guidance for specification option:

Felt - Anthracite.

Show more

Panel weight

19.4 kg per 1.44 m².

Design

Linear rectangular design.

Panel dimensions

22 x 600 x 2400 mm.

Manufacturer guidance

H x W x L

Panel spacing

13 mm.

Ribs

13 x 27 mm.

Manufacturer guidance

L x W

Sound absorption class

αw 0.30-NCR 0.55.

Guidance for specification option:

Wall, direct installation (Class D).

αw 0.95-NCR 0.95.

Guidance for specification option:

Wall, plus 45 mm mineral wool (Class A).

Surface treatment

Triple UV coating system, natural woodgrain/ oil look.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Recyclability

Product is demountable and reusable within expected lifespan

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

94 %

Guidance for specification option:

Ribs.
