A fire rated timber veneer wall lining system.

Jump to:
+44 (0)1376 501199 Website

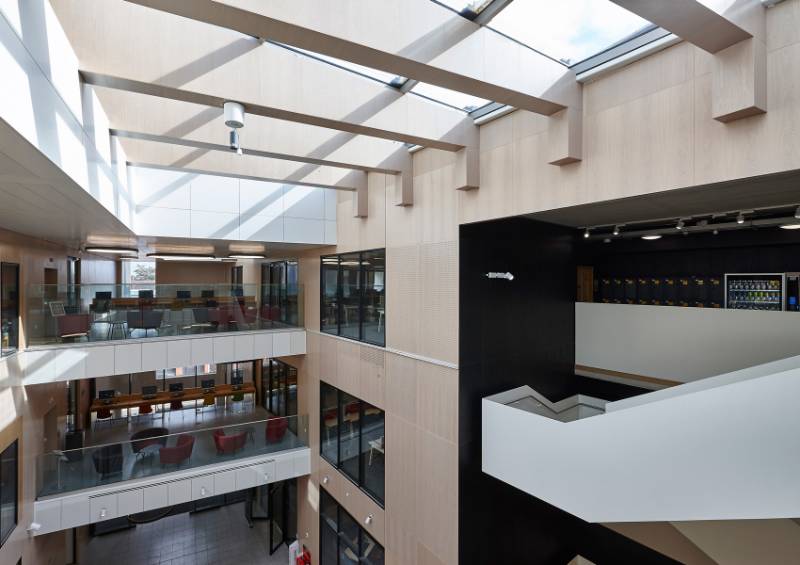

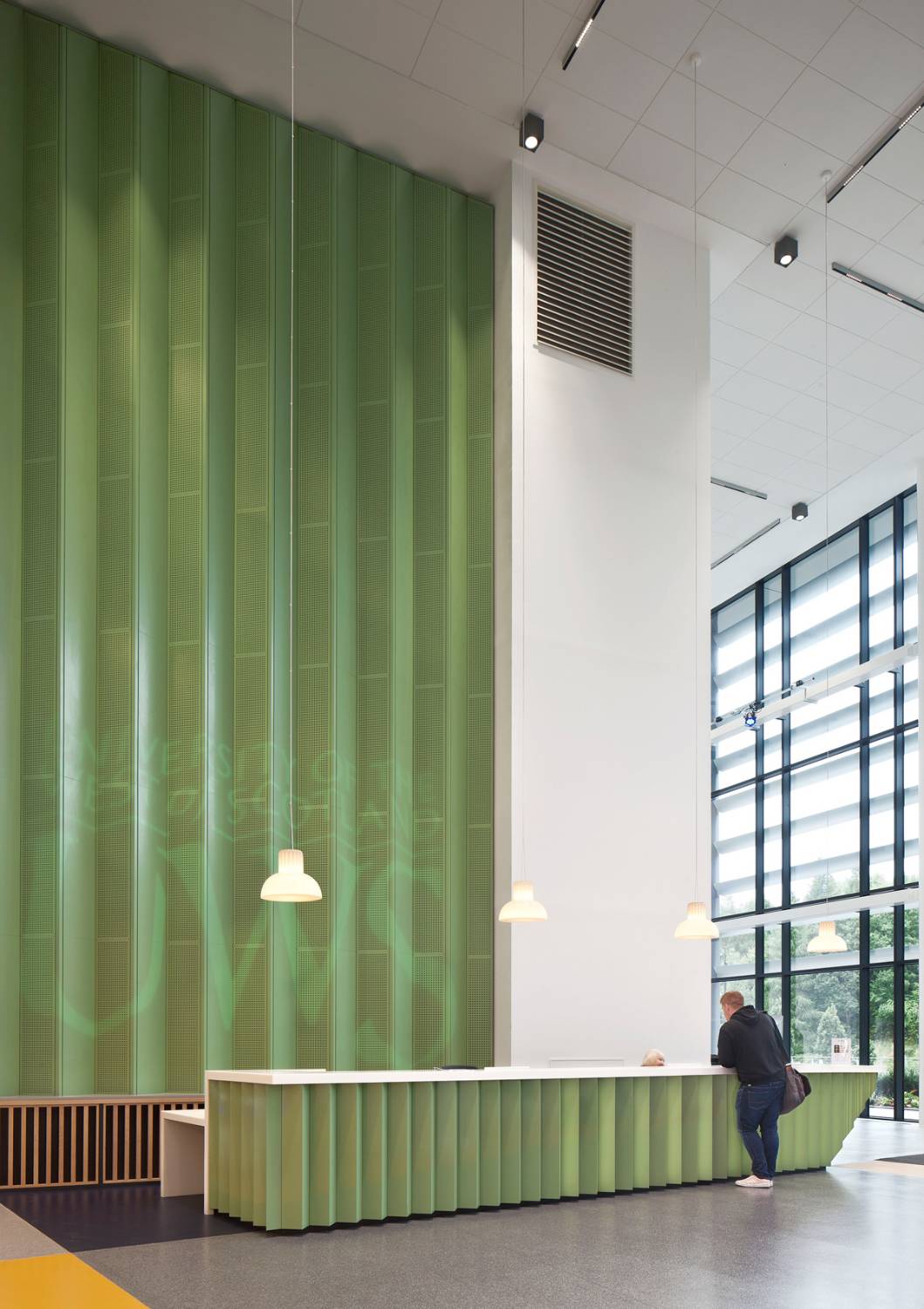

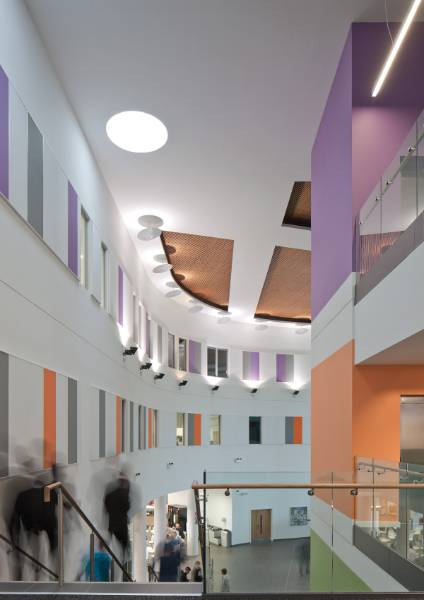

Application

Suitable for public buildings such as conference rooms, concert halls schools and auditoria.

Description

Gustafs Panel System is available in numerous standard and specialist veneers and finishes with or without acoustic control.


The distinctive Capax installation profiles for wall and ceiling installation allow for secure and invisible fixing across your space with styles to fit every project.


The gypsum core panel system is classed as A2-s1, d0 for resistance to fire, meaning the spread of flames, smoke production and flaming droplet production are minimal and comparable to metal or mineral cladding.


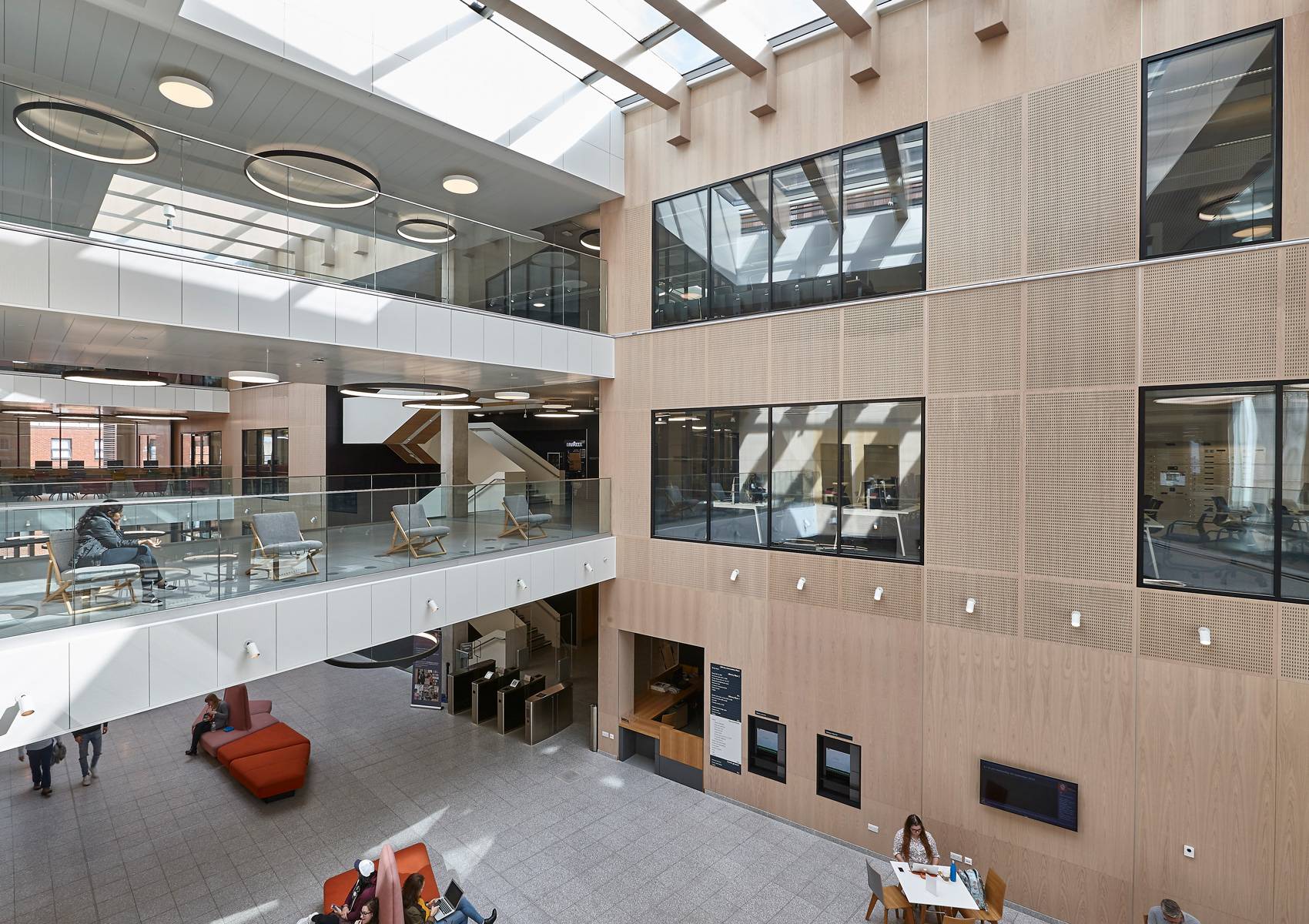

Standard and bespoke acoustic perforations are available, as well as the invisible Nano perforation, achieving up to Class B for acoustic control.

General information

Color

Brown

Beige

Black

Blue

Bronze

Show more

Finish

Veneered

Laminated

Painted

Lacquered

Stained

Show more

Material

Gypsum

Wood

Shape

Rectangle

Square

Other

Triangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Ss_25_25_75_95 Wood veneered panel lining systemsPrimary
Ss_25_25_75_94 Wood panel lining systems
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/160 Proprietary

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

K13/160 Proprietary

K13/120 Wood-veneered panel lining

K13/120 Wood-veneered panel lining

Specification data - Wood veneered panel lining systems

System performance

-

Manufacturer guidance

Insert requirements or omit.

Acoustic properties: Contact LSA Projects for a full acoustic report. LSA projects recommend seeking the advice of a professional acoustic consultant.

Battens

Capax Assembly System fixed into timber battens.

Panels

Gypsum particleboard (BF).

Guidance for specification option:

Panel thickness: 13.2 mm.

Panel construction:

  • Gypsum 81%
  • Cellulose Fibres 12%
  • Solid wood edge strips and veneer 3%
  • Water 2%
  • Craft Paper 1%
  • Adhesive 1%
  • Lacquer <0.3%

Fasteners

Proprietary Capax invisible fixing system.

Finish

Lacquered, clear.

Guidance for specification option:

Available in a range of gloss finishes.

Oiled.

Stained.

Pigmented.

Solid paint.

Guidance for specification option:

Available in a range of colours in accordance with, for example, NCS or RAL codes up to a gloss rate of up to 50.

Art.

Guidance for specification option:

Gustafs BF-Print, Routed patterns, or Intarsia wood inlays.

Lacquered, pigmented.

Manufacturer guidance

Consult manufacturer's literature for further information.

System accessories

Not required.

Felt backing, black.

Guidance for specification option:

Standard. Acoustic panels only.

Felt backing, white.

Guidance for specification option:

Acoustic panels only.

Reaction to fire

To EN 13501-1, Euroclass A2-s1, d0.

Guidance for specification option:

Full details available upon request.

Type

Fixed panels.

Demountable panels.

Manufacturer guidance

Panel edges to suit fixed/demountable installation.

See Gustafs Catalogue 2023 for details.

Panel facing

Nature veneer - Oak.

Nature veneer - Birch.

Nature veneer - Rotary cut Birch.

Nature veneer - Maple.

Nature veneer - Ash.

Show more

Manufacturer guidance

Direction of veneer: Always on the length.

Acoustic insulation

Not required.

Mineral wool (by others).

Guidance for specification option:

Insulation behind acoustic panels typically Rockwool (minimum density 28 kg/m3). To be supplied by installer, not LSA.

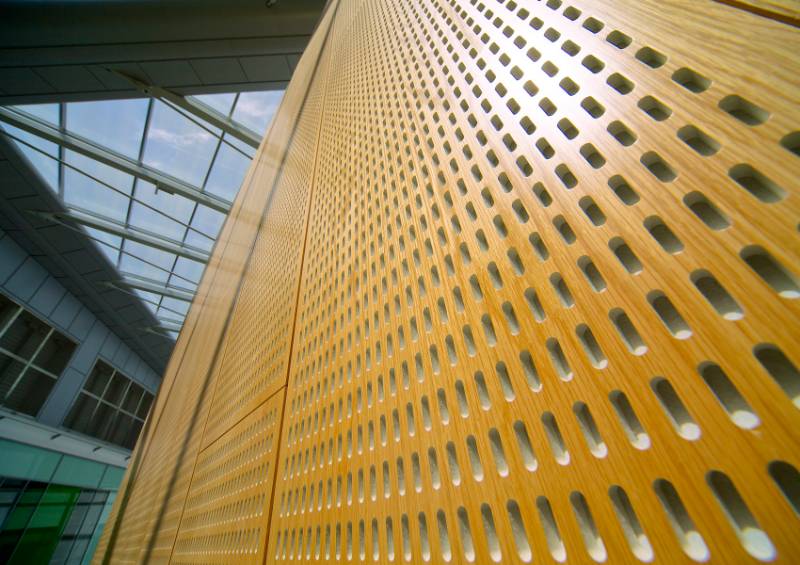

Perforation pattern

Plain.

Nano.

Guidance for specification option:

0.5 mm, open area 5.9%.

PD8.

Guidance for specification option:

Domino perforation 8 mm, open area 24%. Absorption class B.

PH8.

Guidance for specification option:

Perforation 8 mm, open area 12%. Absorption class D.

PH5.

Guidance for specification option:

Perforation 5 mm, open area 5%. Absorption class D.

Show more

Panel dimensions

As drawing.

Guidance for specification option:

Panel sizes to suit architectural drawings, consult manufacturer for sizing advice and insert requirements.

Panel weight

15.7 kg/m².

Edges

Manufacturer guidance

See Gustafs Catalogue 2023, p40, for details.

Aluminium profiles

Capax joint profile 3201.

Guidance for specification option:

Closed joints.

Capax joint profile 3217.

Guidance for specification option:

Closed joints.

Capax joint profile 3208.

Guidance for specification option:

Closed joints.

Capax joint profile 3202

Guidance for specification option:

Open joints, 10, 13 and 15 mm.

Capax joint profile 3212

Guidance for specification option:

Open joints, 10, 13 and 15 mm.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Gypsum

Wood

Recyclability

Product is demountable and reusable within its expected lifespan.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

94 %

Manufacturer guidance

All products based on fibre gypsum boards have a recycled content of at least 94%. 17% of the final panel is post consumer recycled.

Third party certifications

Third party certifications

EPD

EPD

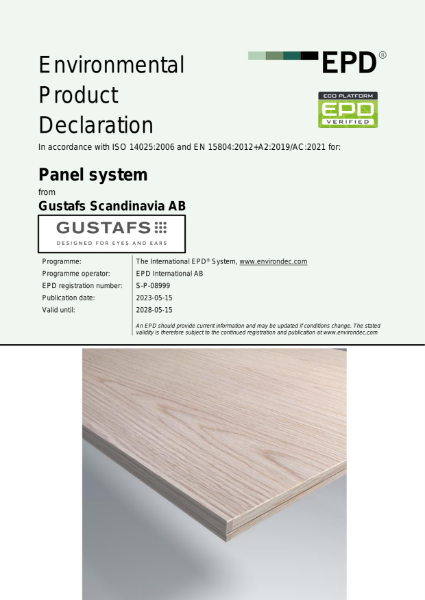

Gustafs Panel System EPD

FSC

FSC

LSA Projects Ltd FSC Certificate

FSC

Gustafs FSC Certificate

Literature

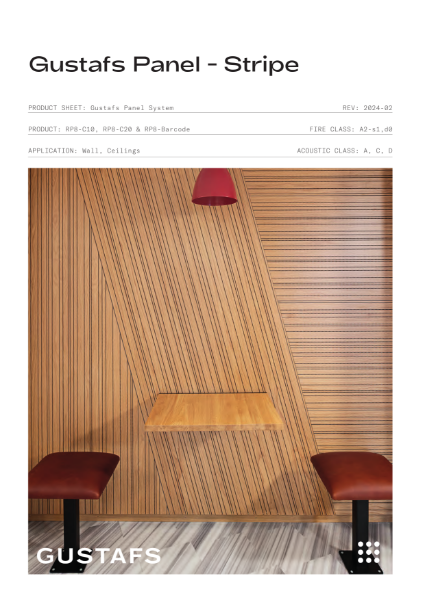

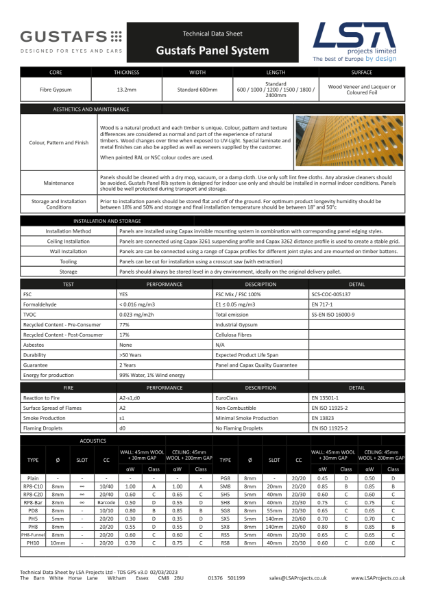

Gustafs Panel System Data Sheet

Gustafs Panel System Data Sheet

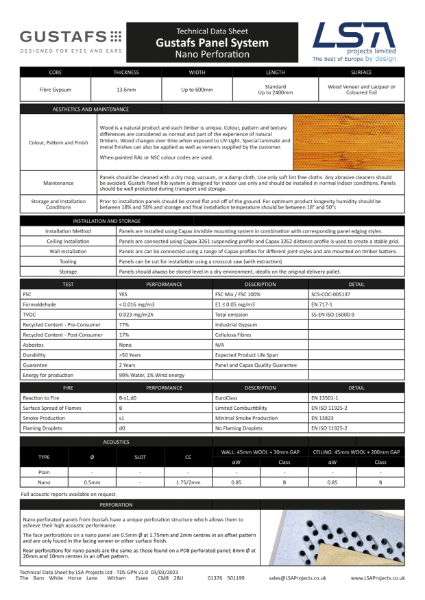

Gustafs Panel System Nano Data Sheet

Gustafs Panel System Nano Data Sheet

Gustafs Core Material Matrix

Gustafs Core Material Matrix

Gustafs Customisations Data Sheet

Gustafs Customisations Data Sheet

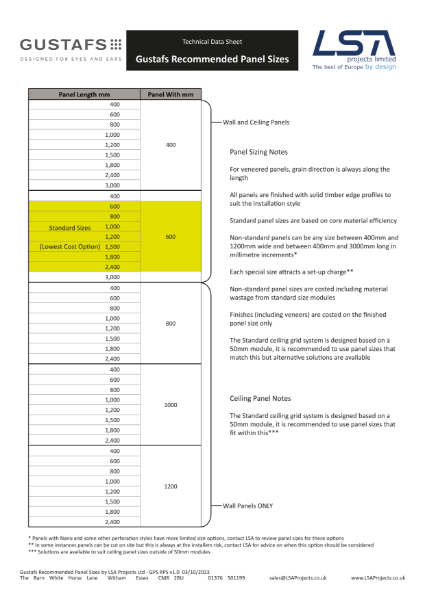

Gustafs Recommended Panel Sizes

Gustafs Recommended Panel Sizes

Gustafs Surface Finish Guide

Gustafs Surface Finish Guide

Gustafs Product Sheet Nano Perforation

Gustafs Product Sheet Nano Perforation

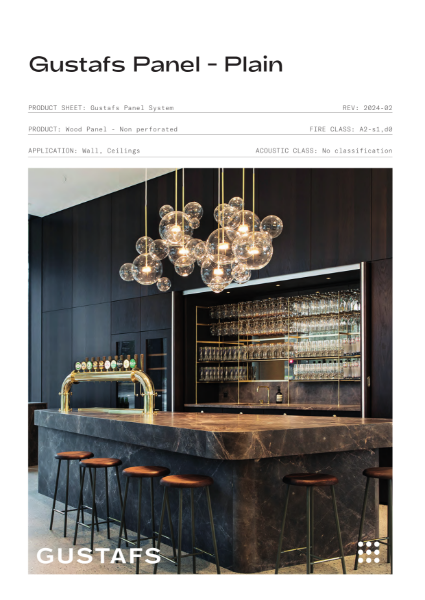

Gustafs Product Sheet Plain Panels

Gustafs Product Sheet Plain Panels

Gustafs Product Sheet Linear Perforations

Gustafs Product Sheet Linear Perforations

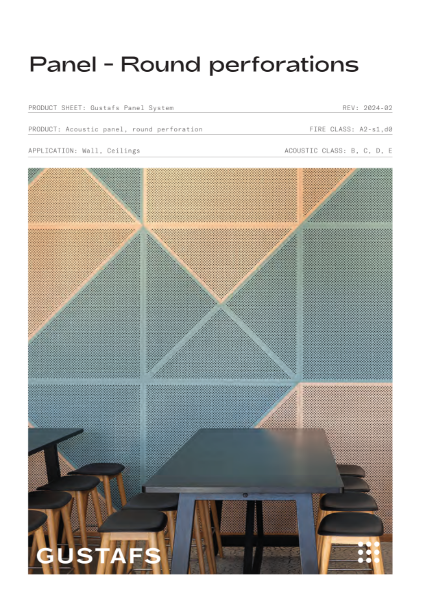

Gustafs Product Sheet Round Perforations

Gustafs Product Sheet Round Perforations

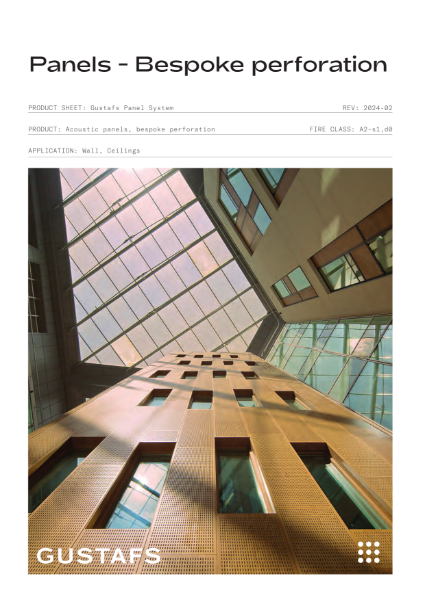

Gustafs Product Sheet Slot and Bespoke Perforations

Gustafs Product Sheet Slot and Bespoke Perforations

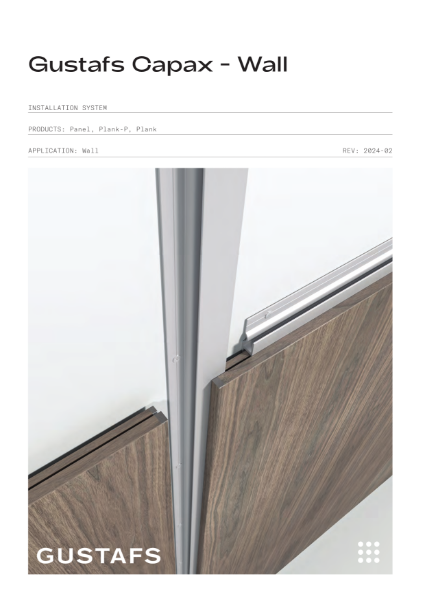

Gustafs Panel System Installation Guide for Walls
