H-BAU KUNEX® Waterproofing Joint Tapes

Verified by manufacturer 2 months ago

H-BAU KUNEX® FA

J & P Building Systems Variant:

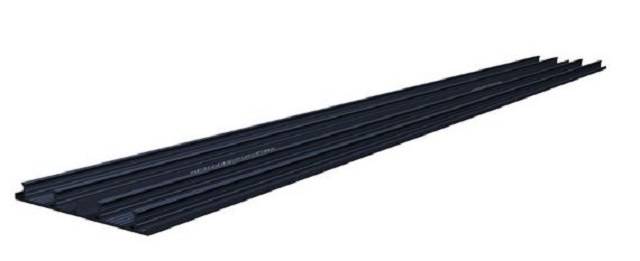

Internal or external thermoplastic joint tapes for waterproofing concrete joints

Jump to:
+44 (0)1844 215 200 Website

Application

Used for sealing movement or pour joints in concrete.

  • Foundation slab-wall, or wall-ceiling construction joint.
  • Floor-floor, wall-wall, or ceiling-ceiling construction and expansion joints.
  • Dummy joints in in-situ concrete or precast walls.

Description

KUNEX® internal or external thermoplastic joint tapes are used for sealing construction and expansion joints in concrete. The tape profile is designed to extend the circulation path of standing water in the joint, thereby sealing the joint. The joint tapes are welded together to ensure continuity of performance at connections between lengths or at changes in direction.


KUNEX® thermoplastic joint tapes can be used in all construction and expansion joints, horizontal or vertical, to resist pressurised and non-pressurised water, and soil moisture.


Features and benefits:

  • Versatile waterproofing of joints in concrete.
  • Reliable performance.

General information

Color

Black

Finish

Semi-gloss

Material

Polyvinyl chloride (PVC)

Shape

Other

Length

Bespoke

Width

100 mm

150 mm

190 mm

240 mm

320 mm

Show more

Height

8 mm

11 mm

Uniclass

Pr_35_90_15_15 Centrally placed polyvinyl chloride (PVC) elastomer flexible waterstopsPrimary

CAWS

E40/545 Compressible sealing strip system

Specification data - Centrally placed polyvinyl chloride (PVC) elastomer flexible waterstops

Width

-

Manufacturer guidance

Insert requirement, consult manufacturer's literature for information.

Profile

PVC-P joint closing tapes for superficial completion of expansion joints.

Colour

Green.

Sustainability data

Country of product manufacture

Germany

Literature

H-Bau Kunex Waterproofing Joint Tape Product Catalogue

H-Bau Kunex Waterproofing Joint Tape Product Catalogue
