HD Thermal Break Strip

Verified by manufacturer 26 days ago

AIM

High density mineral wool isolation strip for cladding and roofing.

Jump to:
+44 (0)1293 582400 Website

Application

  • Liner tray systems.

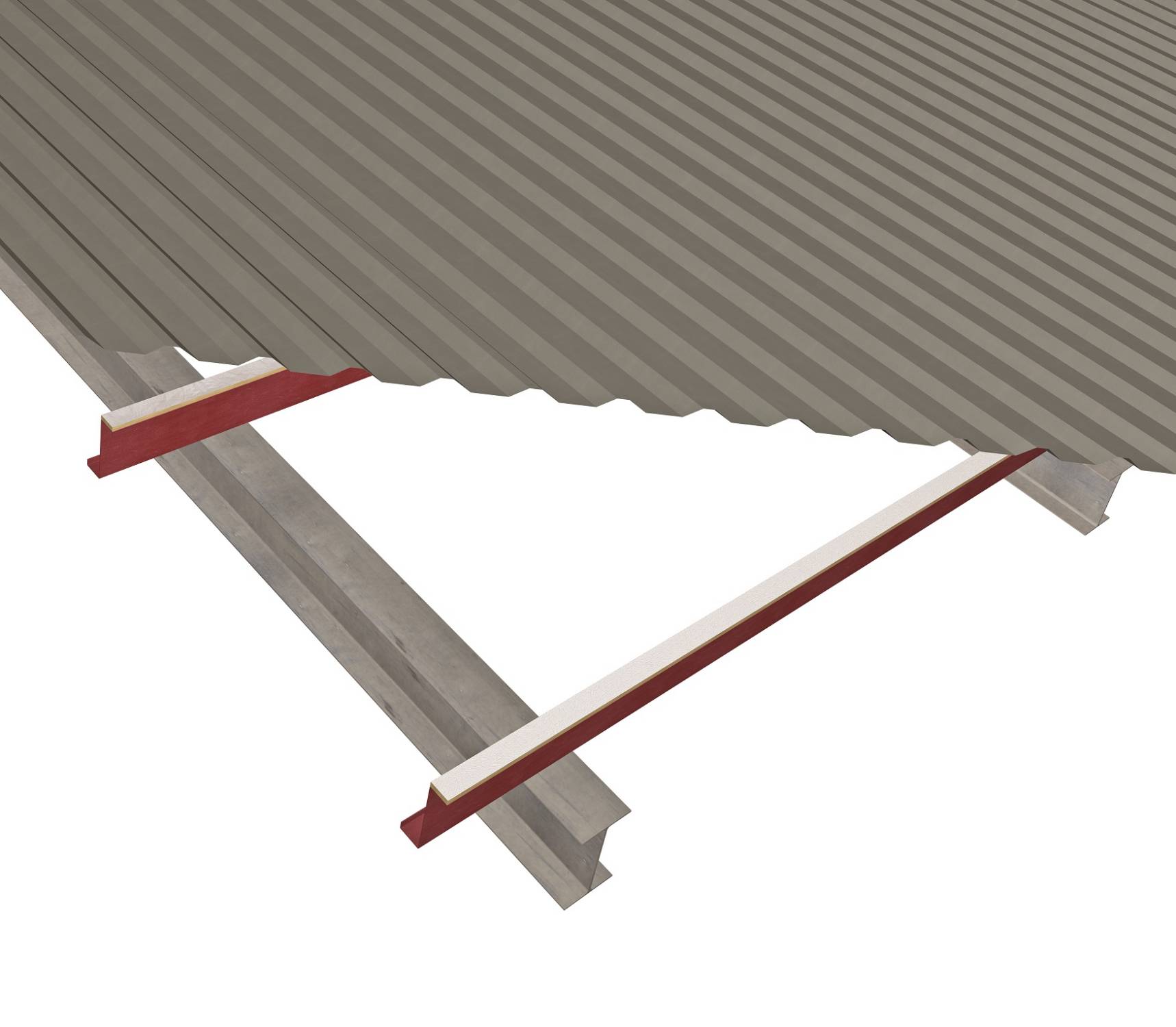

  • Metal cladding systems using zed purlins.
  • Prevents cold bridging.
  • Helps reduce direct sound transmission through the construction.

Description

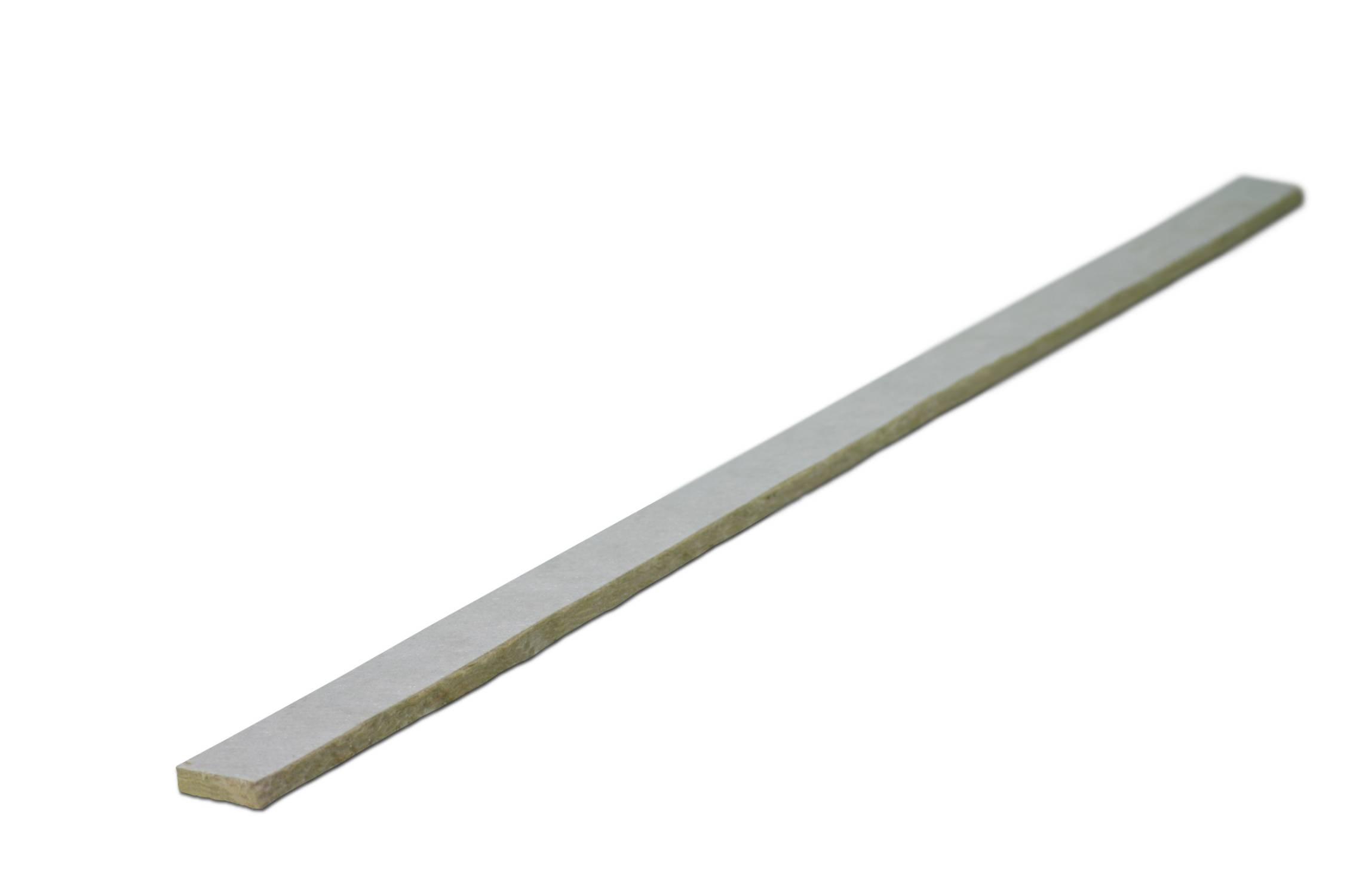

AIM HD Thermal Break Strip is manufactured from high density rock wool strips faced on both sides with glass tissue (alternatively Class 0 aluminium foil may be specified as a facing). AIM heavy duty spray adhesive is recommended to locate the strip in position prior to fixing the cladding. It is used in a range of applications to prevent cold bridging.


Features and benefits:

  • High density Rockwool strip.
  • Tissue faced on both sides.
  • Lengths: 1200 mm.
  • Width: 50 mm (or as specified).
  • Thickness: 12 mm (or as specified).
  • Prevents cold bridging and therefore condensation and heat loss.
  • Can help reduce direct sound transmission through the construction.

General information

Material

Mineral wool

Shape

Rectangle

Length

1200 mm

Width

50 mm

Bespoke

Guidance for specification option:

Bespoke sizes can also be manufactured.

Height

12 mm

Bespoke

Guidance for specification option:

Bespoke sizes can also be manufactured.

Manufacturer guidance

Thickness.

Uniclass

Pr_25_57_06_55 Mineral wool resilient strip sound insulationPrimary

CAWS

H31/10 Metal

H31/120 Metal

Product range

Thermal And Acoustic Insulation

Specification data - Mineral wool resilient strip sound insulation

Thickness (minimum)

12 mm.

Guidance for specification option:

Standard.

Bespoke.

Guidance for specification option:

Bespoke sizes can also be manufactured. Insert requirements.

Width (minimum)

50 mm.

Guidance for specification option:

Standard.

Bespoke.

Guidance for specification option:

Bespoke sizes can also be manufactured. Insert requirements.

Facing

Glass tissue - standard.

Aluminium foil.

Lengths

1200 mm.

ThermalConductivity

0.040 W/mK.

Durability

AIM HD Thermal Break Strips are chemically inert, will not sustain vermin and do not encourage the growth of rot, fungi, moulds or bacteria. They do not degrade under the usual conditions found in buildings and will perform effectively for the life of the building.

Environmental

Global warming potential = zero.

Guidance for specification option:

AIM HD Thermal Break Strips are manufactured from stone wool insulation which is universally recognised as being a sustainable and environmentally friendly material.

Accessories

Not required.

AIM Heavy Duty Spray Adhesive.

Compatibility

Compatible with all normal building materials.

Literature

AIM HD Thermal Break Strip Technical Guide 2022

AIM HD Thermal Break Strip Technical Guide 2022
