Application

  • For use in sterile and areas where hygiene is of importance.
  • For use in medium to heavy duty traffic areas.

Description

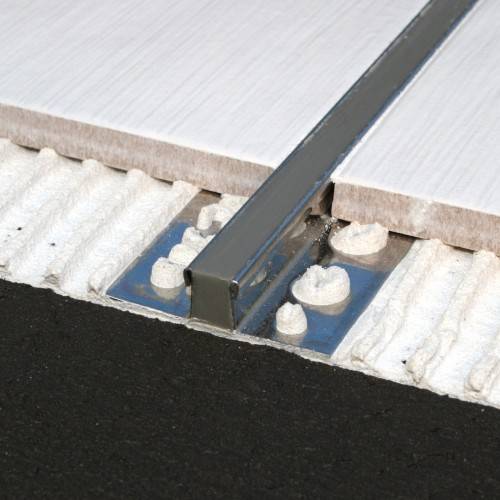

MHS range: Stainless steel:

A polyurethane infill is bonded to two stainless steel anchoring legs to provide a heavy duty stainless steel movement control joint. Stainless steel is specifically suited for use in sterile and areas where hygiene is of importance. The infill available in black and grey can also be matched to any RAL colour subject to minimum order quantities.

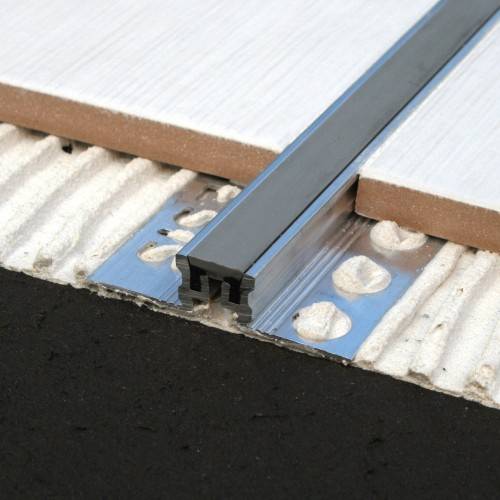

MSA range: Optimax aluminium:

Specifically designed for use in medium to heavy duty traffic areas. The co-extruded flexible infill manufactured from santoprene providing greater flexibility, chemical and weathering resistances. In addition the tensile strength is a contributing factor to the wear factor. The aluminium anchoring legs offer the edge protection to the tile so that the profile can be used in medium and heavy duty installations.


GFAM structural joints:

An all metal aluminium medium duty structural joint designed to accommodate movement +/- 10 mm.

General information

Color

Grey

Black

Beige

Material

Stainless steel

Steel

Aluminium

Polyurethane

Length

2500 mm

Height

8 mm

Guidance for specification option:

MSA ONLY

10 mm

12 mm

15 mm

18 mm

Guidance for specification option:

MSA ONLY

Show more

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/140 Marble tiling

Product range

Expansion Joints

Specification data - Metal section movement joints

Joint width (nominal)

8 mm.

Edging

-

Material

Stainless steel.

Colour

Black 16.

Dark grey 35.

Size:

2500 x 8 x 8 mm.

Guidance for specification option:

(L x W x D).

Type:

Stainless steel.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

MSA Partially (remove infill, recycle aluminium, dispose of infill) 50% MHS No (Infill bonded so cannot be recycled) 0% recycled content

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %
