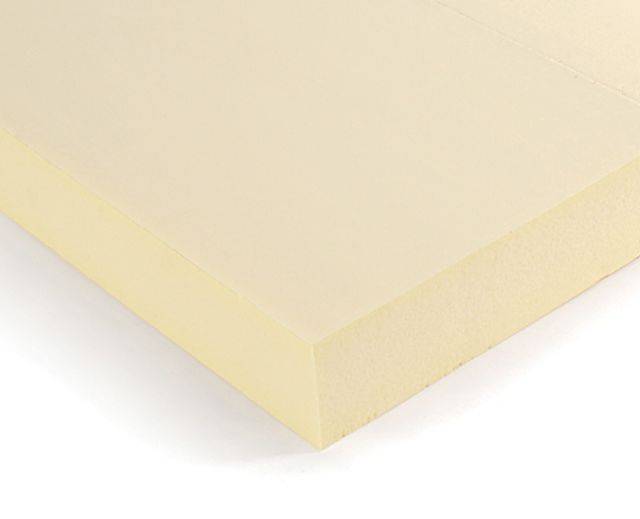

HEXATHERM® XFLOOR 300 - High Strength, XPS Floor Insulation
Verified by manufacturer 6 months ago
DoP
Certificate type
High thermal performance and compressive strength, low water absorption extruded polystyrene insulation for domestic, commercial and industrial applications.
Application
Insulation for domestic, commercial and industrial floor applications.
Description
Features and benefits:
- 100% recyclable.
- CFC and HCFC free.
- Closed cell structure.
- Code for Sustainable Homes Pol 1 compliant.
- Excellent life-long thermal performance.
- High compressive strength.
- Zero ODP & Less than 5 GWP.
- Available in thicknesses of 30–160 mm.
- Manufactured in accordance with BS EN 13374, and tested to BS EN 12267.
- Long term water absorption by immersion (% volume, to BS EN 12087): <0.7%.
Grade (to BS EN 826): CS300.
General information
Color | Yellow |
Finish | Smooth |
Material | High density extruded polystyrene (XPS) Guidance for specification option: (XPS) |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 40 mm 50 mm 60 mm 75 mm 80 mm |
Uniclass | |
CAWS | E20/200 Proprietary underslab insulation E20/30 Underslab insulation M10/290 Floating construction M10/40 Floating construction M11/220 Mastic asphalt floor underlay |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Third-party certification | ISO 9001:2015. ISO 14001:2015. |
Compressive strength (minimum) at 10% compression | 300 kPa. |
Thermal conductivity (maximum) | To BS EN 12667, 0.033—0.034 W/mK. |
Thickness | 50 mm.60 mm.75 mm.80 mm.90 mm.100 mm.120 mm.140 mm.160 mm. |
Edges | Square. |
Density | To BS EN 1602, 34 kg/m³ minimum. |
TemperatureRange | -50 to +75°C. |
Water vapour diffusion factor (to EN 12086) | 100—200 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Third party certifications

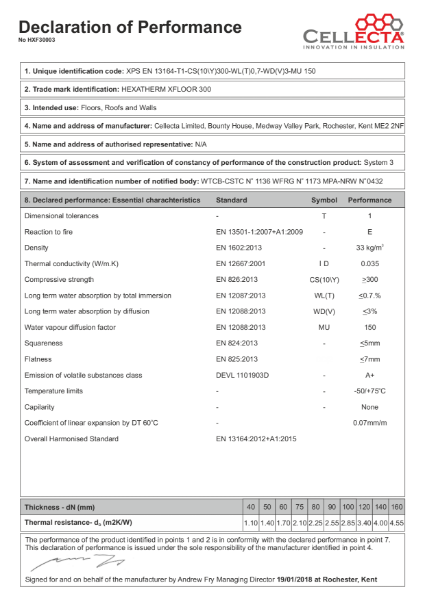

DoP
