High Security WC Pan-Disabled Version 60 mm Higher
Verified by manufacturer over a year ago
VR01-010
VR01-010
The High Security Disabled WC Pan has been designed for the toughest environments, and manufactured using advanced technologies.
Application
Designed for the toughest environments.
Description
The techniques employed to construct high security products are used very successfully in the field of ballistic armour. Additional properties include high resistance to cyclical stresses and dual stage failure mode. This provides excellent impact resistance and will not be subject to catastrophic failure. The surface of the product is a high-grade polyester gel coat specifically formulated for use with sanitaryware. It is formulated to produce high chemical resistance and resistance to ultraviolet effects.
Features and benefits:
- Concealed rear waste outlet.
- Large trap to reduce blockages.
- Optional facilities to lock-out water operations.
- Optional side infills.
- Optional disabled riser and spacer box.
- Designed for high-security applications.
- Virtually indestructible.
- High impact resistance.
- Anti-shatter moulded resin (avoiding the possibility of obtaining dangerous material, for self harm or to harm others).
- Home Office tested for anti-vandal, reduced-ligature and fire resistance.
- White sanitaryware grade gel coated finish.
- Hygienic non-porous surface.
- Attractive domestic look.
General information
Color | White |
Finish | Gloss |
Material | Polyester Polyethylene |
Shape | Circle Rectangle Manufacturer guidanceRound-ended rectangular. |
Length | 510 mm |
Width | 400 mm |
Height | 480 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns N13/311 Unisex accessible WC equipment packages (Document M) |
Product range |
Specification data - WC pans
Materials | |
Body | Glass Reinforced Plastic.Polyester gel coat.Polyethylene cistern. |
Finish and colour | White.Gloss. |
Product Reference | VR01-011 VR01-012 Guidance for specification option: Disabled WC pan white enamelled steel spacer box. VR01-013 Guidance for specification option: High security WC pan side infill, left side. VR01-014 Guidance for specification option: High security WC pan side infill, right side. VR01-015 Guidance for specification option: High security WC Pan with WC seat pre-fitted. |
Resistance | Cyclical stresses. Dual stage failure mode. |
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Dimensions | 510 x 400 x 480 mm. |
Type | High security WC pan. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Similar products from KWC DVS Limited
Bariatric WC with Heavy Duty Seat - G22080N

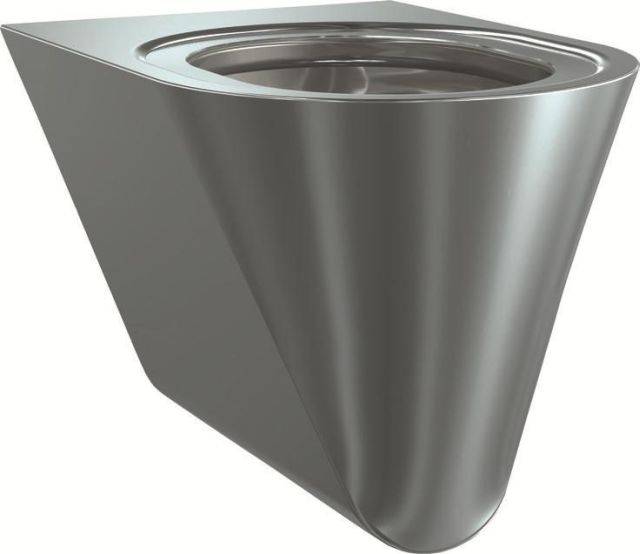

Campus Heavy Duty WC - HDTX597
Campus Wall Hung and Floor Standing WCs

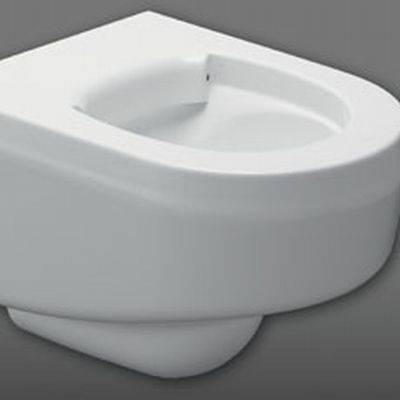

High Security Wall Hung WC Pan
