Hinge Rooflight - Sky.by.cantifix - Electric Lifted Hinged Rooflight
Verified by manufacturer 2 months ago

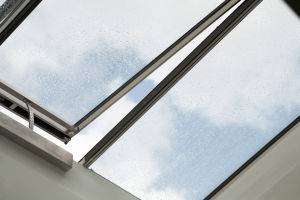

Hinge rooflight - bespoke configuration

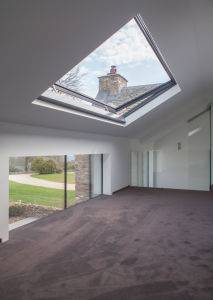

Hinge rooflight - bespoke configuration
Weathertightness Testing
Certificate type
Electric lifted hinged rooflight and floor for ventilation and pedestrian access.
Application
Rooflights and ventilation to an enclosed area below.
Description
Electric lifted hinged rooflight and floor for ventilation and pedestrian access.
Features and benefits:
- To bring ventilation to an enclosed area below without compromising safety or security.
- Thermally broken aluminium profile with fully cleated corners. Reinforced with stainless steel flats as required. Wrapped around with XPS insulation and PPC aluminium flashings.
- Standard clear double-glazed units with a variety of low-E coating to give a minimum centre pane U-value of 1.1 W/m²K.
- All glass is safety glass in either toughened or heat-strengthened laminate.
- Options include low iron glass, solar control coatings along with acoustic or security interlayers.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Framing. |
Material | Glass Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Size | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Product performance | |
Whole window U-value | To BS EN 10077, <1.6 W/m²K. |
Frame | |
Material | Aluminium.Manufacturer guidanceThermally broken aluminium profile with fully cleated corners. Reinforced with stainless steel flats as required. Wrapped around with XPS insulation and PPC aluminium flashings. |
Finish | |
Coating | Powder coating. |
Colour | Guidance for specification option: Insert requirements; any standard RAL colour. |
Film thickness (minimum) | Manufacturer's standard. |
Glazing or infill | |
Type | Toughened safety glass.Heat-strengthened laminate safety glass.Other.Guidance for specification option: Consult manufacturer for alternatives and insert requirements. Options include low iron glass, along with acoustic or security interlayers. See Glazing or infill - Coating below for further options. |
Construction | Double glazed.Manufacturer guidanceConsult manufacturer for further details. Glass thickness is application-dependent. |
Colour | Clear. |
Coating | Low-E to achieve minimum centre pane U-value.Guidance for specification option: Standard. Solar control. |
Operation | |
Type | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Control | Via remotely located controller and controlled by dead-man operation.External control through rain, wind or light sensors.External control through biometric device.External control through remote-control handset.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceSee also Power supply for UPS option. |
Power supply | Standard. Uninterrupted power supply (UPS). Guidance for specification option: Achieved by installing a battery backup to allow for operation even during power outage. |
Ironmongery | All fittings in aluminium, stainless steel (304), printed from ABS material or other non-corrosive material. Guidance for specification option: Consult manufacturer for details as required. |
Air permeability | To BS EN 12207, Class 4. |
Resistance to wind load | To BS EN 12210, Class 5C. |
Watertightness | To BS EN 12208, E1200. |
Performance characteristics | CWCT classification (TN92): Class 2 (if four-edge supported and panels <4.5 m²). |
Acoustic performance | To BS EN 10140, 38 dB. |
Security | RC2. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Glass Aluminium |
Third party certifications
Weathertightness Testing
Hinge Roofligt - System Report
