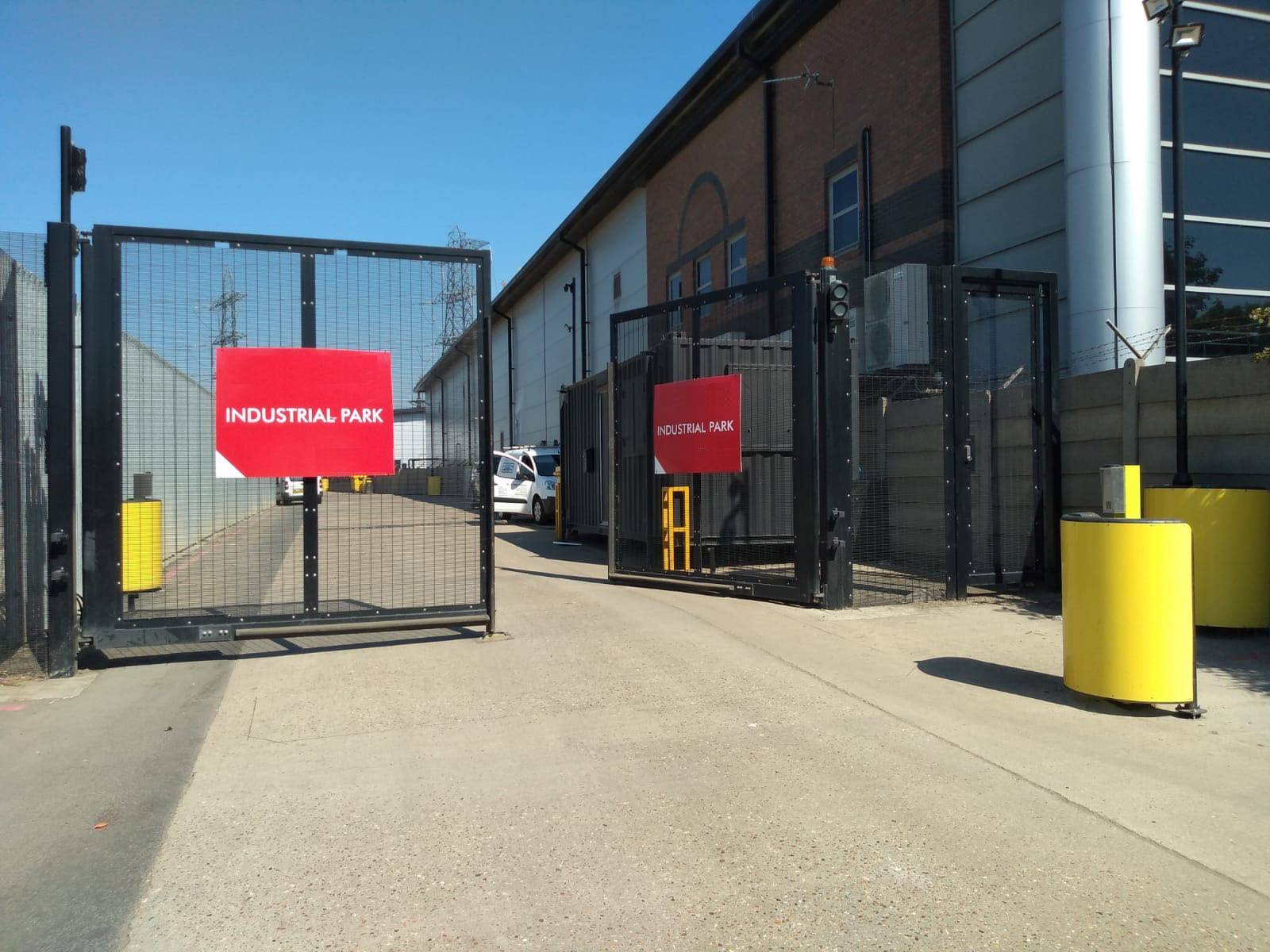

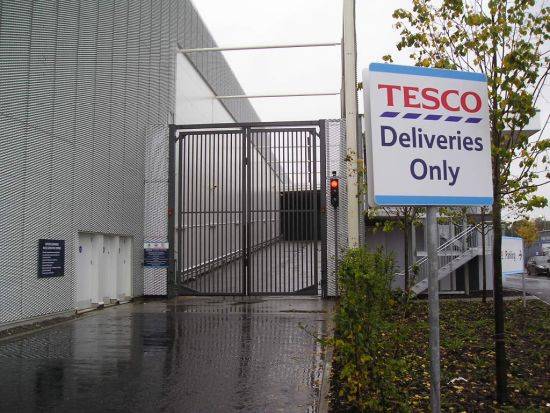

Hinged/ Swing Automatic Vehicle Gates - Hinged/Swing Automatic Vehicle Gate

Verified by manufacturer 20 days ago

Frontier Pitts Ltd

Hinged/ swing automatic vehicle gates. Security Hinged Gate - not impact rated.

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for controlling vehicle access in factories and commercial premises, banks, embassies, warehouses and distribution centres, hospitals, airports and transport terminals.

Description

Automatic hinged and swing gates are designed to provide a high degree of security within a fence line where the runback required for a sliding gate installation is not available. A choice of automation depending on the size of the gate: Gate back actuators (hydraulic), Dutyman actuators (electro-mechanical) and underground Trojan actuators (hydraulic). Heavy-duty rams with PLC-controlled slowdown to ensure quick and safe operation. Operational speed is drive dependent. Contact manufacturer for details.


Features and benefits:

  • Can be custom made designed to match project requirements.
  • Compliant with BS EN 13849.

General information

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Q40/45 Gates

Q40/570 Gates

Product range

Perimeter Security Range

Specification data - Carbon steel gates

Standard

To BS EN 13241-1:2003 and BS EN 1627:2021.

Dimensions

-

Span

-

Manufacturer guidance

Insert requirement.

  • Hinged single leaf: Available up to 5000 mm.
  • Hinged double leaf: Available up to 10 000 mm.

Height

-

Manufacturer guidance

2400 mm (standard), bespoke available . Insert requirement.

Posts

Square, 240 mm.

Gate leaves

Bar.

Bar and weldmesh infill.

Ornate.

Palisade.

Perforated steel sheet.

Sheet.

Special order.

Guidance for specification option:

Contact manufacturer's technical sales department and insert requirements.

Weldmesh.

Wooden cladded gate.

Hardware

-

Securing

Locking bolt.

Shoot bolt.

Drop bolt.

Operating

Electro mechanical - dutyman actuator.

Hydraulically driven - trojan actuator.

Finish as delivered

-

Worked finish

Shot blasted.

Applied finish

Polyurethane painted.

Guidance for specification option:

Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Access control

ANPR – Automatic number plate recognition

Audio intercom

Card reader

Digital keypad

GSM intercom

Show more

Accessories

None.

100 mm diameter red/ green LED traffic light head with monitored safety circuit.

Biodegradable oil.

Control pedestal – dual height.

Control pedestal – HGV height.

Show more

Colour

-

Manufacturer guidance

Insert BS or RAL requirement.

Top protection

Not required.

Anti-climb rotating strip.

Anti-climb serrated edges.

Door leaves

2.4 x 5 m.

Guidance for specification option:

Hinged single leaf, standard height.

2.4 x 10 m.

Guidance for specification option:

Hinged single leaf, maximum height.

5 x 5 m.

Guidance for specification option:

Hinged double leaf, standard height.

5 x 10 m.

Guidance for specification option:

Hinged double leaf, maximum height.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
