Honeycomb Panel

Verified by manufacturer 8 days ago

Mayplas

Honeycomb partition panel.

Jump to:
+44 (0)161 447 8320 Website

Application

Suited to the commercial interior fit out industry.

Description

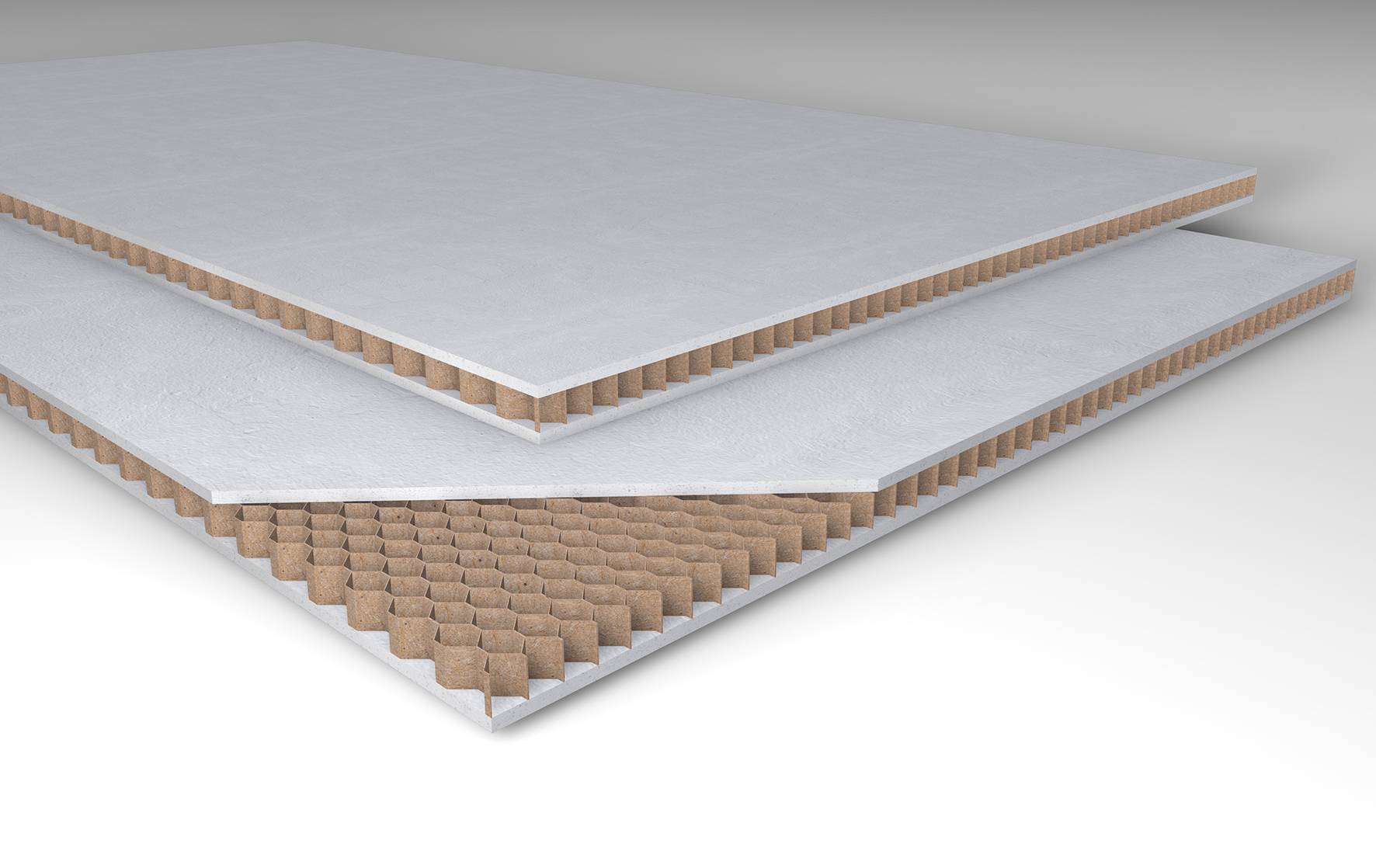

Mayplas Honeycomb Panel is a lightweight and robust partition panel that is ideally suited to the commercial interior fit out industry. Mayplas Honeycomb Panel is manufactured using a paper based honeycomb core which is factory finished with a 9.5 mm gypsum based board on both surfaces providing a sandwich panel type construction.

Features and benefits:

  • Overall Thickness: 46 mm.
  • Outer Surface: 9.5 mm Gypsum Based Board (to both surfaces).
  • Inner Core: 27 mm 100% Recycled Honeycomb Core (25 mm Cell Size).

General information

Color

White

Finish

Smooth

Material

Plasterboard

Paper

Shape

Rectangle

Length

2700 mm

2400 mm

3000 mm

Width

1200 mm

Uniclass

Pr_25_71_35_63 Plasterboard panelsPrimary

CAWS

K10/30 Metal stud

K10/401 Gypsum plasterboard

Specification data - Plasterboard panels

Materials

Plasterboard and honeycomb paperboard core.

Panel thickness

46 mm.

Panel height

2400 mm.
2700 mm.
3000 mm.

Panel width

1200 mm.

Sustainability data

Material

Plasterboard
Paper

Literature

HONEYCOMB PANEL

HONEYCOMB PANEL
