Watertight horizontal-plane deck joint system with up to 100% (+/-50%) joint movement capability. Ideal for podium decks, stadium bowls and similar structures, including below-grade walls.

Jump to:
BOS
+44 (0) 1257 266696 Website

Application

  • Parking decks/car parks
  • Stadiums
  • Sidewalks
  • Decks
  • Mall bridge connectors
  • Ice-floors
  • Positive-side, below-grade foundation/tunnel wall joints.
  • Stair towers
  • Arenas
  • Perimeter joints
  • Roadways
  • For concrete substrates
  • For metal substrates where demolition and removal of existing embedded metal angles is not feasible or affordable.
  • Lasting replacement of tee-to-tee caulk joints in precast-concrete parking decks and stadiums.

Description

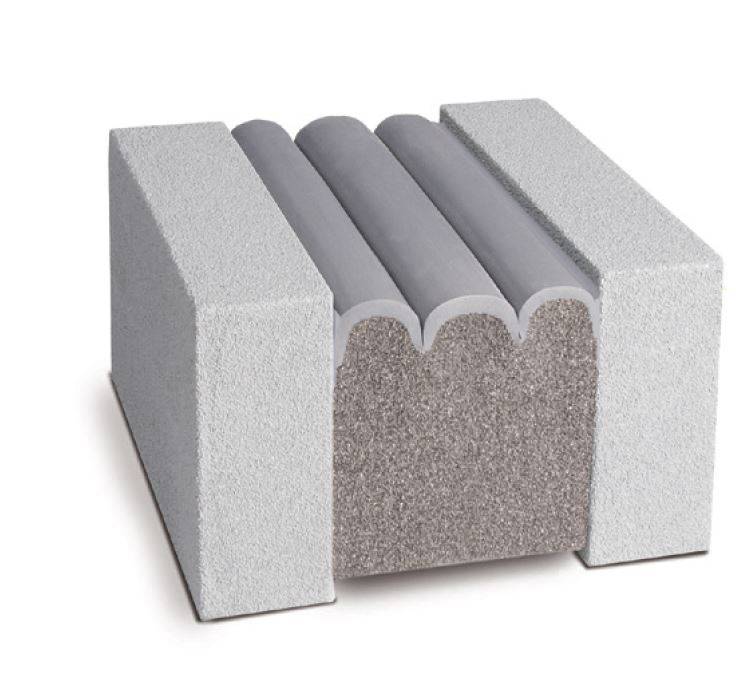

A watertight expansion joint, the DSM System is for horizontal-plane deck applications. Traffic durable, joint-face adhered and pre-compressed, DSM System is a primary seal for deck expansion joints. DSM’s toughness and resilience come from its microsphere-modified-acrylic impregnation and tensionless highway-grade silicone bellows coating.


The system is comprised of 1) pre-compressed, silicone-and-impregnated-foam hybrid; 2) field-applied epoxy adhesive on the joint faces; 3) a silicone sealant band that seals substrate voids and irregularities.


An unmatched performance record has established DSM System as a standard for parking deck and stadium expansion joint sealing. Unlike extruded rubber seals, ‘caulk-and-backer rod’ and other predecessor technologies, DSM does not suffer from compression-set nor does it rely on adhesion in tension for its performance. Highly configurable, the DSM System uniquely handles changes in plane and direction essential to ensuring continuity of seal.


Features and benefits:

  • Watertight
  • 100% (+/-50%) joint movement capability
  • UV resistant
  • Non-invasive anchoring
  • ADA Compliant
  • Low-temperature flexible, high-temperature stable
  • Tensionless bond-line and low stress silicone bellows
  • Traffic durable
  • Rapid installation–new or retrofit
  • Staged installation preserves traffic flow
  • Joint-face adhered
  • Non-staining
  • Conforms to joint edge irregularities
  • Size switching accommodates joint gap variations.

General information

Color

Grey

Beige

Black

Brown

Cream

Show more

Material

Foam

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_44_64 Plastics compressible joint fillersPrimary

CAWS

Q21/470 Expansion joints

Q21/470 Expansion joints

Specification data - Plastics compressible joint fillers

Material

Produced by infusing a cellular foam base material with a hydrophobic, microsphere-modified acrylic impregnation, and coating the surface with a high-performance silicone to suit the application.

Size

-

Manufacturer guidance

Bespoke. 12–100 mm.

Fire performance

-

Fire resistance

1 or 2-hour fire rating for joints openings from 50–250 mm with SJS-FR.

Coverplate

Standard coverplate is 10 mm aluminum

Standard coverplate is 10 mm stainless steel.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

LEED US

LEED US

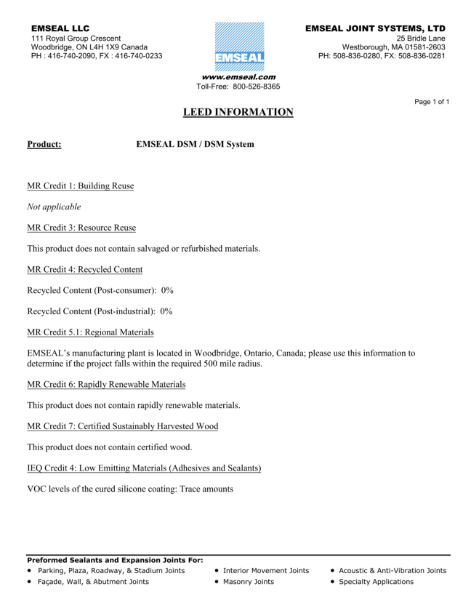

LEED Rating Emshield DSM

Literature

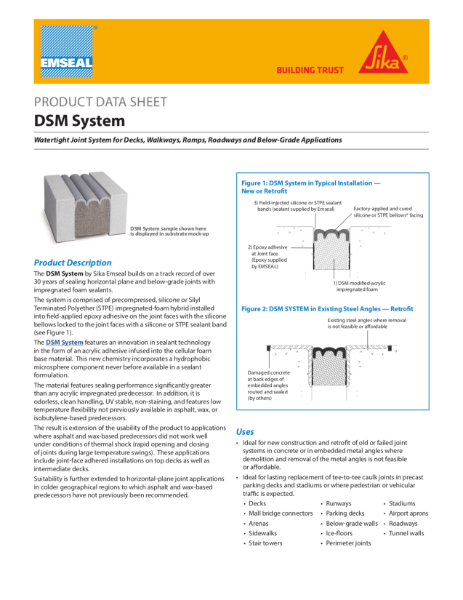

Emseal DSM System Technical Data Sheet

Emseal DSM System Technical Data Sheet

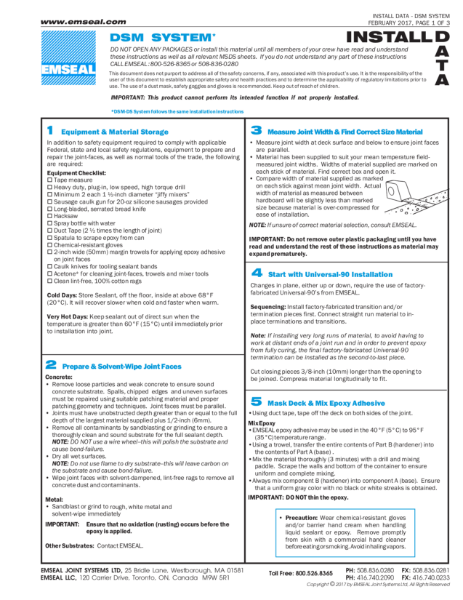

Emseal DSM System Installation Guide

Emseal DSM System Installation Guide

Case studies

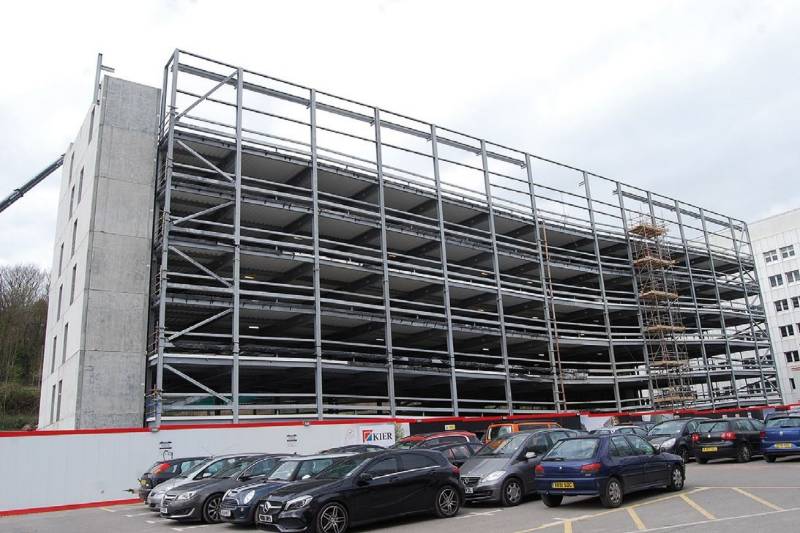

Emseal DSM System used to seal wide deck joints in Meggit Avionics new Car Park in Fareham, Hampshire

Emseal DSM System used to seal wide deck joints in Meggit Avionics new Car Park in Fareham, Hampshire

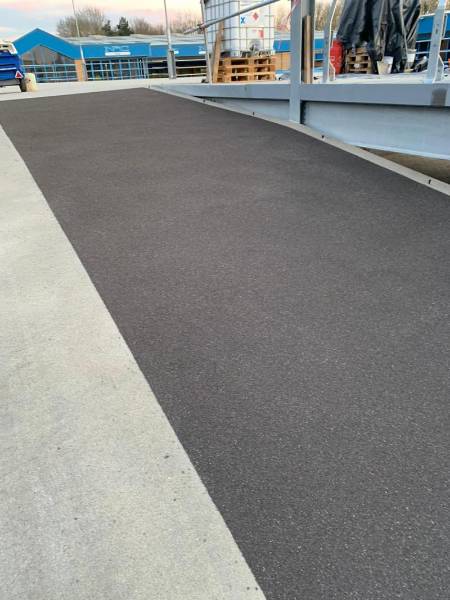

Emseal DSM System used to seal wide & high movement Deck Joints on New Brighton University Car Park

Emseal DSM System used to seal wide & high movement Deck Joints on New Brighton University Car Park
