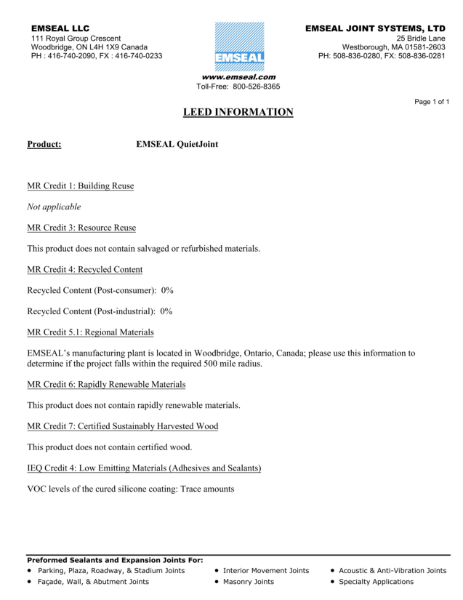

LEED US
Certificate type
A sound, draft, heat, cold, and dust blocking acoustic partition closure and joint filler for interior, non-moving joints and gaps.
For interior, non-moving joints and gaps. Particularly suited as a closure for gaps between the ends of permanent, semi-permanent, or movable partitions, window-wall, curtain-wall, heads-of-wall, heads-of-doors, and many other applications between finishings and the structure, building envelope other conditions. Applications include:

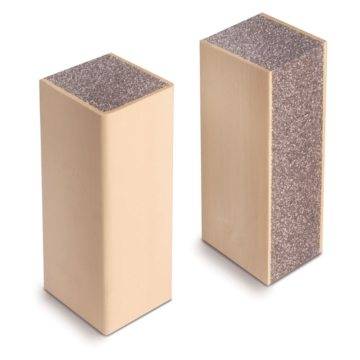

QuietJoint is a sound, draft, heat, cold, and dust blocking acoustic partition closure and joint filler for interior, non-moving joints and gaps. It is a non-mechanical, high-STC (Sound Transmission Class), non-invasively anchored closure that quickly and easily mates partitions to windows, mullions, or stud walls. It also provides a fire resistant acoustic barrier in joints and gaps, where it blocks sound transmission between rooms.
Features and benefits:
Configuration:
Color | Other Beige Black Brown Cream |
Finish | Smooth |
Material | Acrylic |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q21/470 Expansion joints Q21/470 Expansion joints |
Material | Fire-resistant foam core, silicone coated.Guidance for specification option: Foam core: custom-density open-cell foam infused with a fire-resistant, acrylic-based massloading agent. |
Size | To suit 25–120 mm gap.Guidance for specification option: Depth of seal: 50 mm. To suit 125–150 mm gap.Guidance for specification option: Depth of seal: 75 mm. Manufacturer guidanceAvailable in 1/4-inch increments for field-measured joint opening widths of 1-inch (25 mm) to 6-inch (150 mm). |
Fire performance | |
Fire resistance | To ASTM E-84-12, Smoke and Flame Spread Class A. |
R-Value | 2.848/inch of depth. Guidance for specification option:
|
Sound attenuation | Guidance for specification option:
|
Coating | Two-sided silicone. Guidance for specification option:
Paintable STPE. Guidance for specification option:
|
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
