HPL Toilet Cubicle
Verified by manufacturer 3 days ago
Traditional Hinge
Traditional Hinge
High-pressure laminate (HPL) flush fronted toilet cubicle system available in 34 laminate colours.
Application
Suitable for washroom applications with medium to high traffic.
Description
HPL toilet cubicle system available in 34 laminate colours.
Features and benefits:
- Available in 34 laminate colours.
- 44mm MDF core faced and backed with High Pressure Laminate.
- Rebated doors and pilasters for a flush fronted design.
- Choice of traditional or pivot hinge systems.
- Discreet wall channel fixings.
- Additional five material options available: solid surface, veneer, glass, ColourCoat and ColourCoat High Gloss.
General information
Color | Other Manufacturer guidanceConsult Sylan's standard laminate colour range. |
Finish | Glazed Anodized Powder-coated |
Material | High pressure laminate (HPL) Medium density fibreboard (MDF) |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Maximum: 2600mm Manufacturer guidanceOverall height. |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Classification data | |
Panels | 44 mm MDF faced and backed with 0.6 mm HPL. Guidance for specification option: Standard. Available in 34 laminate colours; consult manufacturer for more details and insert requirements. |

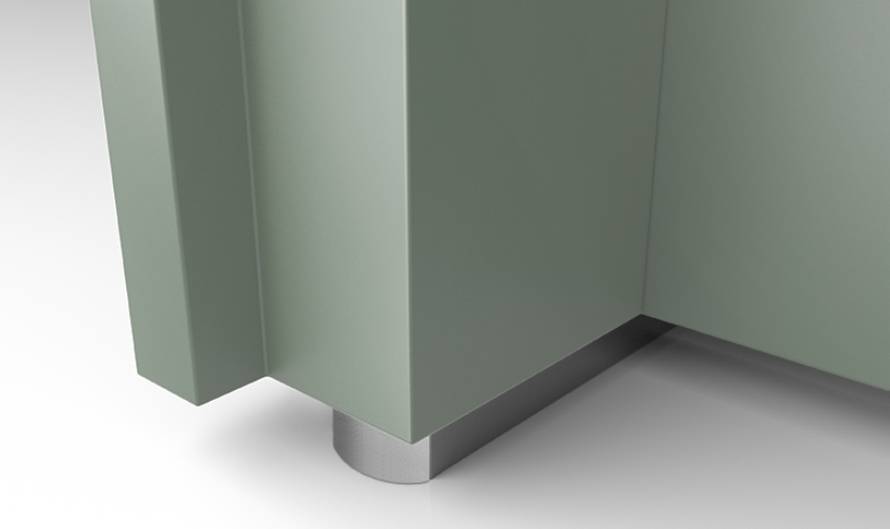

Panel supports | Satin anodized aluminium floor and ceiling blocks. Guidance for specification option: Complete with end caps. White powder-coated aluminium floor and ceiling blocks. Guidance for specification option: Complete with end caps. |
Pilasters | 44 mm MDF faced and backed with 0.6 mm HPL. Guidance for specification option: 44 mm thick. |
Doors | Manufacturer's standard. Guidance for specification option: 44 mm thick. |

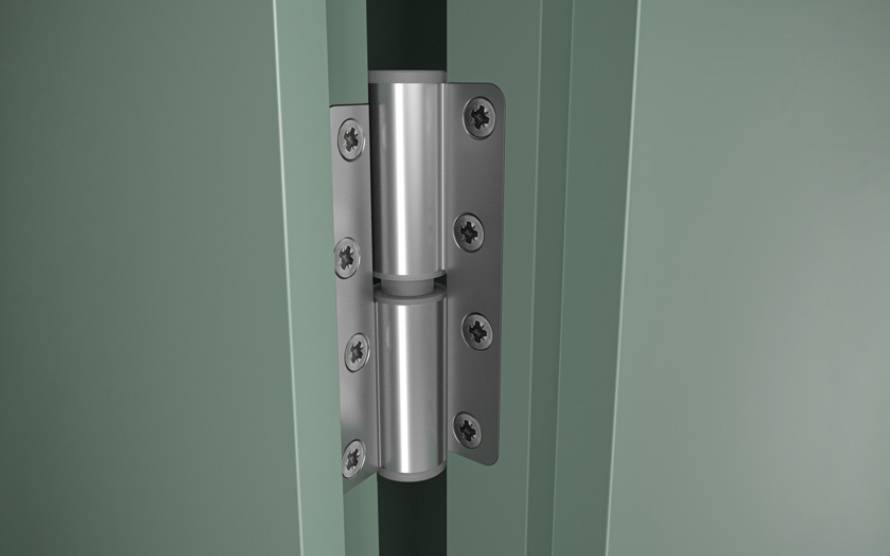

Hardware | 100 mm stainless steel rise and fall hinges. Stainless steel mortice lock. Indicator bolt with circular face plate and lever. Guidance for specification option:
|
Partition | 25 mm MDF faced and backed with 0.6 mm HPL. Guidance for specification option: Available in 34 laminate colours; consult manufacturer for more details and insert requirements. Manufacturer guidanceDivisions. |
Height | Manufacturer guidanceMaximum overall height: 2800 mm with 10 mm floor clearance and 30 mm ceiling clearance. Insert requirements. |
Sustainability data
Manufacturing plant location | |
Material | High pressure laminate (HPL) Medium density fibreboard (MDF) |
