Real Wood Veneer Toilet Cubicle
Verified by manufacturer 2 days ago

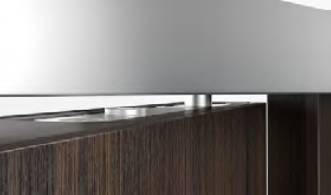

Pivot Hinge

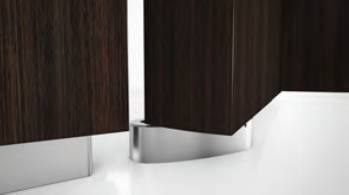

Pivot Hinge
Real wood veneer flush fronted toilet cubical system available in 11 different veneers and choice of traditional or pivot hinge systems.
Application
Suitable for washroom applications with low to medium traffic.
Description
Real wood veneer toilet cubical system.
Features and benefits:
- Available in 11 different veneers.
- 44mm MDF core faced and backed with Real Wood Veneer.
- Rebated doors and pilasters for a flush fronted design.
- Choice of traditional or pivot hinge systems.
- Discreet wall channel fixings.
- Additional five material options available: glass, solid surface, ColourCoat, ColourCoat high gloss and high pressure laminate (HPL).
General information
Color | Other Manufacturer guidanceConsult Sylan's standard Real Wood Veneer finishes. Bespoke finishes available upon request. |
Finish | Anodized Powder-coated Veneered |
Material | Wood Medium density fibreboard (MDF) |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Maximum height: 2800mm Manufacturer guidanceOverall height. |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Classification data | |
Panels | 44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer. Guidance for specification option: Standard. Available in a choice of 11 veneers; consult manufacturer for more details and insert requirements. |
Panel supports | Satin anodized aluminium floor blocks. Guidance for specification option: Complete with end caps. |
Pilasters | 44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer. Guidance for specification option: Rebated on both sides. Available in a choice of 11 veneers; consult manufacturer for more details and insert requirements. |
Doors | 44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer. Guidance for specification option: Standard. Available in a choice of 11 veneers; consult manufacturer for more details and insert requirements. |
Hardware | Hydraulic ball-bearing, self-closing and dampened stainless steel pivot hinge system. Stainless steel mortice lock. Indicator bolt with circular face plate and lever. Guidance for specification option:
|
Partition | 25 mm MDF core faced and backed with 0.6 mm Real Wood Veneer. Guidance for specification option: Available in a choice of 11 veneers; consult manufacturer for more details and insert requirements. Manufacturer guidanceDivisions. |
Headrail | 40 mm satin anodized aluminium headrail. Guidance for specification option: Incorporates hydraulic door closer and dampening mechanism. |
Height | Guidance for specification option: Maximum overall height: 2600 mm (with 20 mm floor clearance). 2700 mm height achievable subject to project review; consult manufacturer for more details and insert requirements. Manufacturer guidanceOverall height. |
Sustainability data
Manufacturing plant location | |
Material | Wood Medium density fibreboard (MDF) |
