HSE 75 Series (Stainless Steel) Single Cover

Verified by manufacturer 28 days ago

Access 360

Stainless steel, hinged floor access covers for cars and light delivery vehicles up to 5 tonne (5000 kg) pneumatic tyre wheel load.

Jump to:
+44 (0)1827 718222 Website

Application

Suitable for interior and exterior hard floors.

Description

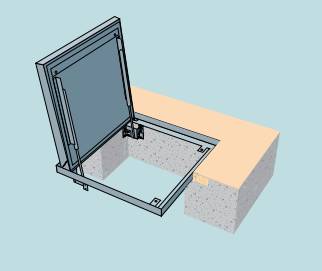

Hinged stainless steel medium duty floor access cover for up to 5000 kg pneumatic tyre wheel loads (cars and light delivery vehicles) on hard floor surfaces.


Features and benefits:

  • Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet.
  • Cover sections are tapered for easy removal and are precision-made to avoid distortion.
  • Double seals available.
  • Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
  • Easy to install ensuring minimum disruption.
  • Manufactured in accordance with BS EN ISO 9001.
  • Show edge manufactured from stainless steel with steel baseplate and reinforcement.
  • Required opening force (when filled): 20 kg.
  • Overall frame size: Clear opening size plus 147 mm.

General information

Color

Silver

Finish

Guidance for specification option:

Hard floor finishes.

Material

Stainless steel

Shape

Rectangle

Length

1147 mm

Width

1147 mm

Height

75 mm

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

P30/301 Access covers, manhole tops and frames

P31/370 Access covers/ gratings

R12/471 Access covers and frames

Specification data - Access covers, gratings and frames

Standards

To BS EN ISO 9001.

Configuration

Single cover.

Finish

Hard floor finishes.

Galvanized.

Powder coated.

Clear opening (minimum)

550 x 550 mm.

Integral accessories

None.

Sets of combined lifting/ securing keys.

Underside release latch.

Lifting points.

Guidance for specification option:

Barrell only and Inset options.

Cover and frame

Stainless steel, grade 1.4301 (304).

Guidance for specification option:

Standard.

Stainless steel, grade 1.4401 (316).

Base plate

Galvanized steel.

Guidance for specification option:

Standard.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Gas springs

Carbon steel, powder coated.

Guidance for specification option:

Standard.

Stainless steel, grade 1.4401 (316).

FireRating

None.

Three hours.

Guidance for specification option:

To BS 476-20.

Sealing

Double sealed with socket head securing bolts.

Hinges

Access covers fitted with concealed multi-link hinges.

Depth

75 mm.

Sustainability data

Material

Stainless steel

Literature

HSE 75 Series Hinged Floor Access Cover

HSE 75 Series Hinged Floor Access Cover

HSE 75 Series Hinged Floor Access Cover - Technical Data Sheet

HSE 75 Series Hinged Floor Access Cover - Technical Data Sheet
