HUKP-0101-61 - Cranked Pull Handle Stainless Steel - Door handle

Verified by manufacturer 6 days ago

Hafele UK Ltd

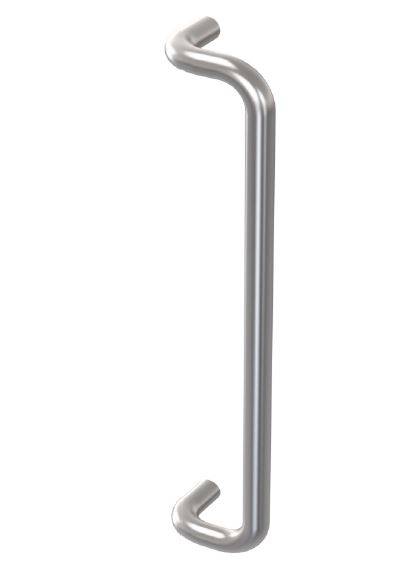

Grade 316L stainless steel cranked pull handle.

Jump to:
BOS
+44 (0)800 171 2907 Website

Application

For commercial door sets where cranked application is required.

Description

Grade 316L (1.4404) stainless steel, solid bar cranked pull handle. To suit doors up to 60 mm thick and glass doors 8–12 mm.

General information

Color

Black

Brown

Gold

Silver

Material

Stainless steel

Guidance for specification option:

Grade 316L (1.4404).

Shape

Circle

Length

300 mm

425 mm

650 mm

900 mm

1000 mm

Warranty description

25 year

Uniclass

Pr_30_36_59_64 Pull handlesPrimary

CAWS

P21/42 Pull handles

P21/641 Pull handles

Product range

Digital BIM Assets
Pull Handles

Specification data - Pull handles

Distance between centres

300 mm.

425 mm.

650 mm.

900 mm.

1000 mm.

Material and finish

Dark bronze.

Häfele black.

Matt black.

Mid bronze.

Polished brass.

Polished stainless steel.

RAL colour.

Guidance for specification option:

Insert requirement.

Satin brass.

Satin stainless steel.

Mounting

Back to back.

Bolt through.

Secret fixing.

Bar diameter

19 mm.

Guidance for specification option:

Available in 225–1500 mm lengths.

25 mm.

Guidance for specification option:

Available in 300–1500 mm lengths.

32 mm.

Guidance for specification option:

Available in 300–1800 mm lengths.

Length

-

Manufacturer guidance

Insert requirement.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

No.

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
