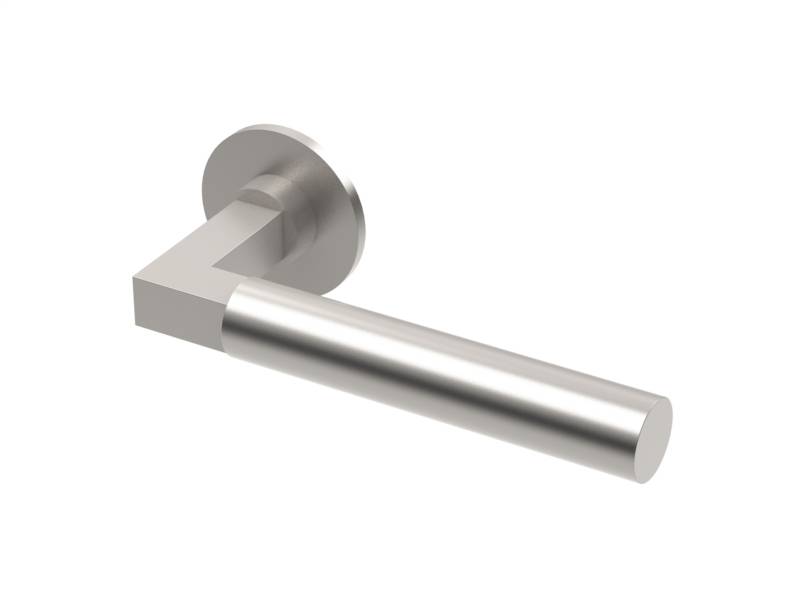

HUKP-0101-62 - Straight Lever Handle 148 mm - 22 mm Ø Straight 4 mm rose SSS - Door handle

Verified by manufacturer 2 months ago

Hafele UK Ltd

Lever handle on rose.

Jump to:
BOS
+44 (0)800 171 2907 Website

Application

Suitable for commercial heavy duty applications .

Description

A stainless steel lever handle on rose.


Features and benefits:

  • 22 mm Ø designer lever handle in solid bar stainless steel.
  • Square elbow 15 x 15 mm.
  • Concealed bush fixing rose.
  • Un-sprung, for use with heavy duty followers.
  • 52 mm Ø and 4 mm thick rose, 38 mm c.c. for bolt through fixings.
  • To suit door thickness from 35–54 mm.
  • Manufactured to BS EN1906: 2012 Class code: 4/7/-/1/1/4/0/U.
  • 316L Grade Stainless Steel for use in corrosive environments.
  • Suitable for high frequency of use.
  • EN1634-1:2000 suitable for use on fire resisting doors.

General information

Color

Silver

Black

Guidance for specification option:

  • Matt black.
  • Hafele black.

Bronze

Guidance for specification option:

  • Mid bronze.
  • Dark bronze.

Other

Guidance for specification option:

Brass.

Manufacturer guidance

RAL colours available.

Consult manufacturer and insert requirements.

Finish

Satin

Polished

Matt

Manufacturer guidance

Other finishes available to special order.

Consult manufacturer.

Material

Stainless steel

Bronze

Brass

Length

148 mm

Width

22 mm

Guidance for specification option:

Diameter.

Warranty description

25 year

Guidance for specification option:

Performance guarantee.

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

Product range

Digital BIM Assets

Specification data - Door lever handle sets

Standard

To BS EN 1906.

Classification grades (minimum)

-

Category of use

3.

Durability

7.

Fire resistance

1.

Safety

1.

Corrosion resistance

4.

Security

0.

Type of operation

U.

Size

22 mm diameter.

Material and finish

Satin stainless steel, grade 316L.

Polished stainless steel, grade 316L.

Matt.

Mid bronze.

Dark bronze.

Polished brass.

Satin brass.

Manufacturer guidance

Other finishes available to special order.

Consult manufacturer and insert requirements.

Colour

Silver.

Matt black.

Mid bronze.

Dark bronze.

Hafele black.

Brass.

RAL.

Guidance for specification option:

Consult manufacturer and insert requirements.

Mounting

Concealed bush fixing rose.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

1.  Häfele Architectural Ironmongery Brochure
