Hush 5 kg/m² Barrier Mat - Acoustic Barrier Mat
Verified by manufacturer 2 months ago
Vinyl sound barrier mat.
Application
Suitable for use in refurbishment and new build developments, and can be used as part of a Code For Sustainable Homes compliant development.
Description
A vinyl sound barrier mat containing naturally occurring minerals. The product is free from lead, unrefined aromatic oils and bitumen, and is designed to improve the sound insulation of existing panels of metal, wood, plastic, etc., at all frequencies.
The mat is particularly effective in overcoming coincidence dip resonance, found in stiff lightweight composites such as plywood sheets and hollow core panels.
Features and benefits:
- Improves acoustic performance across all frequencies.
- Minimum thickness to ensure no severe increase to the depth of the existing construction.
- Easy to install.
- Versatile and economical.
- Can be used in refurbishment and new build developments.
- Can be used as part of a Code For Sustainable Homes compliant development.
- Building Regulations Approved Document E (E&W), Technical Handbook Section 5 (Scotland) and Technical Handbook G (Northern Ireland) compliant.
- Can achieve Robust Details Performance levels on timber frame development.
General information
Color | Black |
Material | Rubber |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 2 mm |
Uniclass | |
CAWS | K11/115 Battened plywood floating floor K11/125 Battened particleboard floating floor K11/135 Battened oriented strand board floating floor K11/145 Battened cement-bonded particleboard floating floor K11/20 Battened particleboard floating floor K11/215 Plywood floating floor K11/225 Particleboard floating floor K11/235 Oriented strand board floating floor K11/245 Cement bonded particleboard floating floor K11/25 Particleboard floating floor K11/275 Acoustic separating floor system K11/295 Floating floor system K20/150 Battened timber board floating floor K20/20 Battened timber board floating floor K21/10 Wood laminate flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/120 Battened wood flooring K21/130 Battened wood floating floor K21/140 Battened wood laminate flooring K21/145 Composite laminate flooring K21/146 Laminate flooring K21/20 Composite laminated flooring M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M42/10 Wood flooring M42/110 Wood block flooring M42/120 Mosaic parquet panel flooring M42/150 Composition block flooring M42/20 Composition block flooring M50/10 Resilient floor tiling M50/110 Resilient floor tiling M50/130 Carpet tiling M50/15 Carpet tiling M50/150 Sheeting M50/155 PVC sheet flooring in special wet areas M50/170 Carpeting M50/20 Sheeting M50/25 Carpeting |
Product range |
Specification data - Resilient layer insulation
Material | Acoustic rubber. |
Density | 5 kg/m². |
Thickness | 2 mm. |
Fire performance | Flammability: FMVSS 302 Self-extinguishing. |
Sound insulation rating | Weighted sound reduction index (Rw): 26 dB, Sound transmission class (STC): 26 dB. |
Colour: | Black. |
Hardness | Hardness: 90 Shore A. |
TensileStrength | Tensile strength: 2.6 MPa. |
Elongation at break | Elongation at break: 90%. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Rubber |
Literature

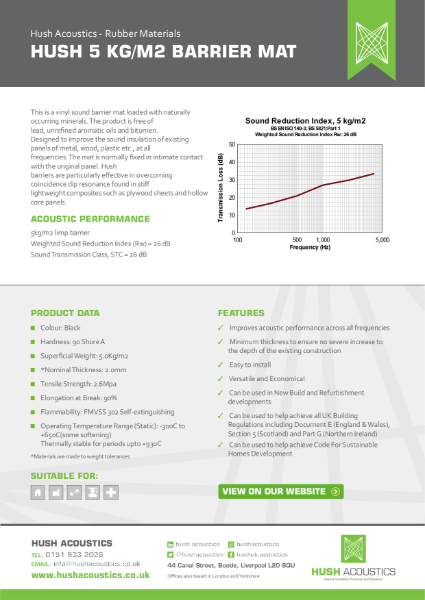

Hush 5Kg/m2 Barrier Mat
Hush Acoustics Products and Systems Brochure
