Hush Bar Plus - Resilient Bar
Verified by manufacturer 2 months ago
Purpose made advanced resilient bar system.
Application
Suitable for suspending up to 50 kg/m².
Description
Hush Bar Plus resilient bars are suitable for suspending up to 50 kg/m², and provide excellent acoustical performance.

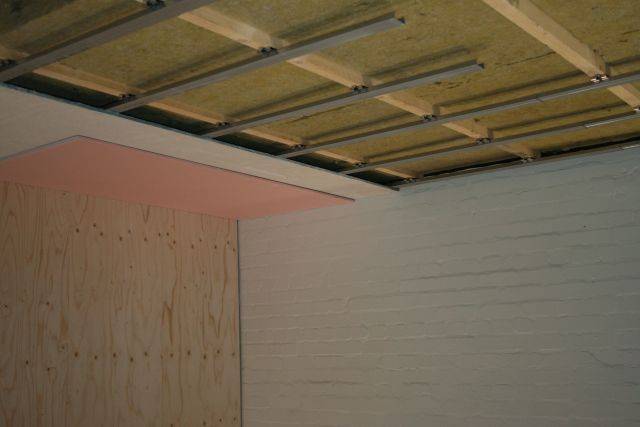

Hush Bar Plus system is screw fixed to the underside of joists at 450 mm centres, running at 90º to the direction of the joists. The system comprises metal bars, supplied in packs of 12 pieces with metal clips and connectors to suit.
General information
Color | Silver |
Material | Metal |
Shape | Rectangle |
Length | 2400 mm |
Width | 55 mm |
Height | 25 mm |
Uniclass | |
CAWS | K10/245 Ceiling lining on timber K11/275 Acoustic separating floor system K11/295 Floating floor system |
Product range |
Specification data - Resilient bars
Material | Metal bars. |
Size | 25 x 2400 mm.Guidance for specification option: D x L. Manufacturer guidanceThe bars are supplied in packs of 12 pieces. |
Suspension | 50 kg/m² (maximum). |
Fixing | Screw fixed at 450 mm centres. Guidance for specification option: HUSH-Bar Plus system is screw fixed to the underside of joists at 450 mm centres, running at 90º to the direction of the joists. |
Integral accessories | Metal clips and connectors. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Metal |
Recyclability | 100% |
Literature
Hush Bar Plus Resilient Bar System
