IAE PlasProtek Bollard

Verified by manufacturer 19 days ago

IAE Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Highly visible protection bollard for demarcation and safety.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

Suitable for industrial and commercial environments, IAE’s PlasProtek Plastic Bollard is particularly suitable for protecting pedestrian walkways and equipment.


The plastic sleeved steel core bollard provides a highly visible barrier which reduces the risk of both physical injury to staff and damage to machinery.


The bollards are suitable for use in warehouses, manufacturing facilities and distribution centres.

Description

Key points:

  • High visibility protection bollard
  • Replaceable plastic sleeve
  • Fixed steel core
  • Shock absorbing air gap
  • Available in high volume


Details:

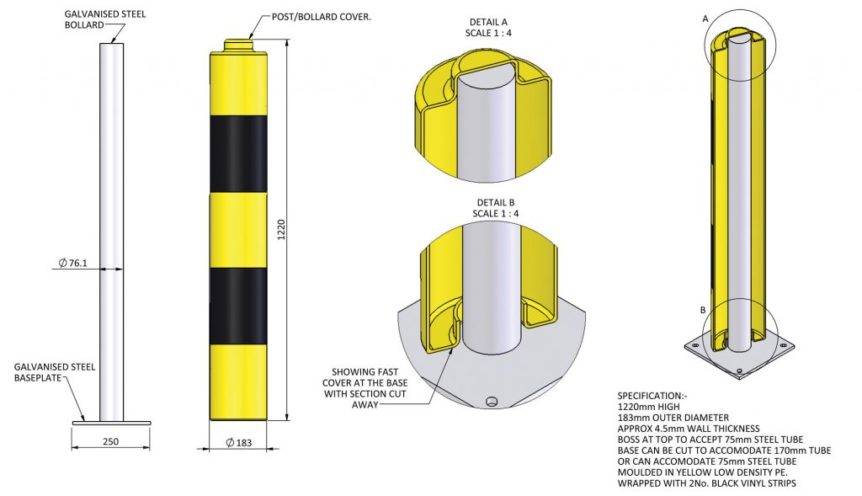

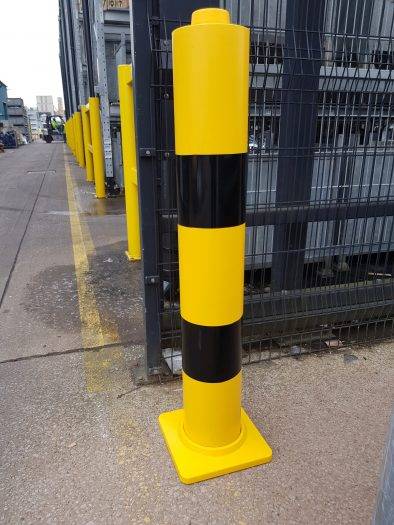

IAE’s PlasProtek Bollard is a plastic sleeved steel core unit for protecting pedestrian zones and equipment.


The PlasProtek bollard unit is made up of a tubular steel core welded to a bolt down base plate, with a removable LDPE plastic cover sleeve.


The tubular steel core is 76 mm diameter circular hollow section.


The cover sleeve is 1200 mm high and 183 mm in diameter.


These dimensions leave an air gap between the steel core and outer sleeve that allows a measure of shock absorption, so that light impacts don't damage the centre core or the ground fixings, requiring expensive replacement and repair work.


The sleeve is left loose to rotate freely around the core allowing glancing blows roll off without damaging the inner core.


The sleeve is bright yellow and includes 2no. black bands for maximum visibility.


If the sleeve is scratched or damaged, it can be simply slid off and replaced with a new one.


The bollards are typically used in groups either along pedestrian walkways to highlight and define pedestrian zones or around machinery and equipment. They can also be used near doorways and against structural columns and racking to highlight edges and guard against impact.


The bollards are an effective way to minimise the risk of injury to workers and minimise the risk of damage to equipment and buildings.


Specifying IAE’s PlasProtek Bollard:


The PlasProtek Bollard is an exclusive product to IAE’s Industrial Fit Out Division.


The bollards are produced in high volume and have been installed in facilities across the UK.

General information

Color

Yellow

Black

Finish

Galvanized

Material

Steel

Low density polyethylene (LDPE)

Shape

Circle

Length

1220 mm

Width

183 mm

Manufacturer guidance

Diameter.

Height

1220 mm

Warranty description

Two year

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

Low density polyethylene.

Steel reinforcement

Tubular steel core.

Dimensions

-

Size and profile

Steel core: 76 mm diameter; Cover sleeve: 183 mm diameter.

Height

1220 mm.

Top profile

Stepped.

Base

Baseplate, 250 x 250 mm.

Manufacturer guidance

Base plated for bolt down.

Finishes

-

Colour

Yellow.

Applied finishes

Black vinyl strips.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/kg

Self declared

Recyclability

Highly recyclable carbon steel core

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate

Literature

IAE PlasProtek Bollard Specification Sheet

IAE PlasProtek Bollard Specification Sheet

Case studies

PlasProtek Bollard Cover Sleeve - Bristol

PlasProtek Bollard Cover Sleeve - Bristol
