IAE Zebex Perimeter Fencing - Mesh Fencing

Verified by manufacturer 19 days ago

IAE Zebex Perimeter Fencing - 1800 mm

IAE Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Weldmesh panel system ideal for perimeter fencing.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

Primarily used for perimeter fencing, IAE's Zebex fencing system is ideal for defining and securing the boundary of large properties.


The system provides a significant barrier, preventing accidental ingress, and deterring low level malicious intruders.


The system is ideal for use around large sites, such as industrial units, warehouses, distribution centres, and car parks.

Description

Key Points:


  • Weldmesh Panels.
  • 60x60 square hollow section posts.
  • Security fittings.
  • Attractive stripe effect.
  • Matching gates available.
  • Stocked in large volumes.
  • Available at short notice.


Details:


IAE’s Zebex perimeter fencing system is comprised of steel weldmesh panels clipped to steel posts.


Standard panel heights of 1800mm, 2000mm and 2400mm are available.


The weldmesh panels are made up of pre-galvanized and powder coated vertical and horizontal wires. The horizontal wires are 5mm diameter and vertical wires 4mm diameter.


The vertical wires are staggered to give a striped effect, providing a more interesting look versus standard weldmesh perimeter fencing systems.


The panel includes ‘v’ profiles pressed horizontally across the panel to increase the stiffness of the panel.


The panels are supplied with 60x60 square hollow section posts which are installed at 3030mm centres when installing on level ground.


The panels are fitted using IAE fencing clips secured with security fasteners screwed into countersunk inserts supplied fitted inside the posts.


The posts include stepping holes at 50mm and 100mm spacing to allowing full width panels to be installed on an incline up to 2 degrees. The fencing can be installed on steeper gradients by reducing the spacing of the posts and cutting panels to suit.


Product Weights:


1800H Fencing


1755H 3004L Zebex Fencing Panel = 22.66 kg

2400L Zebex Inter Post = 6.57 kg

Approx. Weight per Linear Metre = 9.68 kg/m


2000H Fencing


1970H 3004L Zebex Fencing Panel = 25.98 kg

2700L Zebex Inter Post = 7.4 kg

Approx. Weight per Linear Metre = 11.05 kg/m


2400H Fencing


2360H 3004L Zebex Fencing Panel = 30.41 kg

3150L Zebex Inter Post = 8.62 kg

Approx. Weight per Linear Metre = 12.92 kg/m


Gates:


Gates for the Zebex system are also available.


1200mm wide pedestrian gates are available from stock.


2000mm wide gate leaves are also stock, which can be used to make 4000mm wide double leaf vehicle access gates.


Bespoke gate leaves allowing for double leaf gates up to 16m can be designed and manufactured to order.


Specifying IAE Zebex Perimeter Fencing:


The Zebex fencing panel is exclusive to IAE's Fencing Division, and has been value engineered to provide a superior panel at a lower cost than similar competing panels.


Zebex panels are well stocked at IAE’s Staffordshire headquarters, meaning they can be specified with confidence on large scale development projects.

General information

Color

Green

Black

Other

Manufacturer guidance

Available in a range of colours.

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

3004 mm

Guidance for specification option:

Overall Panel Length

Manufacturer guidance

Overall

Width

40 mm

Height

1800 mm

2000 mm

2400 mm

Warranty description

Two year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Posts

60 x 60 mm square hollow section.

Guidance for specification option:

Post centres: 3030 mm.

Post foundations

-

Manufacturer guidance

Dependent on ground conditions, consult manufacturer for details and insert requirements.

Panels

4 mm verticals and 5 mm horizontals.

Fence topping

Plastic cap for posts.

System accessories

Post stepping kits.

Fence height

1800 mm.

Aperture size

195 x 24 mm.

195 x 40 mm.

Colour/ Finish:

Powder-coated.

Guidance for specification option:

Available in a range of colours, consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/kg

Self declared

Recyclability

Highly recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate

Literature

IAE Zebex 1800H Perimeter Fence Specification Sheet

IAE Zebex 1800H Perimeter Fence Specification Sheet

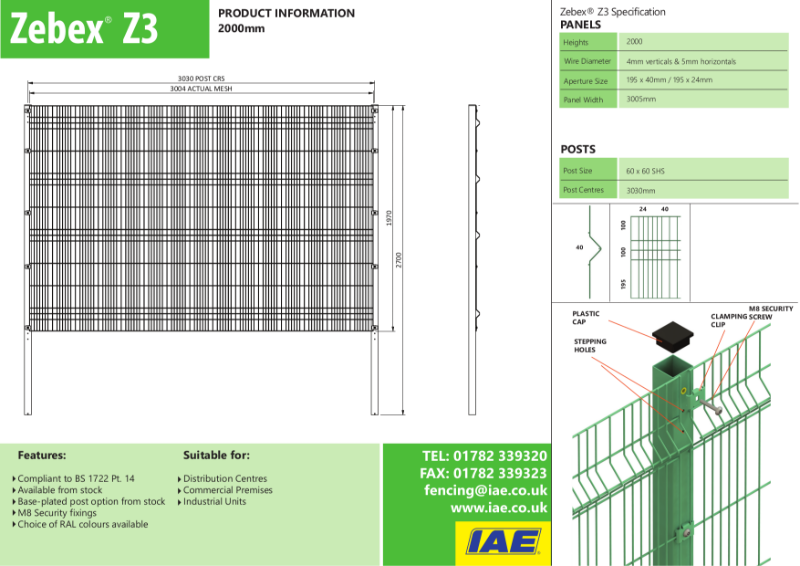

IAE Zebex 2000H Perimeter Fence Specification Sheet

IAE Zebex 2000H Perimeter Fence Specification Sheet

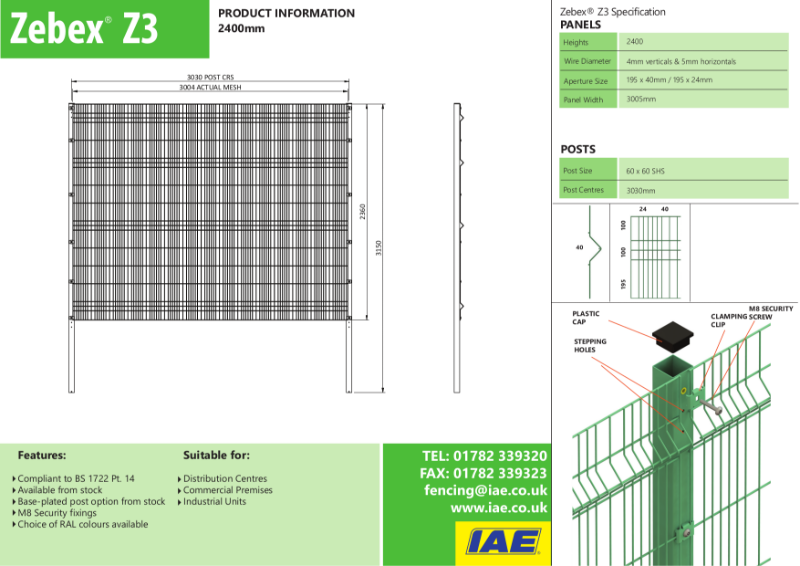

IAE Zebex 2400H Perimeter Fence Specification Sheet

IAE Zebex 2400H Perimeter Fence Specification Sheet

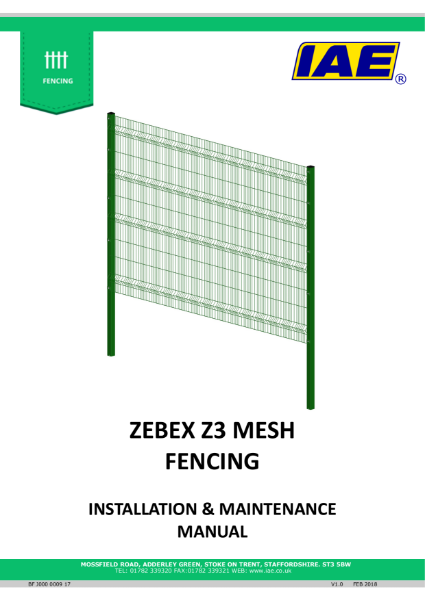

IAE Zebex Installation & Maintenance Manual

IAE Zebex Installation & Maintenance Manual

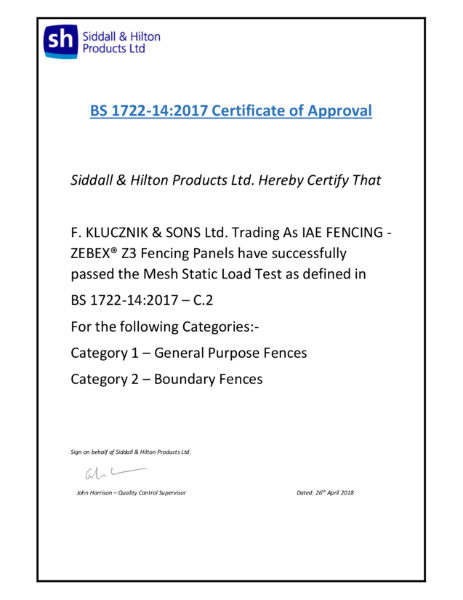

Zebex Mesh Static Load Test Certificate (BS 1722-14:2017)

Zebex Mesh Static Load Test Certificate (BS 1722-14:2017)

Case studies

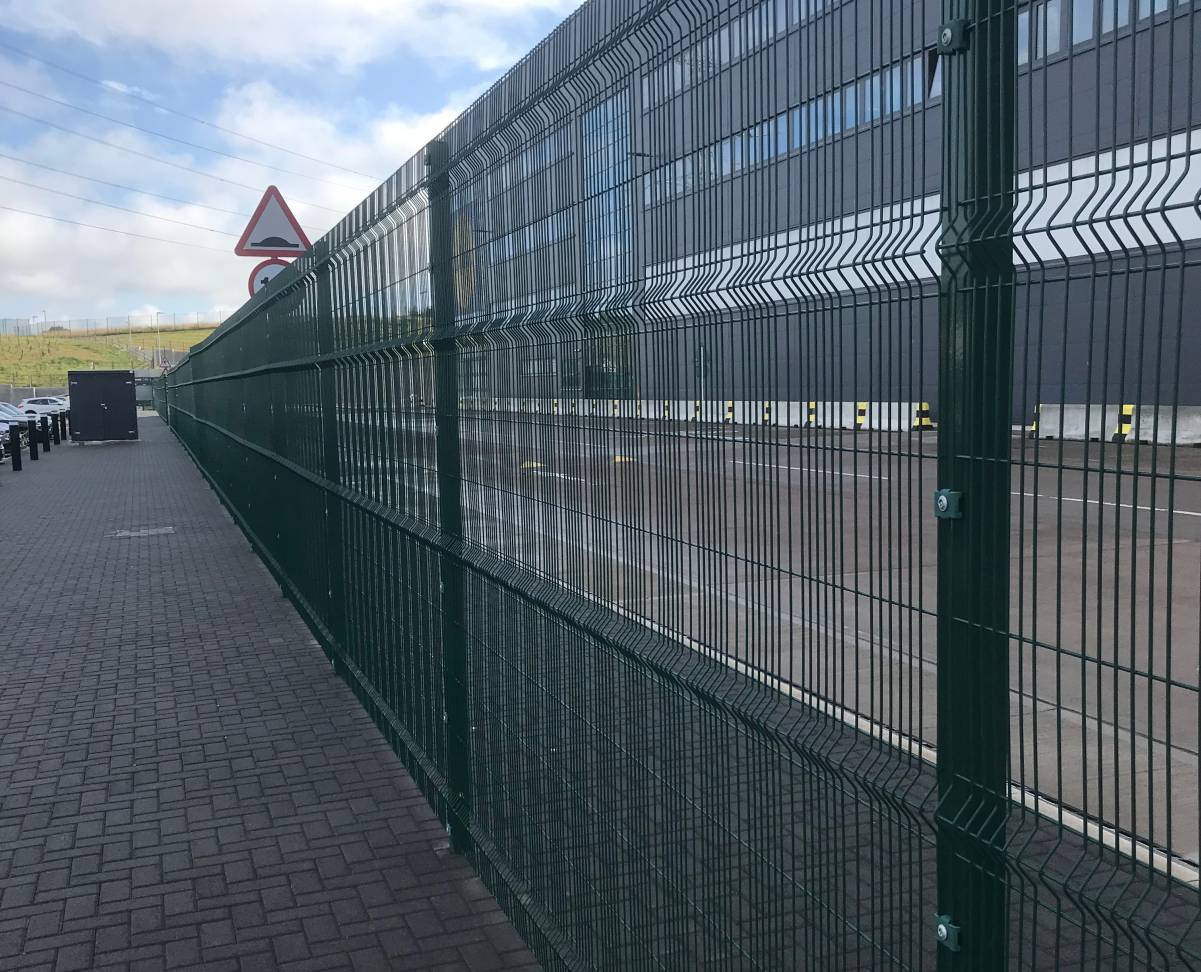

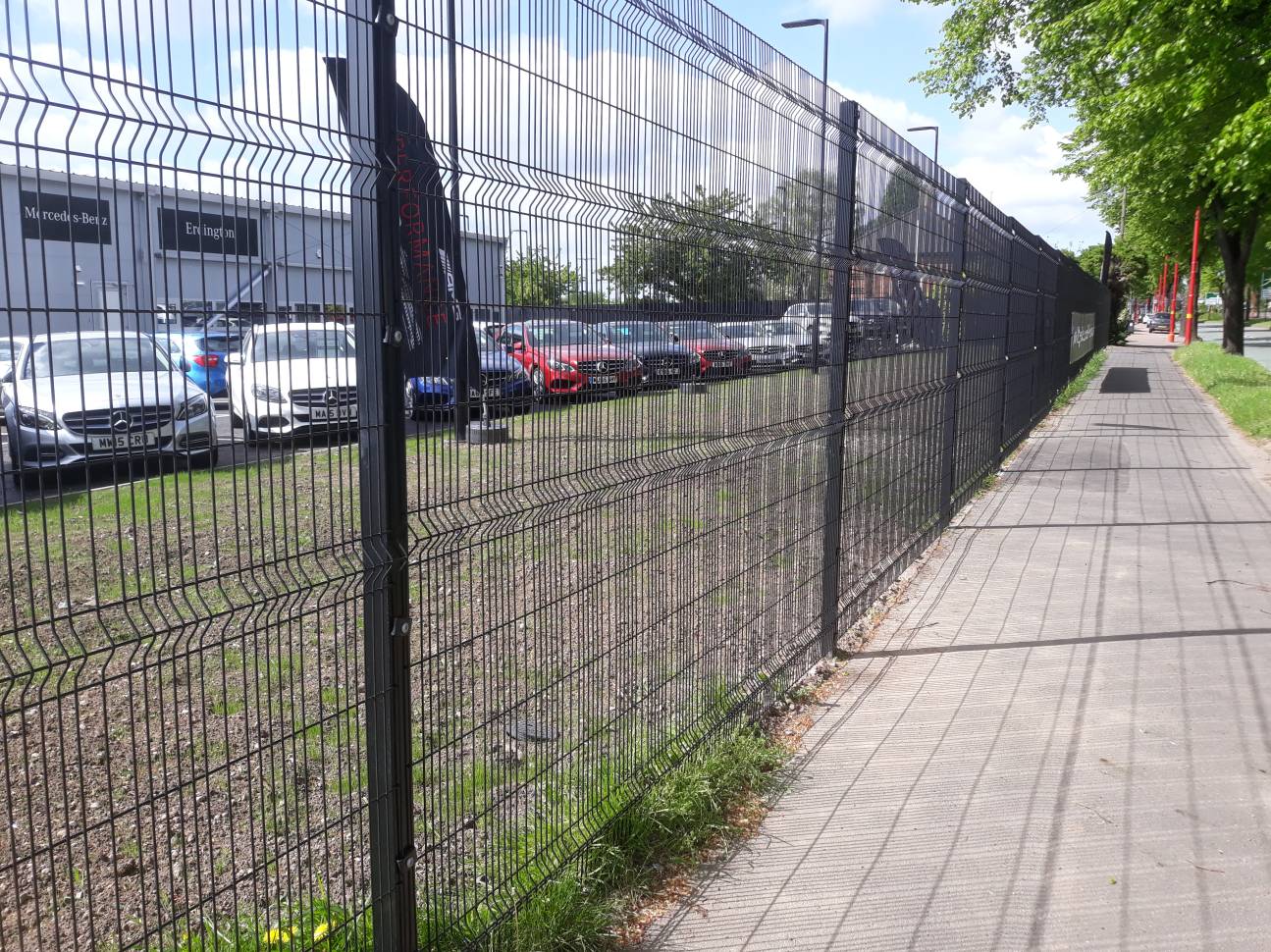

IAE Zebex Fencing - Distribution Centre Perimeter Fencing
