Infinity Curtain Track System

Verified by manufacturer 5 months ago

Tillys Interiors

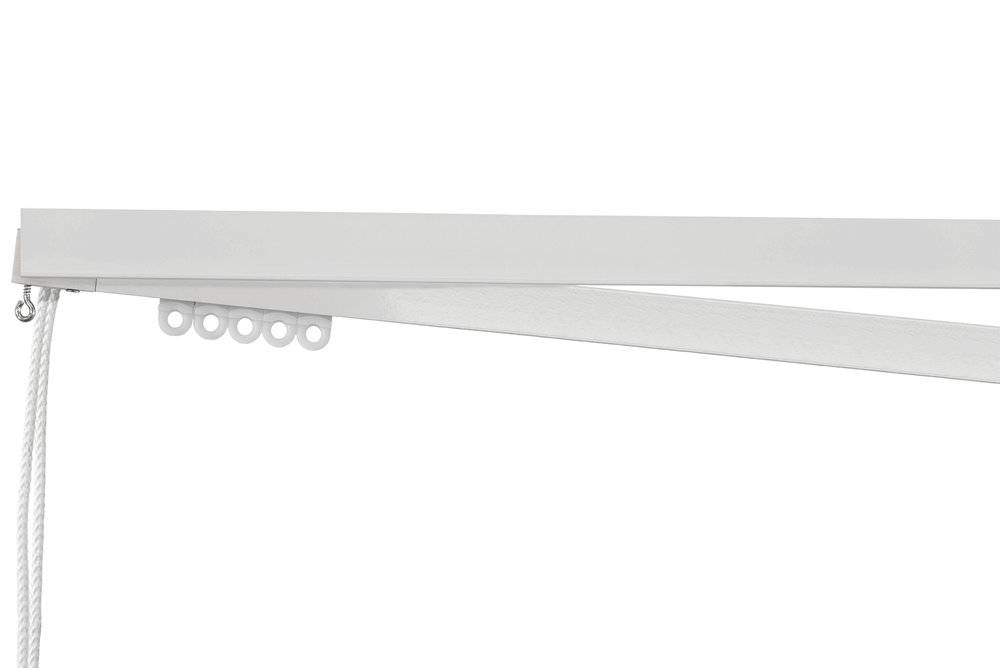

Two-part recessed curtain track system.

Jump to:
+44 (0)23 9225 2525 Website

Application

Suitable for all curtains. Ceiling fix with metal swivel clamps.

May be wall fixed with smart face fix brackets.

Description

Aura has been created with both designer and installer in mind, enabling interior designers to exploit the 'seemingly impossible', whilst maintaining excellent usability. The range has been designed for fast, straightforward installation and providing solutions where other tracks simply don't fit.


The Infinity track system is a two-part system with a recessed U channel that can be fitted within the fabric of the building, before for plastering and decoration. Once the building work has completed, the curtain track can be installed, flush to the ceiling. This provides the most discreet curtain track system possible, and allows window and door features to finish tight to the ceiling.


Features and benefits:

  • Two part system with U channel and track profile.
  • Designed for heavy weight curtains.
  • Hand or Cord Operation.
  • Option of standard or Ripple gliders.
  • 60/ 80 mm Ripple spacing.
  • U channel fixes flush into the ceiling.
  • Track may also be surface mounted with swivel clamp fixings.
  • Suitable for bay windows.
  • Angled bend - 15 cm radius.
  • Curved bend - any large radius.

General information

Color

White

Other

Guidance for specification option:

This track and channel can be painted to any RAL colour (though the standard is white).

Finish

Powder-coated

Material

Aluminium

Length

Bespoke

Width

22 mm

Height

22 mm

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

-

Manufacturer guidance

The track is made-to-measure. The maximum continuous length is 6 metres but the tracks can also be joined. Insert requirements.

Colour

White.

Operation

Hand-drawn.

Corded.

Ripple hand-drawn.

Ripple corded.

Recessed hand-drawn.

Recessed corded.

Recessed ripple hand-drawn.

Recessed ripple corded.

Integral accessories

Standard gliders.

Ripple gliders.

Bends

Not required.

15 cm radius.

Fixing:

Recess fix direct through the channel profile.

Sustainability data

Country of product manufacture

United Kingdom

Literature

Curtain Track And Blind Brochure - Aura by Tillys

Curtain Track And Blind Brochure - Aura by Tillys

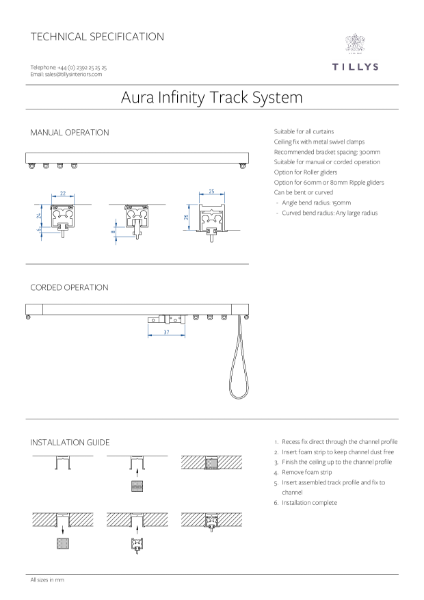

ITS22 Specification Guide

ITS22 Specification Guide
