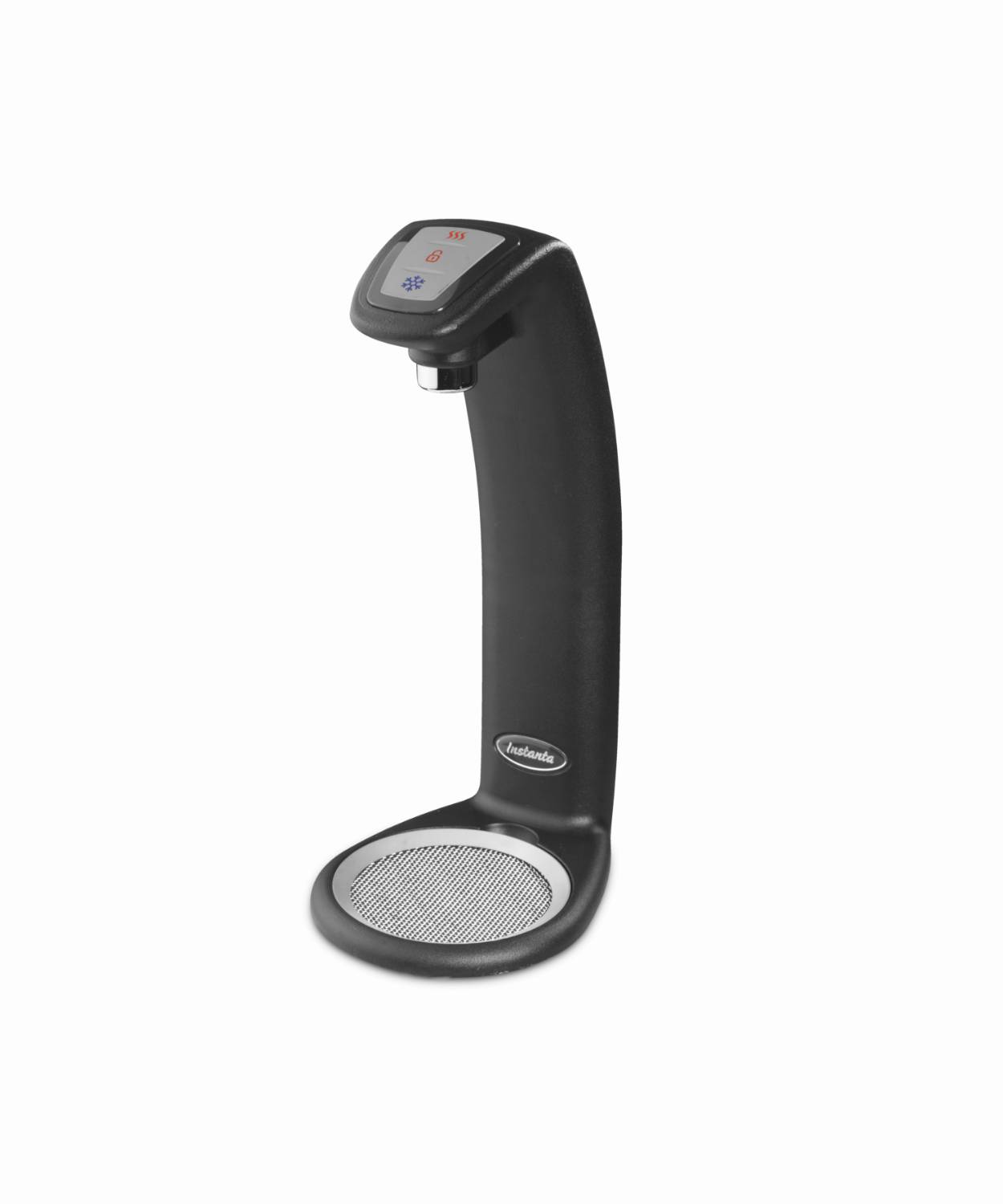

Instanta G2 InstaTap for Commercial - Boiling and Chilled - Instant water tap

Verified by manufacturer 2 months ago

Commercial Boiling 10 litre Chilled 20 litre Matt Black

Zip Water Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Instant boiling and chilled water taps which can produce 10 L boiling and 20 L chilled water.

Jump to:
BOS
+44 (0)345 6 005 005 Website

Application

For commercial applications.

Description

A range of stainless steel boiling water dispensers with 20 minute heat-up time and the capacity to pour 180 cups per hour.


Features and benefits:

  • Can produce 10 L boiling and 20 L chilled water.
  • Antimicrobial additive on the keypad that reduces 99.9% of surface bacteria, perfect for maintaining hygiene.
  • Dispenses a smooth water flow to minimize spluttering and steam.
  • The InstaTap is designed with a boiling safety lock which helps to prevent accidental dispense of boiling water and therefore lowers the risk of injuries as a result.
  • Advanced filtration; the office InstaTap features a limescale and taste and odour filter to prevent the build up of limescale and to ensure the water always tastes and smells at its best.
  • Available in four finishes.

General information

Color

Black

Silver

Finish

Polished

Matt

Material

Stainless steel

Steel

Shape

Other

Length

150 mm

Width

197 mm

Height

275 mm

364 mm

Warranty description

Two year

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/340 Appliances

N12/340 Appliances

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Instant Boiling and Chilled Tap

Specification data - Instant boiling and cold water taps

Water

Boiling and chilled.

Duty

-

Tank capacity

Boiling: 10 L.
Chilled: 20 L.

Hot cups

180 per hour.

Guidance for specification option:

Default temperature setting at 96˚C.

Cold cups

180 per hour.

Guidance for specification option:

Temperature setting 3–6˚C.

Dimensions

150 x 197 x 275 mm.

Electrical connection

-

Power

1 x 13 amp socket outlet.

Voltage

Boiling: 3 kW; 220–240 V.
Chilled: 0.185 kW; 230 V AC 50 Hz.

Water inlet

Cold feed, 1 x isolated 3/4" BSP BSP fitting.

Guidance for specification option:

Install rail 15 mm.

Safety features

Boiling safety lock.

Components

Filter.

Finish and colour

Matt, black.

Supply pressure

2–5 bar.

Cable length

1.7 m.

Guidance for specification option:

Fitted with UK standard 3-pin plug.

WaterFilterType

Limescale Taste and Odour Filter Cartridge, 3.750 L.

Nominal height

275 mm.

Standby power

Boiling: 0.85 kW/h.
Chilled: 0.12 kW/h.

Manufacturer guidance

Stand by power loss (Idle over 24hrs)


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
