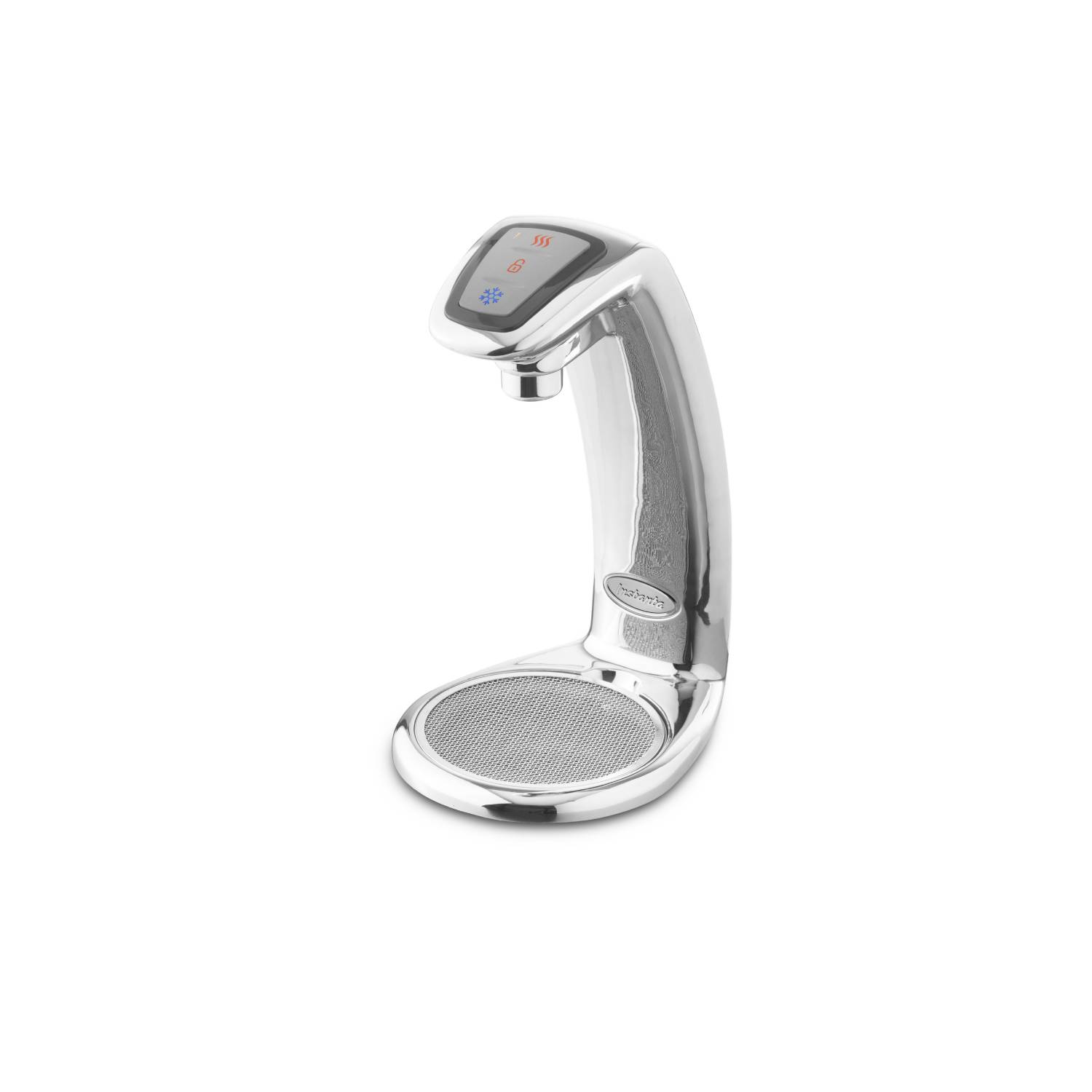

Instanta G2 InstaTap for Small Offices - Boiling and Chilled

Verified by manufacturer 6 months ago

Boiling 10 Litre Chilled 20 Litre Matt Black for Small Offices

Zip Water Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Instant boiling and chilled water taps which can produce 5 L boiling and 20 L chilled water.

Jump to:
+44 (0)345 6 005 005 Website

Application

For small offices.

Description

A stainless steel or matt black, 5 litre boiling and 20 litre chilled water dispenser with 20 minute heat-up time and the capacity to pour 135 boiling cups and 180 chilled cups per hour.


Features and benefits:

  • Antimicrobial additive on the keypad that kills 99.9% of surface bacteria, particularly suitable for maintaining hygiene.
  • Dispenses a smooth water flow to minimize spluttering and steam.
  • Designed with a boiling safety lock which helps to prevent accidental dispense of boiling water and therefore lowers the risk of injuries as a result.
  • Features a limescale and taste and odour filter to prevent the build up of limescale and to ensure water always tastes and smells at its best.
  • There are two options available: Free pour and measured dispense.

General information

Color

Black

Silver

Finish

Polished

Matt

Material

Stainless steel

Shape

Other

Length

150 mm

Width

197 mm

Height

275 mm

364 mm

Warranty description

Two year

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N12/340 Appliances

N12/340 Appliances

Specification data - Instant boiling and cold water taps

Water

Boiling and chilled.

Duty

-

Tank capacity

Boiling: 5 L.
Chilled: 20 L.

Hot cups

135 cups per hour.

Guidance for specification option:

  • Default temperature setting at 96℃.
  • Cups measured at 167 ml.

Cold cups

180 cups per hour.

Guidance for specification option:

  • Temperature setting 3–6˚C.
  • Glasses measured at 200 ml.

Dimensions

Boiling: 230 x 415 x 420 mm.
Chilled: 180 x 340 x 390 mm.

Manufacturer guidance

Command centre dimension (W x D x H).

Electrical connection

-

Power

Boiling: 2.25 kW.
Chilled: 0.185 kW.

Voltage

220–240 V.

Water inlet

Cold feed, 1 x isolated 3/4" BSP BSP fitting.

Guidance for specification option:

Install rail 15 mm.

Safety features

Boiling safety lock.

Components

Filter.

Filter

Limescale taste and odour filter cartridge, 3.750 L.

Finish and colour

Matt black.

Supply pressure

2–5 bar.

Cable length

1.7 m.

Manufacturer guidance

Boiling cable length.

Dimensions

150 x 197 x 275 mm.

Nominal height

275 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Instanta ISO 9001:2015
