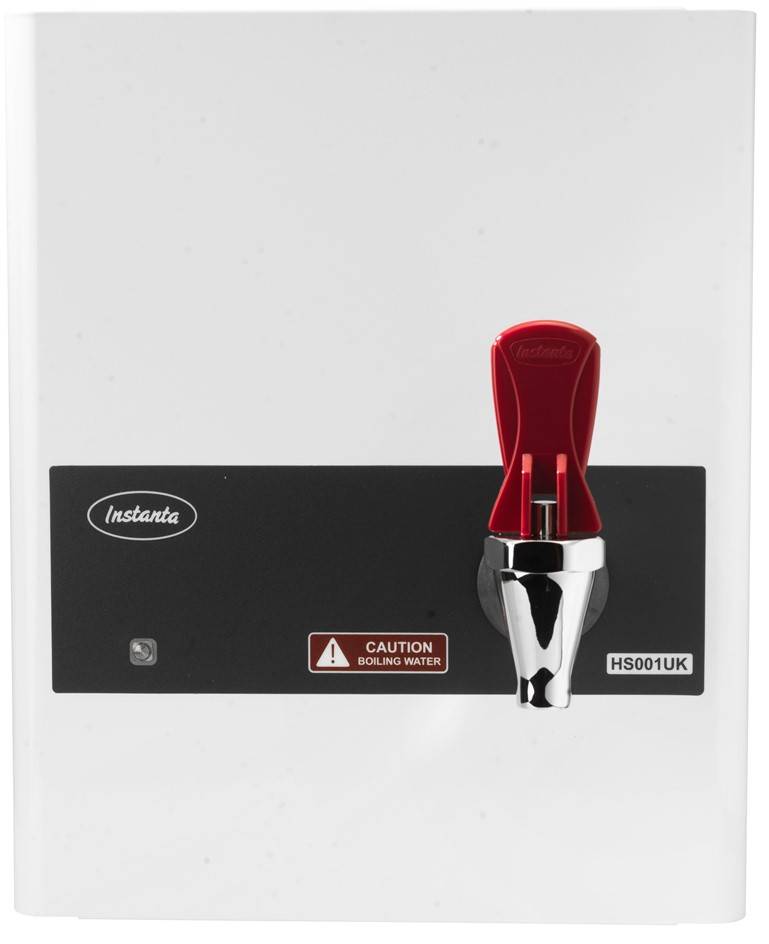

Instanta HS001 Instant On Wall Boiling Water Heater - Water Dispenser

Verified by manufacturer 2 months ago

Zip Water Third party certifications:
  • NSF International

    NSF International

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

On-wall boiling water heater, 1.5 L capacity.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for commercial applications in catering environments.

Description

1.5 L Instant on-wall boiling water heater (in white).


Features and benefits:

  • External status light to show when product is heating up and ready to use.
  • Stainless steel insulated heating chamber to ensure high performance and minimal heat loss.
  • Basic fault self-diagnostic system and duel safety protection against overfilling.
  • Built using high quality materials and parts including heavy duty non drip taps.
  • Easy access for service and cleaning to help prolong products lifespan.

General information

Color

White

Finish

Powder-coated

Material

Steel

Stainless steel

Shape

Rectangle

Length

165 mm

Width

275 mm

Height

336 mm

Warranty description

Two year

Guidance for specification option:

For parts and labour.

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

Product range

On Wall Boiling

Specification data - Instant boiling and cold water taps

Third-party certification

EMC Tested and Certified to BS standards EN 55014 and EN 61000.

Guidance for specification option:

Electrical Safety Tested - self-certified to BS standard EN 60335-1 and 2.

Water

Boiling.

Duty

-

Tank capacity

1.5 L.

Dimensions

275 x 165 x 336 mm.

Guidance for specification option:

Packed dimensions: 370 x 270 x 430.

Tap protrusion: 90 mm.

Manufacturer guidance

(width x depth x height) (of unit):

Electrical connection

-

Power

1.5 kW.

Guidance for specification option:

  • Electrical supply: single-phase, N & E (minimum break rating of 13 amp required).
  • Electrical connection: Wire into double-pole fused spare (minimum cable size: 1.5 mm²). Use of an ELCB is recommended.


Voltage

230 V.

Guidance for specification option:

(50-60 Hz.)

Water inlet

3/4" BSP.

15 mm push-fit.

Safety features

Over-boil and boil-dry protection and safety protection against overfilling.

Guidance for specification option:

  • External status light shows when product is heating up and ready to use (red light shows ‘Heating’, and green light shows ‘Ready’).
  • Basic fault diagnosis system – status light flashes.
  • Easy access for service and cleaning helps to prolong product lifespan.

Components

Tank-baffle plates.

Guidance for specification option:

Unique design aids heat recovery and reduces steam emissions to atmosphere.

Type:

Wall-mounted.

Unit weight

6.1 kg.

Guidance for specification option:

(when empty.)

Weight

9.9 kg.

Guidance for specification option:

(when full.)

Packed weight: 7.2 kg.

WaterPressureRange

2-5 bar.

Guidance for specification option:

(28-70 psi.)

Overflow

15 mm push-fit.

Guidance for specification option:

(extend if required: pipework to have a continuous fall.)

Construction

Guidance for specification option:

  • Outer fabrication (body) construction: Steel, powder coated in white.
  • Tank construction: 304 and 316 grade stainless steel insulated heating chamber to ensure high performance and minimal heat loss.
  • Tank wall thickness: 0.9 mm.
  • Built using high quality materials and parts: Including heavy-duty non-drip tap.

Performance:

Guidance for specification option:

  • Water temperature delivered: 96°C (default) – can be adjusted if required.
  • Heat up time to working temperature: 15 minutes (full tank capacity).
  • Output per hour (at default temperature setting): 15 L (higher output per hour if set at lower temperature).
  • Rapid draw-off: 1.5 L.
  • Recovery per minute: 0.25 L.
  • Stand-by power loss (idle mode): 0.03 kW/h.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

NSF International

NSF International

NSF REG 4

ISO 9001 Quality Management

ISO 9001 Quality Management

Instanta ISO 9001:2015
