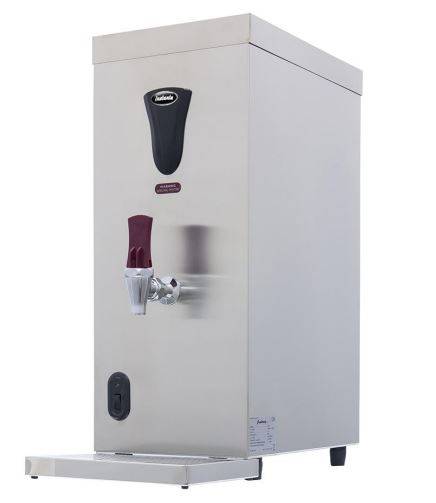

Instanta Sureflow Counter Top Boilers - Water Dispenser

Verified by manufacturer 2 months ago

Zip Water Third party certifications:
  • NSF International

    NSF International

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Counter-top, automatic-fill instant water boiler, 10 L tank capacity.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for commercial applications in catering environments.

Description

SureFlow Counter-top, automatic-fill water boiler.


Features and benefits:

  • External status light to show when product is heating up and ready to use.
  • Stainless steel insulated heating chamber to ensure high performance and minimal heat loss.
  • Basic fault self-diagnostic system and duel safety protection against overfilling.
  • Built using high quality materials and parts including heavy duty non-drip taps.
  • Easy access for service and cleaning to help prolong products lifespan.

General information

Color

Grey

Finish

Brushed

Polished

Manufacturer guidance

304 grade stainless steel (Superbrush polish).

Material

Steel

Stainless steel

Shape

Rectangle

Length

510 mm

Width

243 mm

Height

610 mm

Warranty description

Two year

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Counter Top Water Boiler and Chiller

Specification data - Instant boiling and cold water taps

Third-party certification

EMC tested and certified (EN 55014 and EN 61000).

Guidance for specification option:

  • Electrical Safety Tested and Certified to BS standard EN 60335-1 and 2.
  • WRAS approved.

Water

Boiling.

Duty

-

Tank capacity

10 L.

Dimensions

610 x 243 x 510 mm.

Guidance for specification option:

  • Packed dimensions: 735 x 330 x 570 mm.
  • Tap clearance: 190 mm.

Manufacturer guidance

(Height x width x depth) (Unit):

Electrical connection

-

Power

3 kW.

Guidance for specification option:

  • Electrical supply: Single-phase, N & E (13 A).
  • Plug type: UK standard 3-pin.
  • Fitted cable length: 1.7 m.

Voltage

220-230 V.

Guidance for specification option:

(50-60 Hz.)

Water inlet

3/4" BSP.

Safety features

Over-boil and boil-dry protection.

Components

Tank-baffle plates.

Guidance for specification option:

Unique design aids heat recovery and reduces steam emissions to atmosphere.

Type:

Countertop.

Guidance for specification option:

Economy range.

WaterPressureRange

2-7 bar.

Guidance for specification option:

(28-100 psi.)

Overflow

Front via drip-tray.

Guidance for specification option:

(Or rear using kit not supplied.)

Unit weight

12.1 kg.

Guidance for specification option:

(Empty.)

Weight

24.9 kg (full).

Guidance for specification option:

Packed weight: 16 kg.

Construction

Manufacturer’s standard.

Guidance for specification option:

Outer fabrication (body) construction: 304 grade stainless steel (Superbrush polish).

Tank construction: 304 and 316 grade stainless steel.

Tank wall thickness: 0.9 mm.

Drip-tray: 304 grade Stainless Steel – (mirror polish).

Performance:

Manufacturer’s standard.

Guidance for specification option:

  • Water temperature delivered: 96°C (default) – can be adjusted if required.
  • Heat up time to working temperature: 32 minutes (full tank capacity).
  • Output per hour (at default temperature setting): 27 L (higher output/ hour if set at lower temperature).
  • Rapid draw-off: 10 L.
  • Recovery per minute: 0.5 L.
  • Stand-by power loss (idle mode): 0.1 kW/h.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

NSF International

NSF International

NSF REG 4

ISO 9001 Quality Management

ISO 9001 Quality Management

Instanta ISO 9001:2015
